- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
50P36

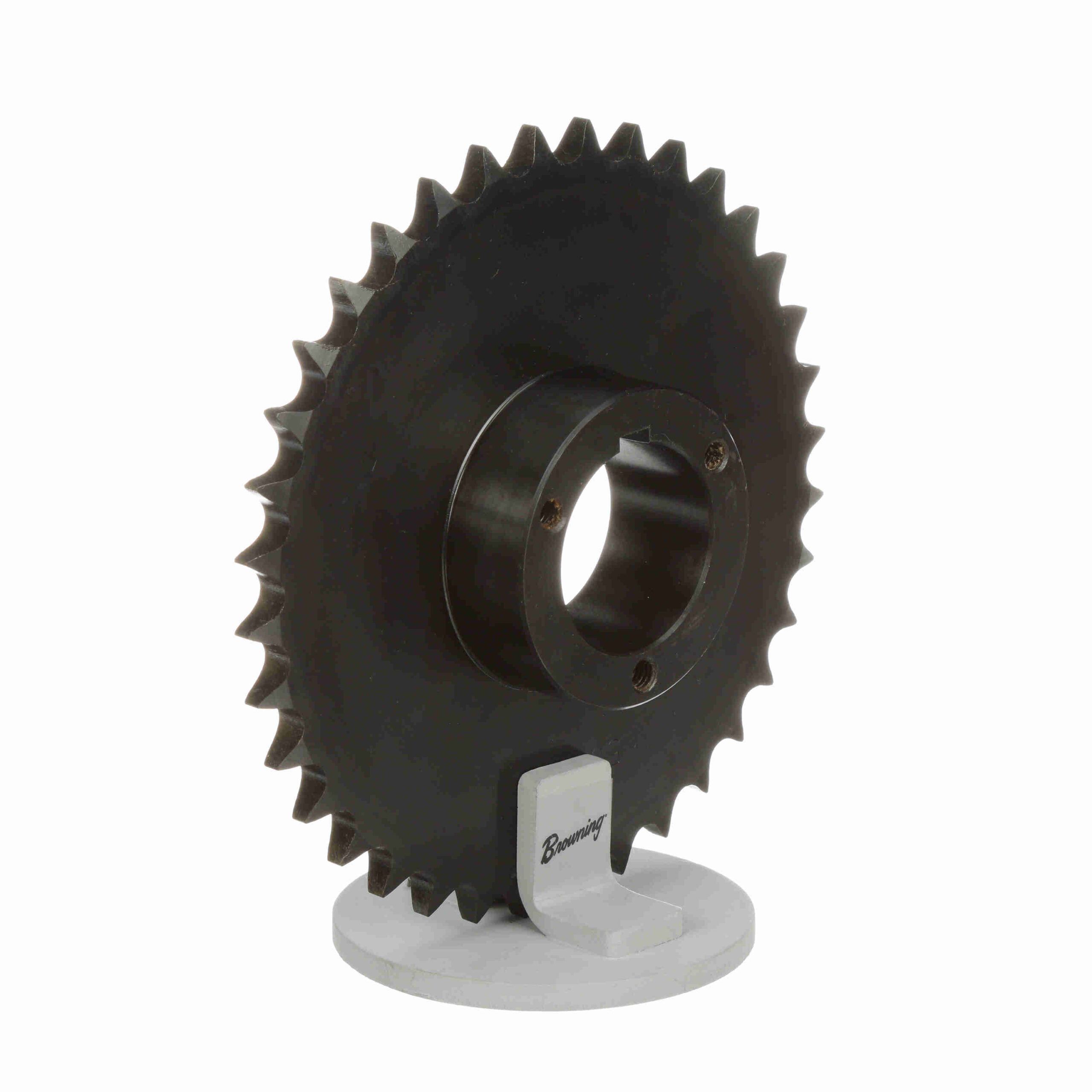

Browning Steel Bushed Bore Roller Chain Sprocket – 50P36
$269.48
Availability: 4 in stock
Availability: 4 in stock
| Chain Pitch (in): | 0.625 in | Pitch Diameter (in): | 7.171 in |
|---|---|---|---|
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
| Number of teeth: | 36 | Material: | Steel |
| Bore (Max) (in): | 1.75 in | Bore (Min) (in): | 0.5 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 7.519 in | Overall Length (in): | 2.221225 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.343 |
| Pitch Type: | Single | UPC: | 662289115655 |
| Weight: | 4.64 LB | Packaged Length: | 8.20 Inches |
| Packaged Width: | 8.00 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
