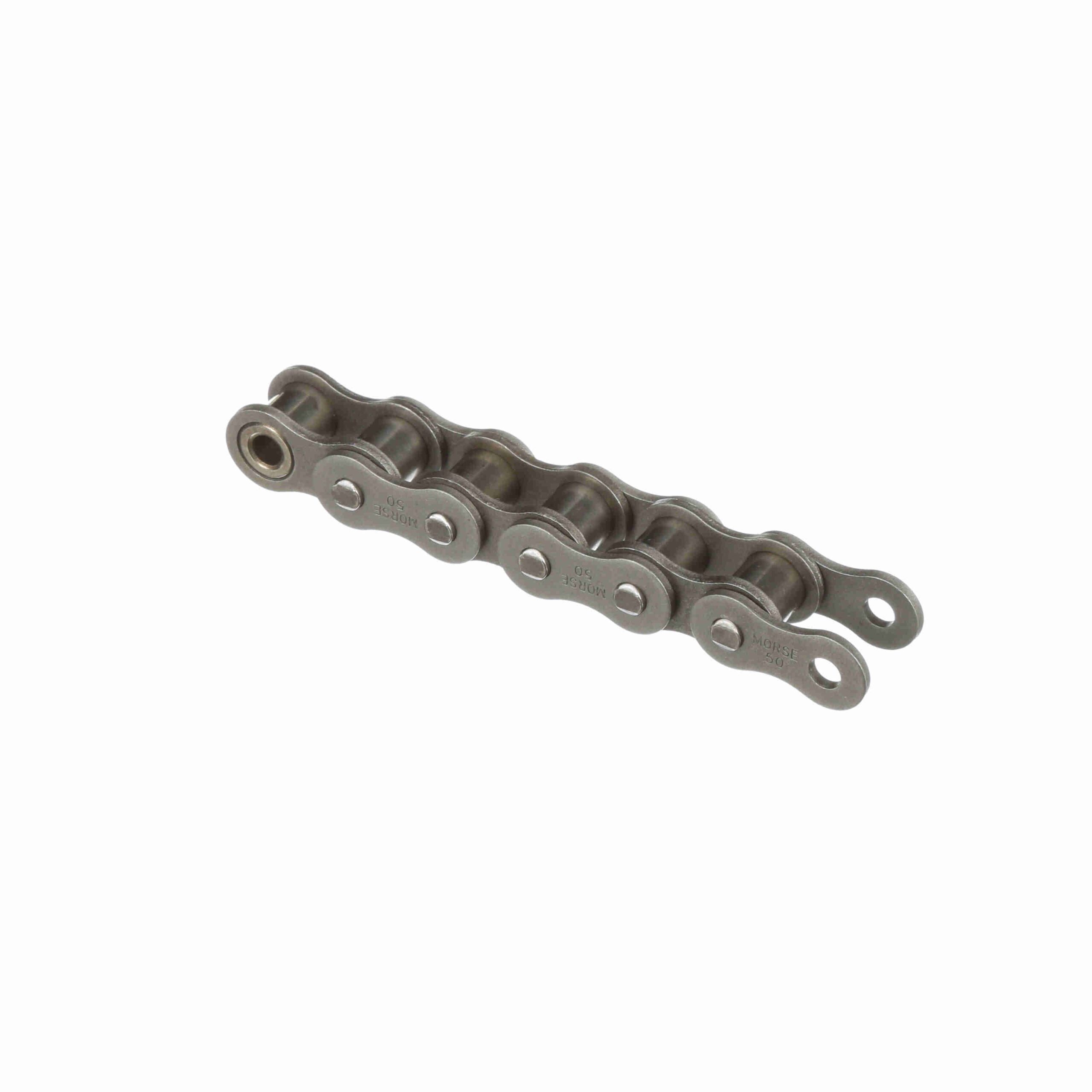

50LL R 10FT

Unmatched Quality and Performance in Morse Brand Chain
Roller chain with the self-lubricating properties of oil impregnated, sintered metal bushings to assure longer, more reliable chain service where external lubrication is prohibited or severely limited.
Available in package quantities or via quick-turnaround cut-to-length
Rigid manufacturing processes result in a fully-featured chain.

Plate Thickness:	0.08	Inside Plate Height:	0.584
Number of Connecting Links Included:	1	Chain Size:	50
Chain Construction:	Riveted	Centerline to Outside of cotter Pin:	0.46
Roller Diameter (in):	0.4 in	Material:	Steel
Average Ultimate Tensile Strength (psi):	5, 500	Roller Width (in):	0.375 in
Centerline to Opposite cotter Pin Side:	0.395	Pin Diameter (in):	0.2 in
Width Over Pins/Total Width:	0.79	Side Plate Cfg.:	Hourglass
Number of Strands/Width:	1	Chain Type:	Sintered Bushing
Chain Pitch (in):	0.625 in	Product Type:	Roller Chain
Coating:	Uncoated	Total Length:	10 FT ft
Measurement System:	Imperial	Standard Met:	ANSI B29.1
Pin Length - Riveted:	0.79	UPC:	662288400448
Weight:	0.69 LB	Packaged Length:	9.30 Inches
Packaged Width:	9.20 Inches	Packaged Height:	1.30 Inches
HTC:	7315.11.0060	Country of Origin:	Taiwan, Republic of China
