- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
50A72

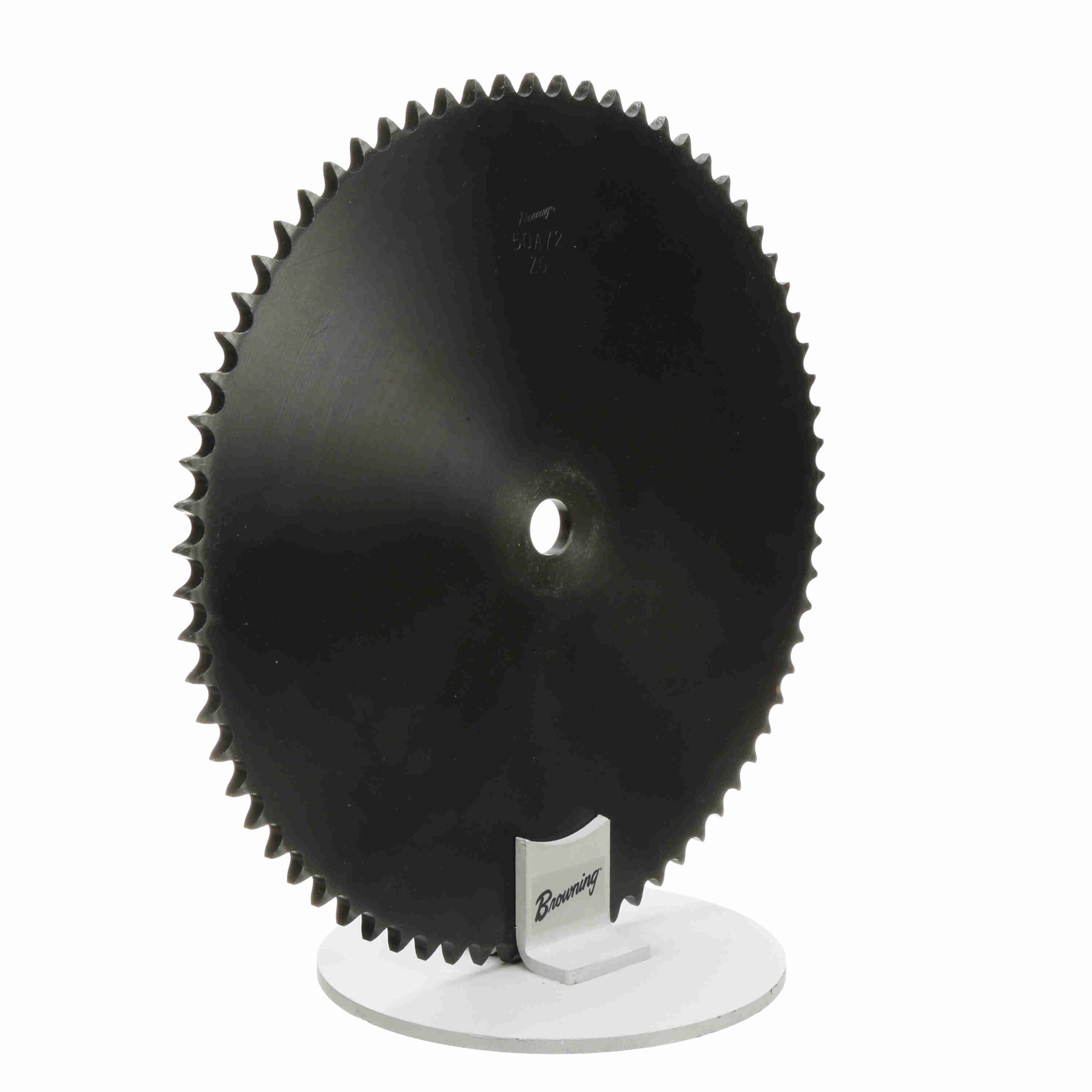

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 50A72
$153.61
Out of stock
Out of stock
| Number of teeth: | 72 | Material: | Steel |
|---|---|---|---|
| Chain Pitch (in): | 0.625 in | Product Type: | Type "A" Plate Sprocket |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore Type: | Minimum Plain Bore |
| Outside Diameter (in): | 14.69 in | Pitch Diameter (in): | 14.328491 in |
| Bore (in): | 0.9375 in | Number of Strands/Width: | 1 |
| Tooth Width (in): | 0.343 in | Hub Type: | Type A |
| Length Through Bore (in): | 0.343 in | Maximum Bore (in): | 2.5 |
| Number of Hubs: | 0 | Pitch Type: | Single |
| Hardened Teeth: | Non-Hardened Teeth | Width Across Tooth Sets: | 0.343 |
| UPC: | 662289281701 | Weight: | 15.50 LB |
| Packaged Length: | 16.30 Inches | Packaged Width: | 16.50 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
