- Single Taper Bushing: Exclusive single TorqTaper Bushing installs from driving side of the unit for easy on – easy off mounting.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Standard Seals: Commercially available double lip seals ride on plunge ground shafts.
- Options and Accessories: Complete range of motor mounts, belt guards, fan kits and backstop options.
507SMTP25B

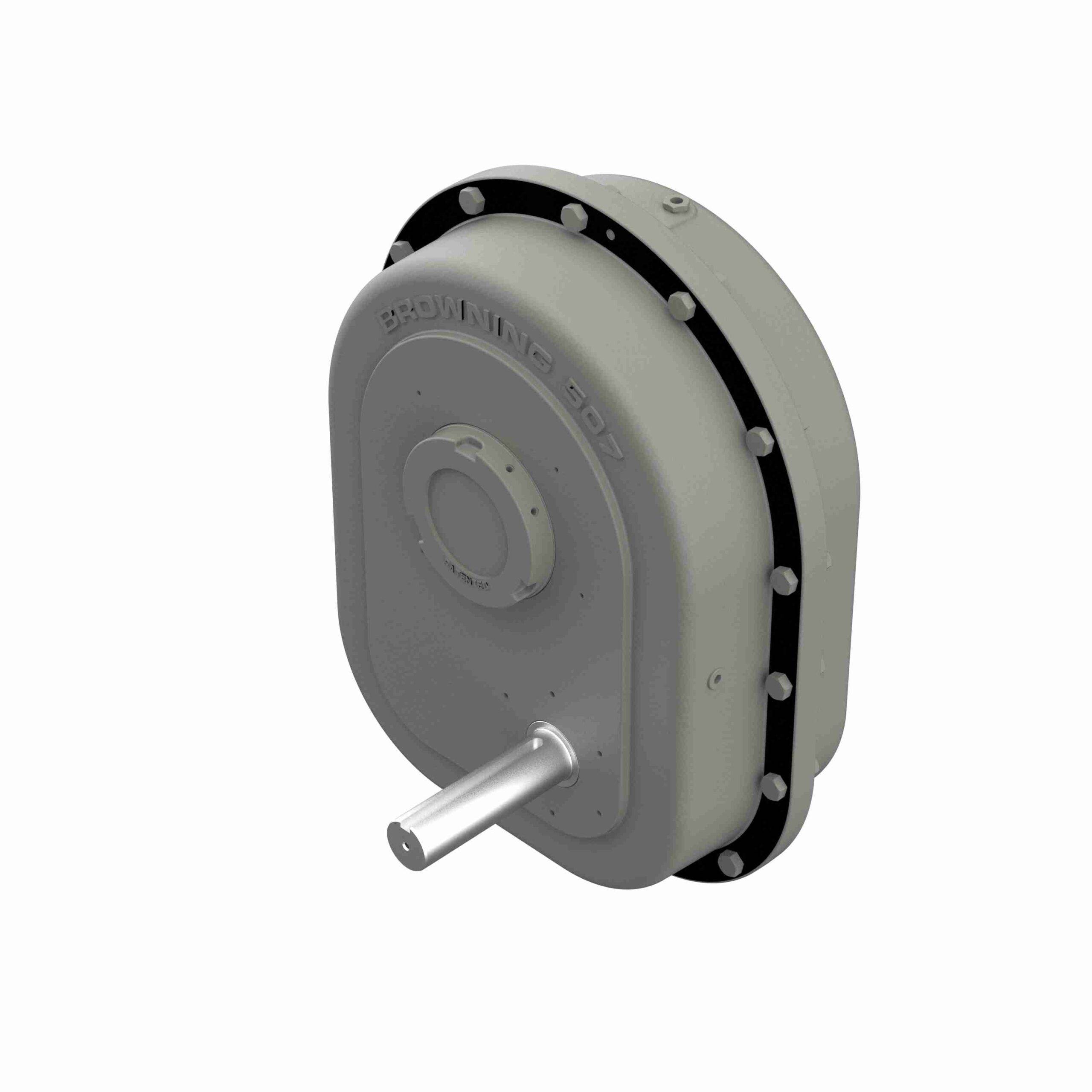

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 507SMTP25B
$107,431.30
Out of stock
Out of stock
| Input Speed: | 1750 | Ratio: | 25:1 |
|---|---|---|---|
| Output Speed: | 70 | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Efficiency: | 80 | Bolt Size (in): | 0.75 in |
| Product Type: | TorqTaper Plus (SMTPB) | Standards met: | AGMA |
| Housing Length (in): | 17.8 in | Housing Height (in): | 35.75 in |
| Housing Width (in): | 28.16 in | Maximum Output Size (in): | 5.4375 in |
| Ratio Range: | 25:1 | Gear Type: | Helical |
| Mounting Style: | Shaft mount | Input Style: | Shaft |
| Reducer Size: | 507 | Maximum Output Bore: | 5.4375 |
| Maximum Output RPM: | 80 | Output Bore: | Tapered Bushing |
| Drive Type: | Torque Arm | Reduction: | Double |
| Input Shaft Diameter: | 2.625 | Input Shaft Keyseat (in): | 5/8 Sq. X 8 3/8 in |
| Output Shaft: | Tapered Bore | Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Housing Material: | Cast Iron | UPC: | 662460575629 |
| Weight: | 1, 214.00 LB | Packaged Length: | 24.58 Inches |
| Packaged Width: | 28.16 Inches | Packaged Height: | 35.75 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
