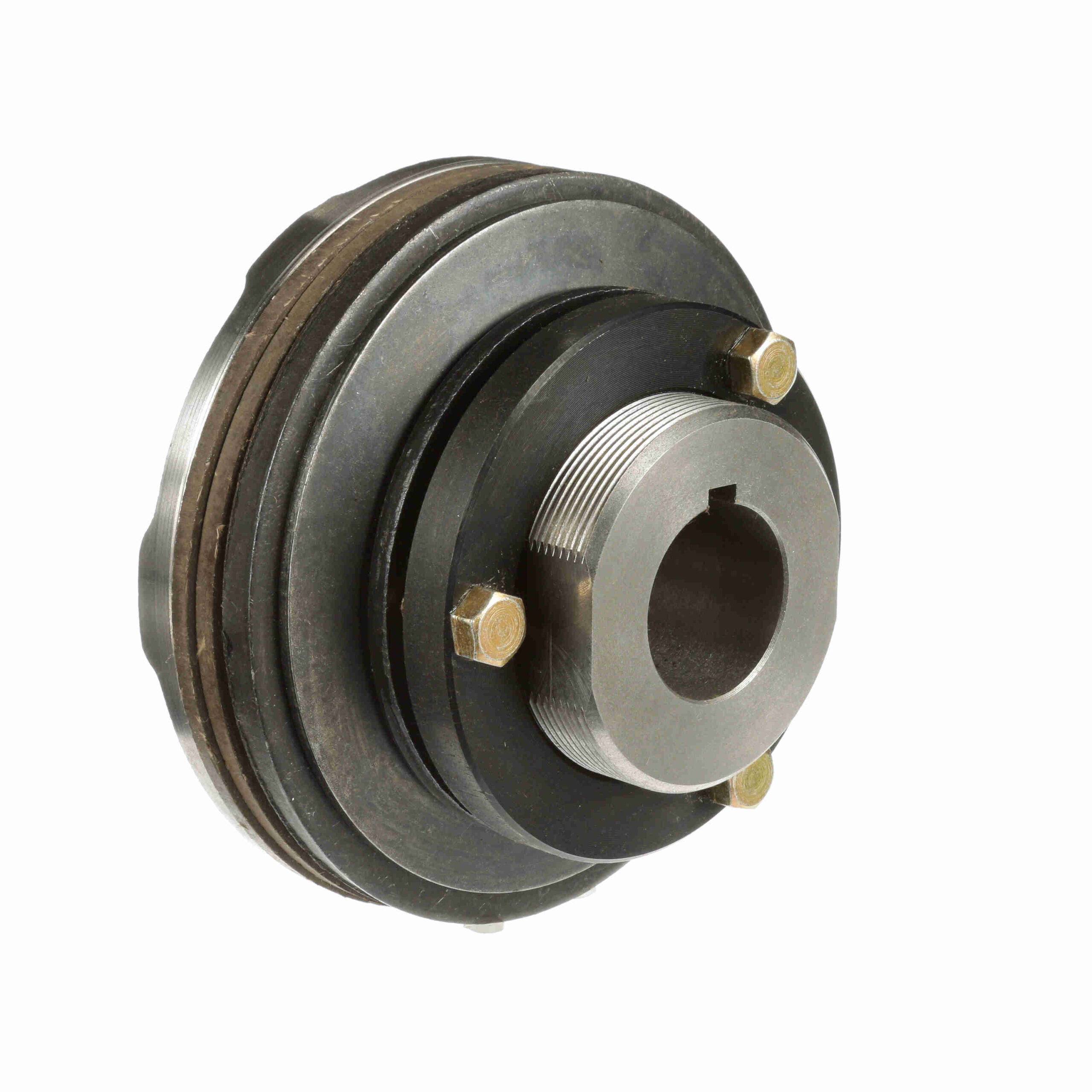

Morse Torque Limiter Model – 500A – 500A-1 TL 1-1/4 FB

SKU: 466104 Category: Mechanical Clutches

$417.13

Out of stock

Out of stock

Product Information
Specifications

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
Morse torque limiters are simple design, economical, easy adjustment, compact and dependable

Detection Method:	Friction Pad	Backlash:	Zero
Disconnect Method:	Friction Pad	Outside Diameter (in):	5 in
Total Length (in):	3 in	Trip Torque [Min]:	35
Bore Size (in):	1.25 in	Reset Type:	Automatic
Series / Model:	500A	Torque [Min] (N-m):	47.6
Total Length (mm):	76.2 mm	Maximum Bore w/ Key, Setscrew:	1.75
Type:	Torque Overload Devices	Sprocket Bore Diameter:	2.878/2.880
Bore Shape:	Straight Bore	Recovery Style:	Automatic
Sensor Plate:	No	Unit Accuracy:	0.25
Outside Diameter (mm):	127 mm	Torque Capacity [Min] (lb-ft):	35
Max RPM:	1, 000	Torque Capacity [Max] (lb-ft):	155
Product Type:	Torque Limiter	Torque [Max] (N-m):	210.8
Bore (Max) (in):	1.25 in	Bore (Min) (in):	1.25 in
Minimum Sprocket Teeth:	#40 (35 Teeth)	#60 (25 Teeth)	#80 (19 Teeth)
Bore Type:	Finished w/ Keyway	UPC:	662288478973
Weight:	7.44 LB	Packaged Length:	6.40 Inches
Packaged Width:	6.20 Inches	Packaged Height:	3.70 Inches
HTC:	8483.60.8000	Country of Origin:	United States of America
