- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
50-3 C/L S/C S/F

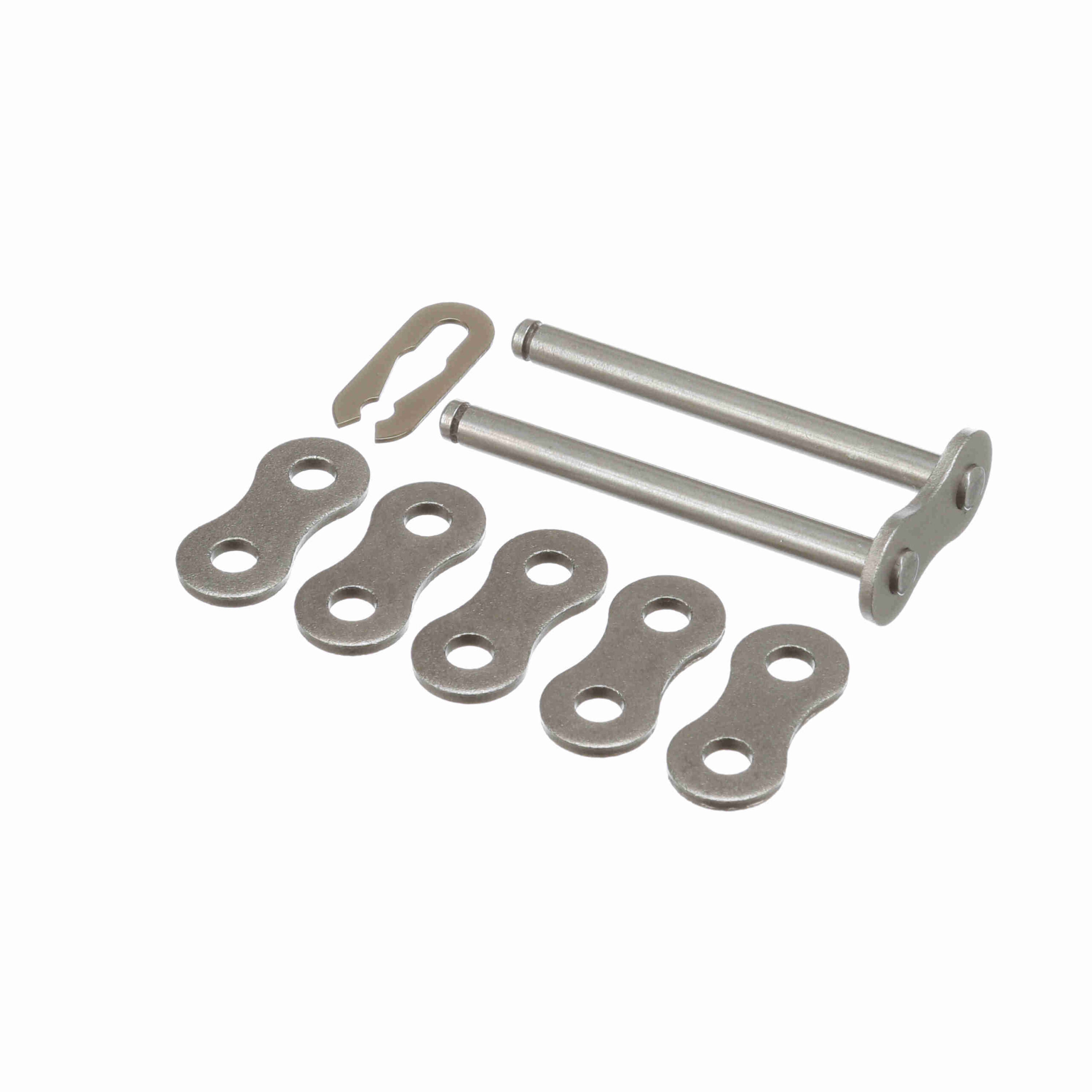

Morse Standard Roller Chain Spring Clip Connecting Link – 50-3 C/L S/C S/F
$12.15
Out of stock
Out of stock
| Chain Size: | 50 | Centerline to Outside of cotter Pin: | 1.203 |
|---|---|---|---|
| Width Over Pins/Total Width: | 2.22 | Average Ultimate Tensile Strength (psi): | 18, 300 |
| Pin Diameter (in): | 0.2 in | Side Plate Cfg.: | Hourglass |
| Number of Strands/Width: | 3 | Roller Diameter (in): | 0.4 in |
| Centerline to Opposite cotter Pin Side: | 1.11 | Inside Plate Height: | 0.584 |
| Connecting Link - Slip Fit: | Spring Clip | Number of Connecting Links Included: | 5 |
| Plate Thickness: | 0.08 | Material: | Steel |
| Roller Width (in): | 0.375 in | Chain Pitch (in): | 0.625 in |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Chain Construction: | Spring Clip | Link Type: | Connecting Link |
| UPC: | 662288456087 | Weight: | 0.10 LB |
| Packaged Length: | 2.75 Inches | Packaged Width: | 3.45 Inches |
| Packaged Height: | 0.55 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
