- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4R3V190

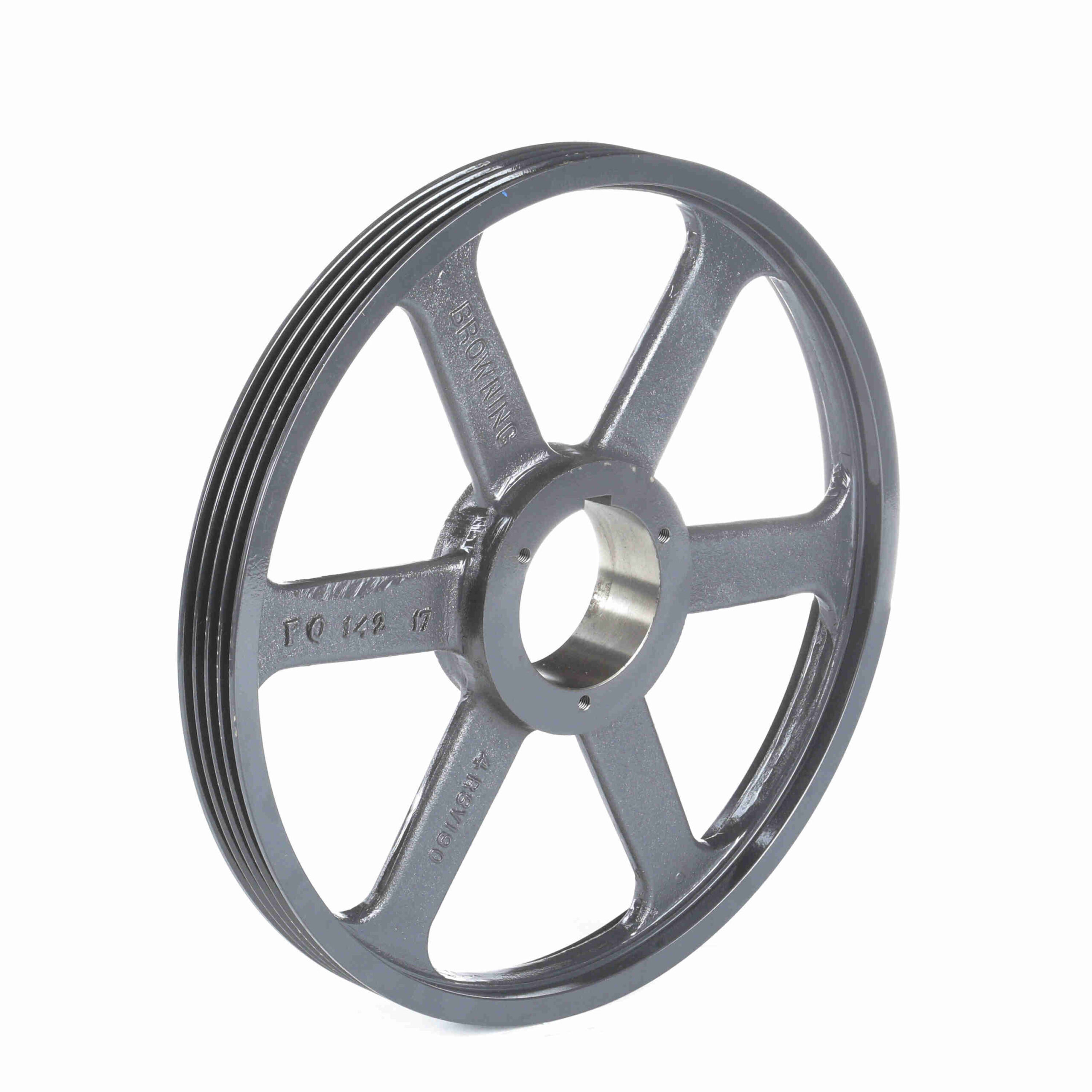

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4R3V190
$723.72
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Number of Grooves: | 4 |
|---|---|---|---|
| Overall Length (in): | 3.171875 in | Material: | Cast Iron |
| Bushing Used: | R1 | Pitch Diameter (3V): | 18.95 |
| Outside Diameter (in): | 19 in | Bore (Min) (in): | 1.125 in |
| Product Type: | Multiple Sheaves | Belt Section: | 3V |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 1.125 - 3.750 |
| Keyway Size: | .750 | Overall Width (in): | 3.15625 |
| Pulley Construction: | Spoked | Face Width (in): | 1.9063 |
| UPC: | 662289311965 | Weight: | 35.56 LB |
| Packaged Length: | 19.75 Inches | Packaged Width: | 19.75 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
