- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
4MVB94Q

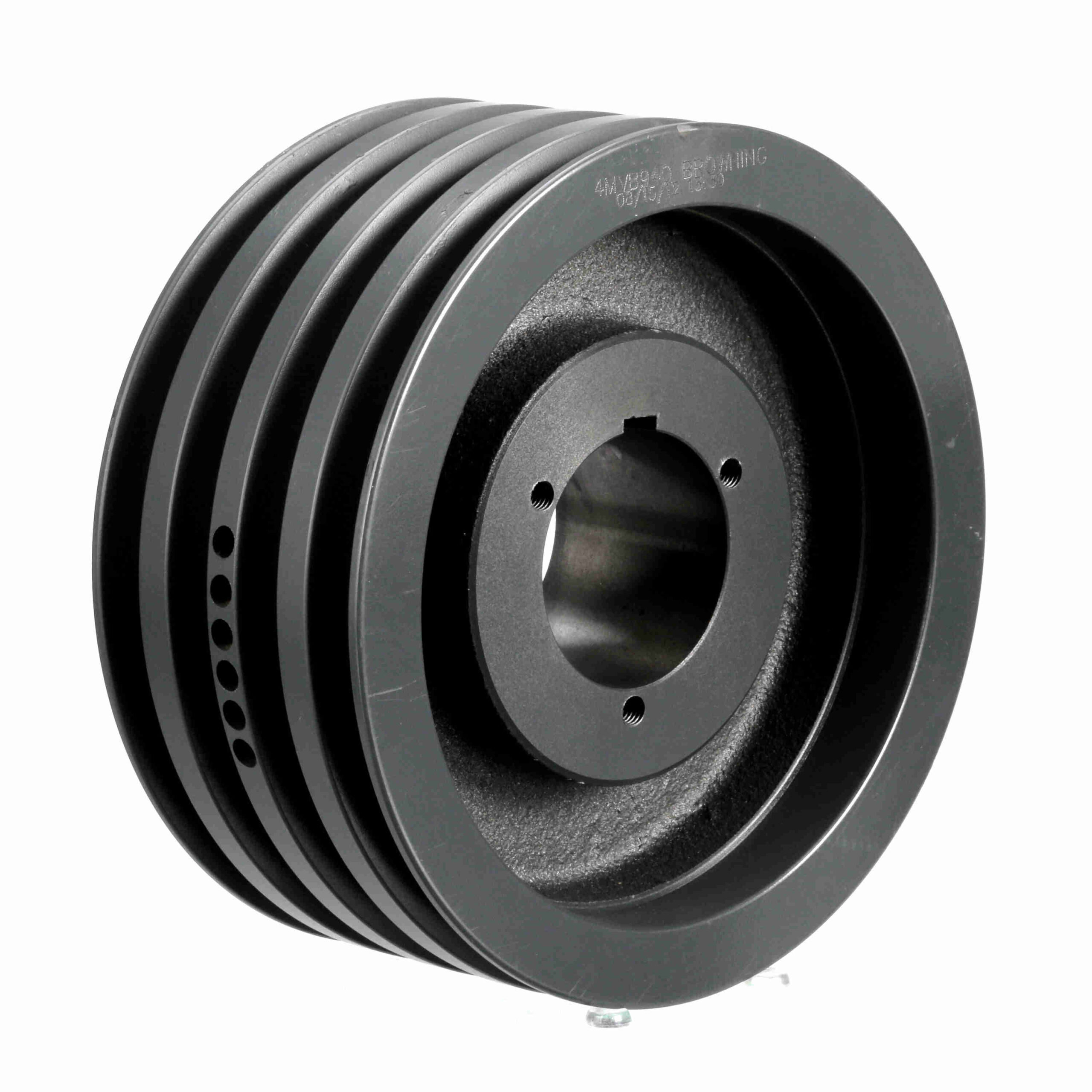

Browning 4 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 4MVB94Q
$1,890.41
Out of stock
Out of stock
| Outside Diameter (in): | 9.75 in | Material: | Cast Iron |
|---|---|---|---|
| Pitch Diameter Range (A): | 9.2 | Pitch Diameter Range (B): | 9.7 |
| Outside Length (in): | 4.640625 in | Type of Bore: | Bushed |
| Bore (Min) (in): | 1 in | Number of Grooves: | 4 |
| Product Type: | MVP Sheaves | Belt Section: | A, B |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Webbed |
| Bore (Max) (in): | 2.625 in | Face Width (in): | 4.375 in |
| Bushing Used: | Q2 | Bushing Bore Range: | 1.000 - 2.625 |
| Keyway Size: | .500 | UPC: | 662289115754 |
| Weight: | 36.79 LB | Packaged Length: | 10.40 Inches |
| Packaged Width: | 10.30 Inches | Packaged Height: | 4.70 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
