- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
4MVB50Q

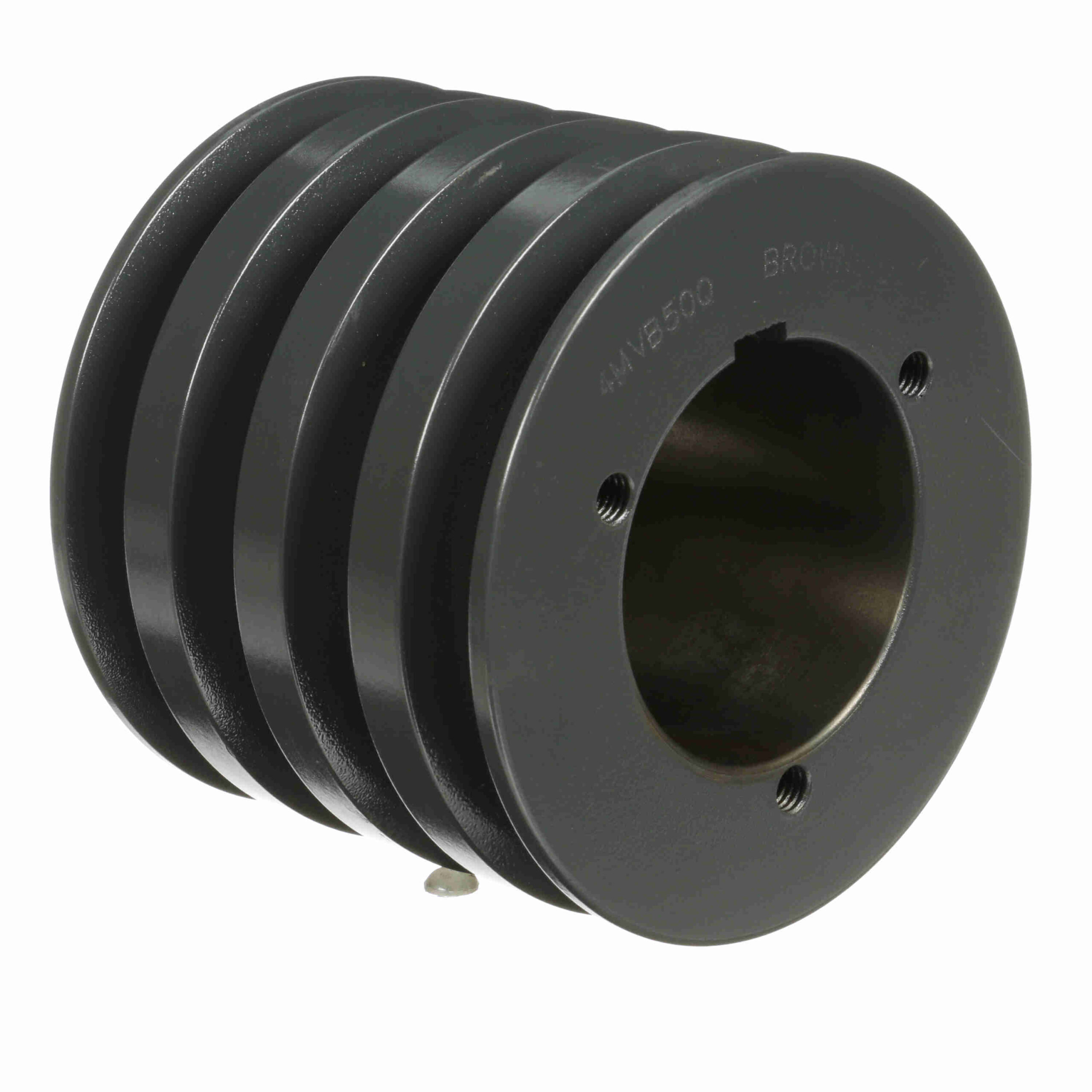

Browning 4 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 4MVB50Q
$693.44
Availability: 1 in stock
Availability: 1 in stock
| Outside Length (in): | 5.453125 in | Outside Diameter (in): | 5.35 in |
|---|---|---|---|
| Pitch Diameter Range (A): | 4.8 | Bore (Min) (in): | 1 in |
| Number of Grooves: | 4 | Pitch Diameter Range (B): | 5.3 |
| Type of Bore: | Bushed | Product Type: | MVP Sheaves |
| Material: | Cast Iron | Belt Section: | A, B |
| Bushing Used: | Q2 | Bore (Max) (in): | 2.625 in |
| Bore Type: | Split Taper Bushed | Keyway Size: | .500 |
| Bushing Bore Range: | 1.000 - 2.625 | UPC: | 662289135493 |
| Weight: | 12.97 LB | Packaged Length: | 7.00 Inches |
| Packaged Width: | 6.70 Inches | Packaged Height: | 4.70 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
