- Unmatched Quality and Performance in Morse Brand Chain
- All components are plated before assembly
- Available in package quantities or via quick-turnaround cut-to-length
- The strength of carbon steel with corrosion protection
40MG R 10FT

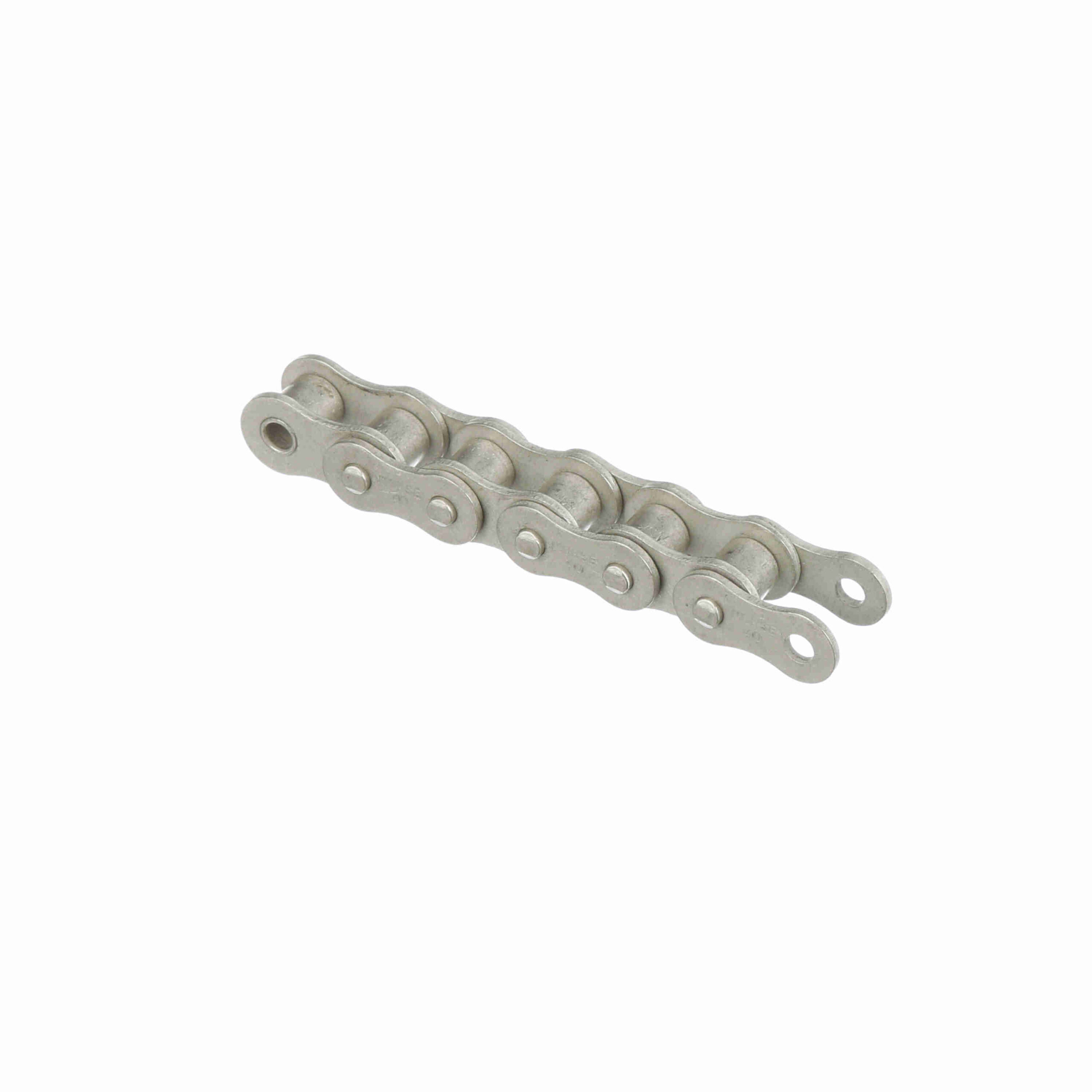

Morse Moisture Guard Riveted Roller Chain – 40MG R 10FT
$44.03
Out of stock
Out of stock
| Centerline to Opposite cotter Pin Side: | 0.315 | Centerline to Outside of cotter Pin: | 0.38 |
|---|---|---|---|
| Inside Plate Height: | 0.466 | Chain Construction: | Riveted |
| Chain Size: | 40 | Plate Thickness: | 0.06 |
| Pin Diameter (in): | 0.156 in | Roller Diameter (in): | 0.312 in |
| Material: | Steel | Side Plate Cfg.: | Hourglass |
| Coating: | Moisture Guard | Roller Width (in): | 0.3125 in |
| Number of Strands/Width: | 1 | Number of Connecting Links Included: | 1 |
| Average Ultimate Tensile Strength (psi): | 3, 700 | Width Over Pins/Total Width: | 0.63 |
| Product Type: | Roller Chain | Chain Pitch (in): | 0.5 in |
| Chain Type: | Moisture Guard | Total Length: | 10 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.63 | UPC: | 662288805670 |
| Weight: | 0.49 LB | Packaged Length: | 9.30 Inches |
| Packaged Width: | 9.20 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
