- When you think Sprockets – Think Browning
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
40B17

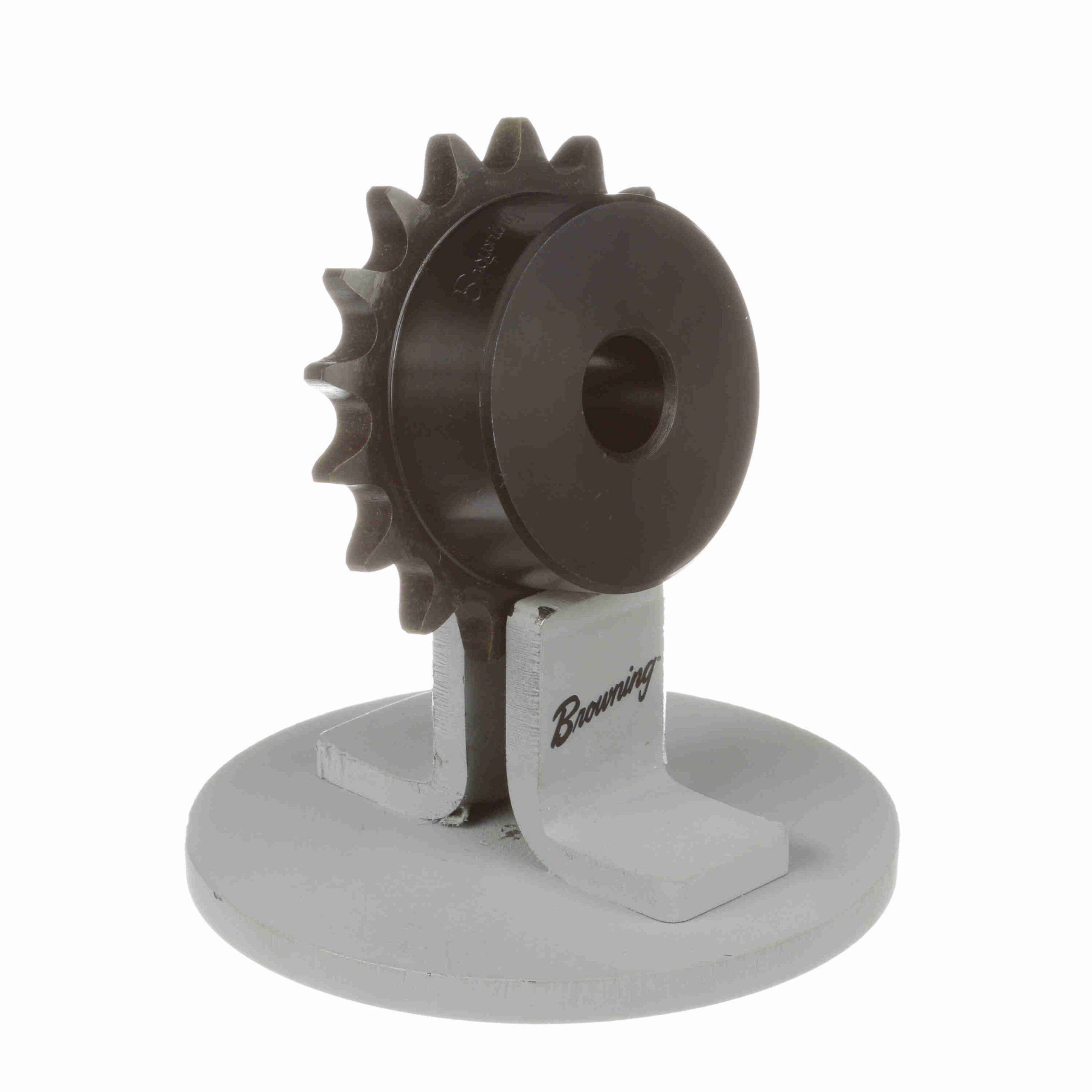

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 40B17
Out of stock
| Product Type: | Type "B" Minimum Bore Sprocket | Number of teeth: | 17 |
|---|---|---|---|
| Chain Pitch (in): | 0.5 in | Material: | Steel |
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.4375 in | Outside Diameter (in): | 2.96 in |
| Pitch Diameter (in): | 2.721 in | Bore (in): | 0.625 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.125 in |
| Hub Type: | Type B | Length Through Bore (in): | 1 in |
| Maximum Bore (in): | 1.4375 | Minimum Bore (in): | 0.625 |
| Number of Hubs: | 1 | Hub Projection (in): | 0.71875 |
| Width Across Tooth Sets: | 0.284 | UPC: | 662289209132 |
| Weight: | 1.05 LB | Packaged Length: | 4.19 Inches |
| Packaged Width: | 4.19 Inches | Packaged Height: | 1.06 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
