- When you think Sprockets – Think Browning
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
40A48

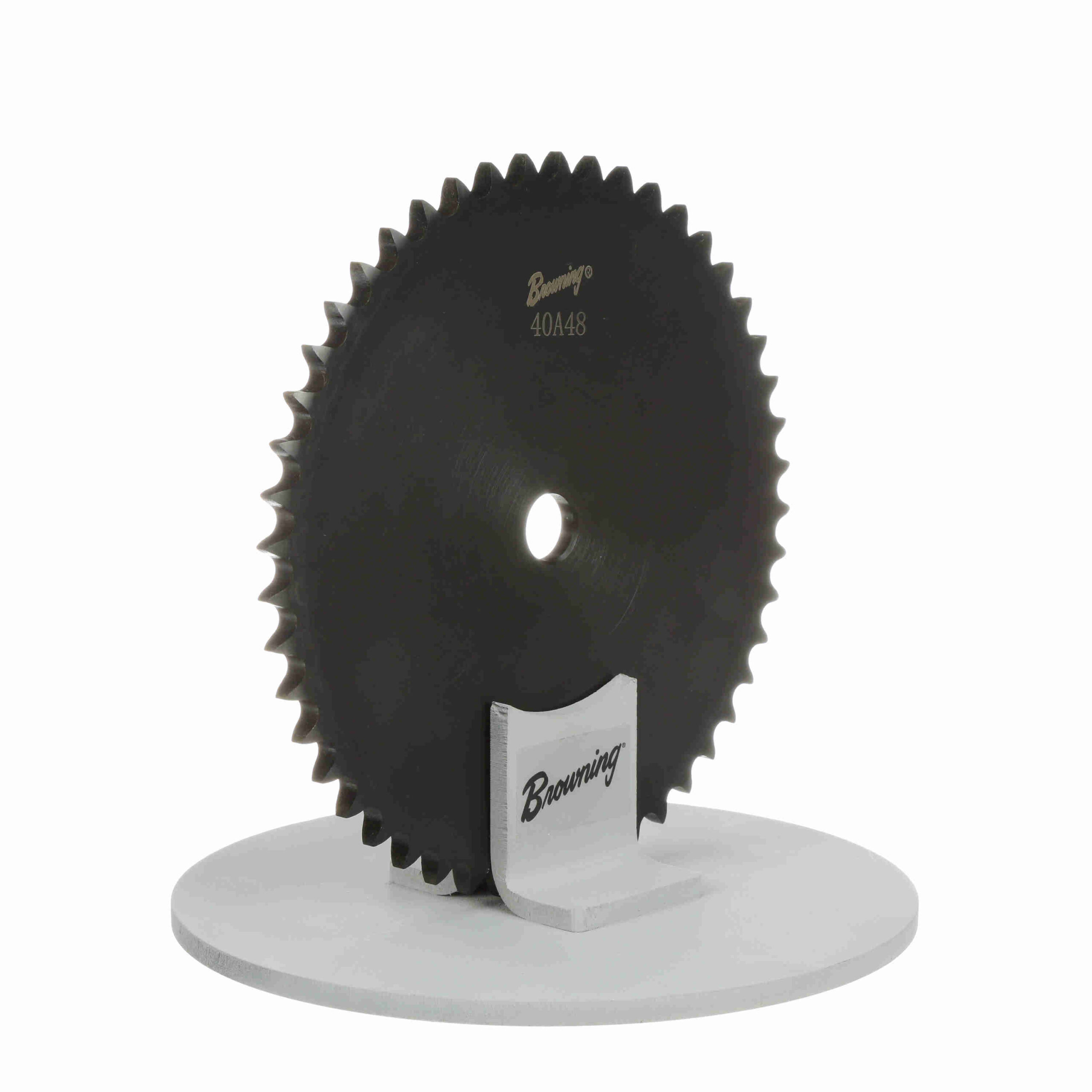

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 40A48
$69.35
Out of stock
Out of stock
| Number of teeth: | 48 | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
|---|---|---|---|
| Material: | Steel | Product Type: | Type "A" Plate Sprocket |
| Chain Pitch (in): | 0.5 in | Outside Diameter (in): | 7.929 in |
| Bore Type: | Minimum Plain Bore | Pitch Diameter (in): | 7.644894 in |
| Bore (in): | 0.71875 in | Number of Strands/Width: | 1 |
| Length Through Bore (in): | 0.284 in | Hub Type: | Type A |
| Maximum Bore (in): | 2.375 | Number of Hubs: | 0 |
| Width Across Tooth Sets: | 0.284 | Hardened Teeth: | With Hardened Teeth |
| UPC: | 662289211159 | Weight: | 3.69 LB |
| Packaged Length: | 8.80 Inches | Packaged Width: | 8.80 Inches |
| Packaged Height: | 1.30 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
