- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
40 C/L S/C S/F

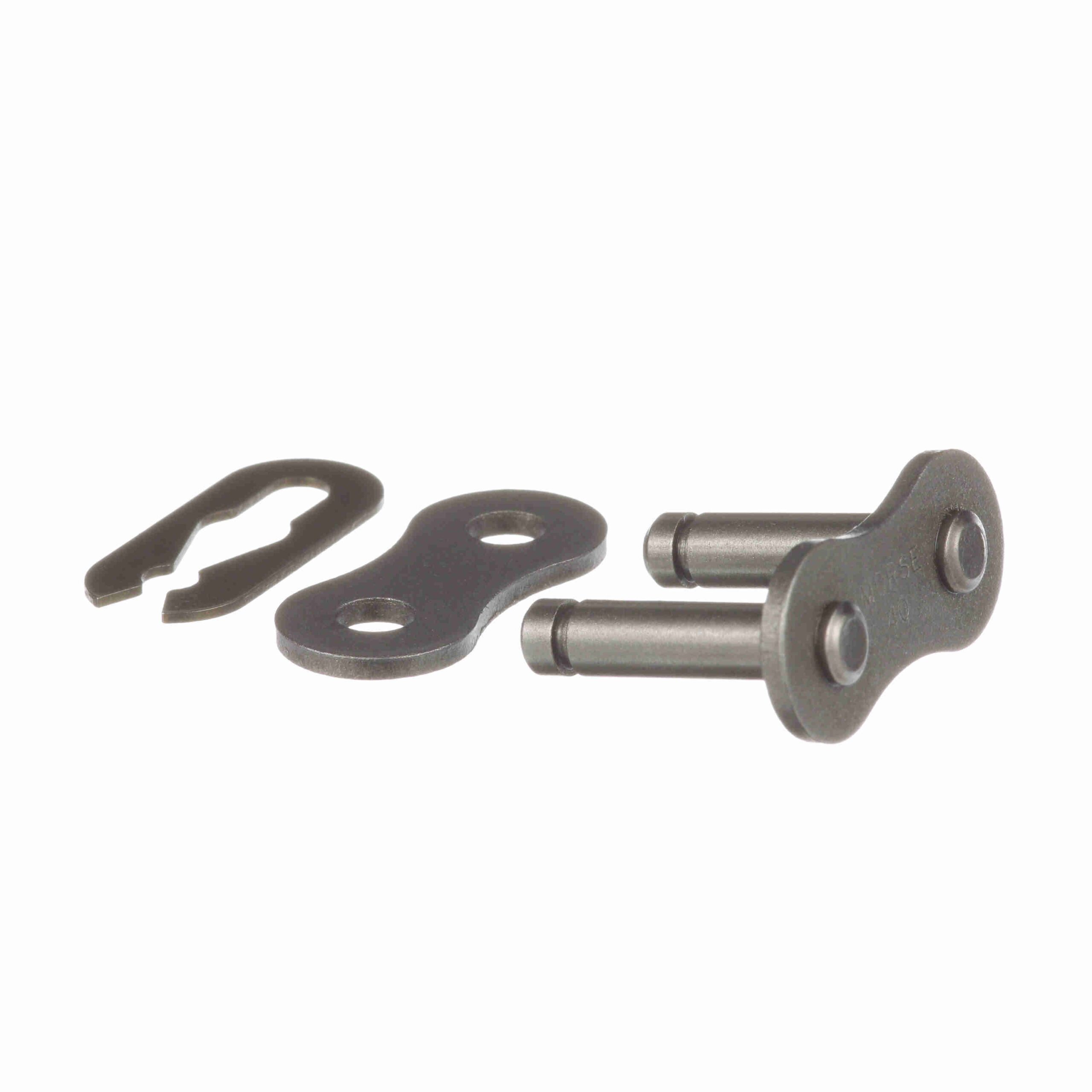

Morse Standard Roller Chain Spring Clip Connecting Link – 40 C/L S/C S/F
$1.55
Out of stock
Out of stock
| Plate Thickness: | 0.06 | Material: | Steel |
|---|---|---|---|
| Number of Connecting Links Included: | 25 | Connecting Link - Slip Fit: | Spring Clip |
| Average Ultimate Tensile Strength (psi): | 3, 700 | Pin Diameter (in): | 0.156 in |
| Roller Width (in): | 0.3125 in | Number of Strands/Width: | 1 |
| Side Plate Cfg.: | Hourglass | Centerline to Outside of cotter Pin: | 0.38 |
| Chain Size: | 40 | Centerline to Opposite cotter Pin Side: | 0.315 |
| Roller Diameter (in): | 0.312 in | Width Over Pins/Total Width: | 0.63 |
| Inside Plate Height: | 0.466 | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 0.5 in |
| UPC: | 662288395379 | Weight: | 0.02 LB |
| Packaged Length: | 2.45 Inches | Packaged Width: | 0.95 Inches |
| Packaged Height: | 0.65 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
