- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
40-2R 100FT

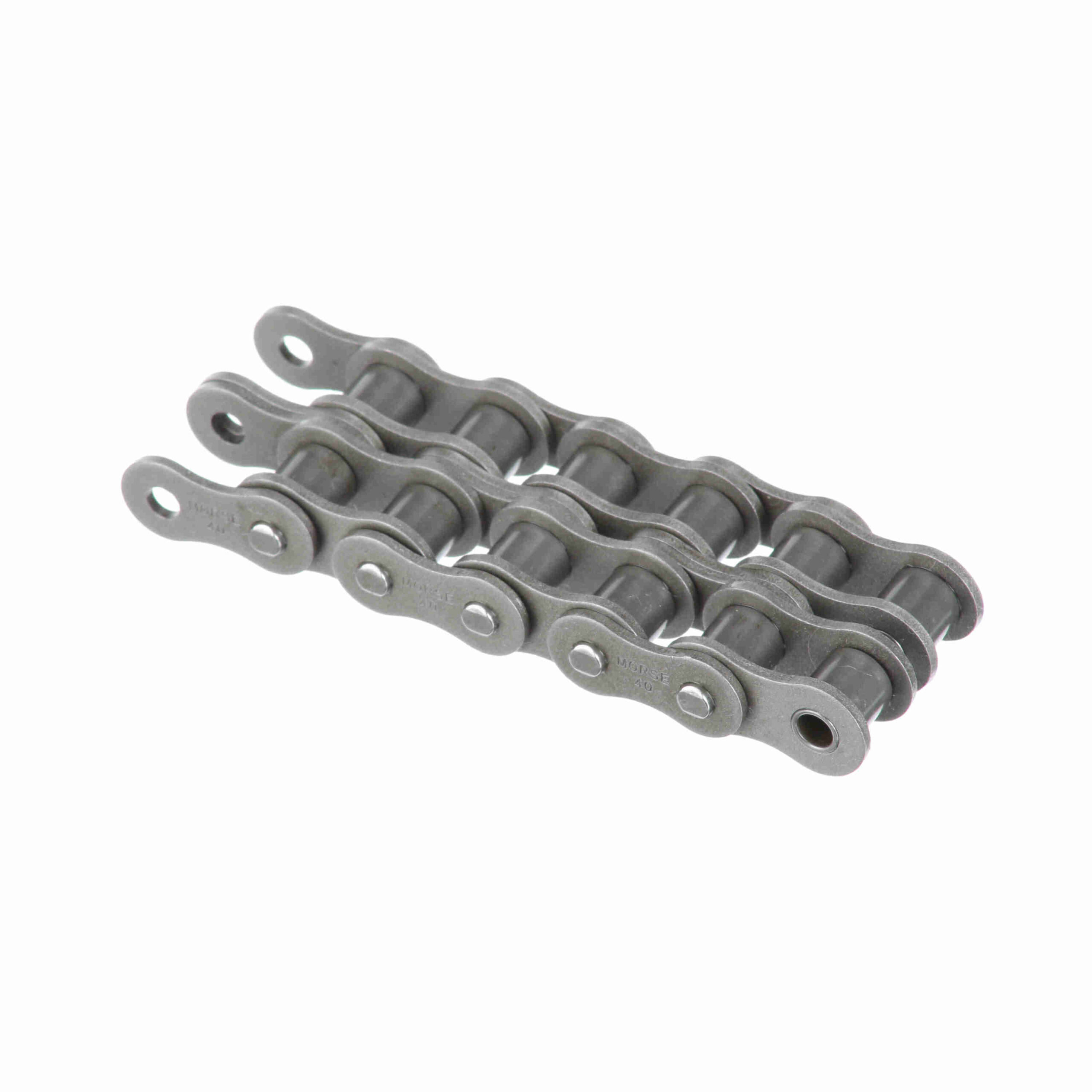

Morse Standard Riveted Roller Chain – 40-2R 100FT
$27.85
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Chain Size: | 40 |
|---|---|---|---|
| Material: | Steel | Width Over Pins/Total Width: | 1.215 |
| Pin Diameter (in): | 0.156 in | Number of Strands/Width: | 2 |
| Centerline to Outside of cotter Pin: | 0.662 | Roller Diameter (in): | 0.312 in |
| Center Plates: | Loose Fit, Press Fit Optional | Roller Width (in): | 0.3125 in |
| Centerline to Opposite cotter Pin Side: | 0.597 | Average Ultimate Tensile Strength (psi): | 7, 400 |
| Plate Thickness: | 0.06 | Chain Construction: | Riveted |
| Inside Plate Height: | 0.466 | Number of Connecting Links Included: | 10 |
| Chain Pitch (in): | 0.5 in | Chain Type: | Standard |
| Product Type: | Roller Chain | UPC: | 662288467724 |
| Weight: | 0.84 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
