- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
3MVC140R

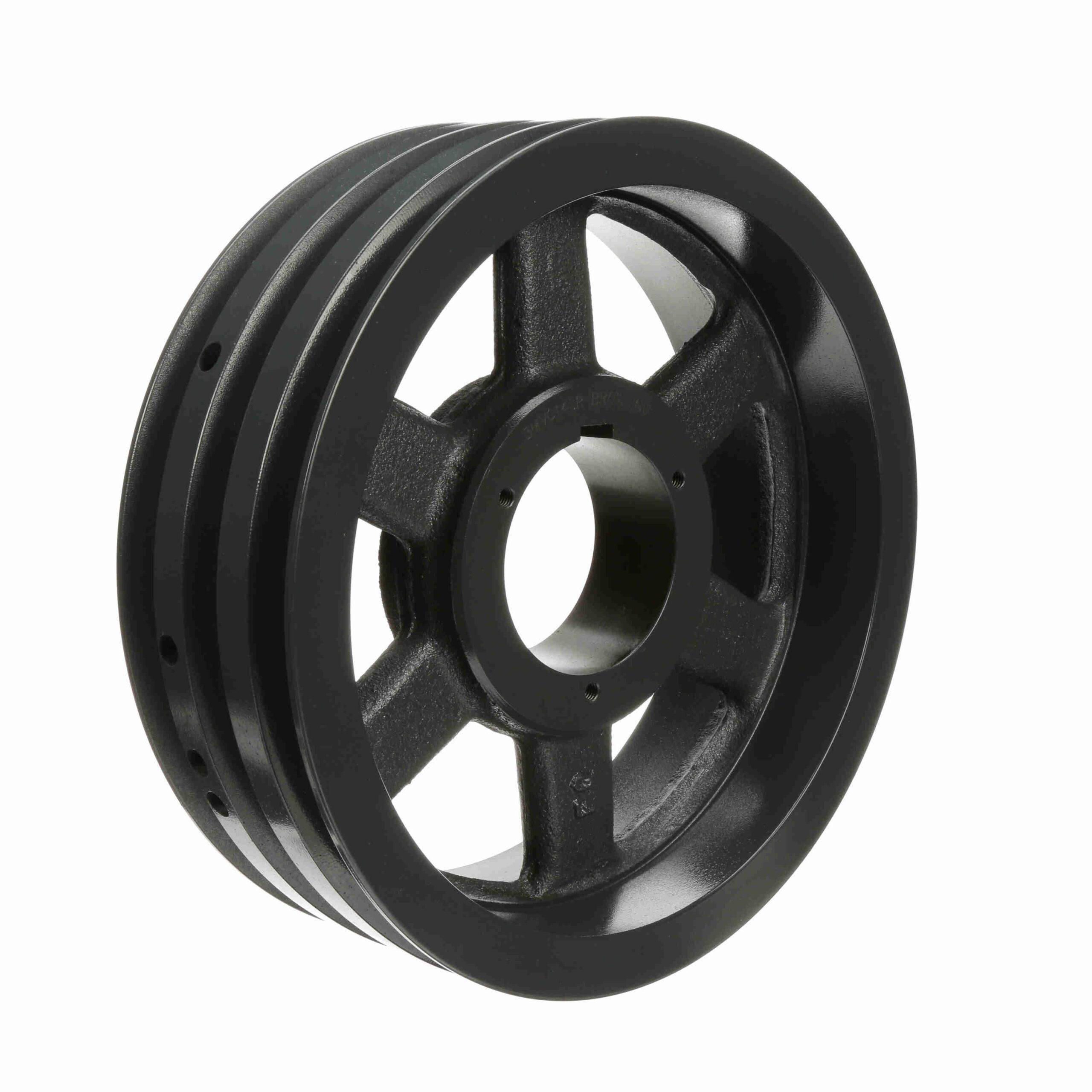

Browning 3 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 3MVC140R
$3,056.40
Out of stock
Out of stock
| Outside Diameter (in): | 14.4 in | Pitch Diameter Range (C): | 14.4 |
|---|---|---|---|
| Material: | Cast Iron | Number of Grooves: | 3 |
| Type of Bore: | Bushed | Product Type: | MVP Sheaves |
| Outside Length (in): | 4.5625 in | Bore (Min) (in): | 1.125 in |
| Belt Section: | C | Pulley Construction: | Arm |
| Face Width (in): | 4.5625 in | Bore (Max) (in): | 3.75 in |
| Bushing Used: | R1 | UPC: | 662289266326 |
| Weight: | 55.50 LB | Packaged Length: | 14.40 Inches |
| Packaged Width: | 14.40 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
