- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
35H32

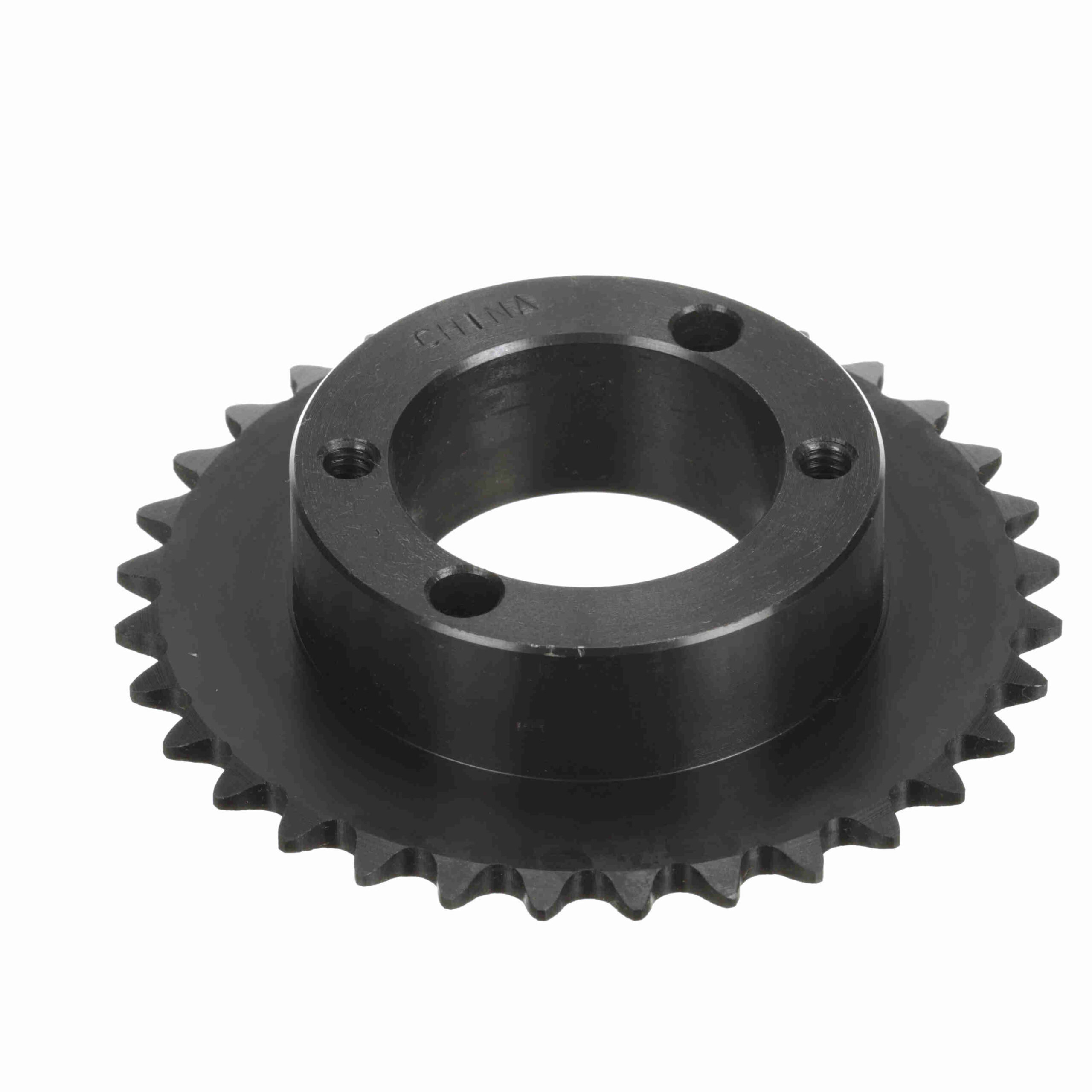

Browning Steel Bushed Bore Roller Chain Sprocket – 35H32
$181.98
Out of stock
Out of stock
| Pitch Diameter (in): | 3.826 in | Number of teeth: | 32 |
|---|---|---|---|
| Bore (Min) (in): | 0.375 in | Chain Pitch (in): | 0.375 in |
| Bushing Used: | Split Taper | Bore (Max) (in): | 1.5 in |
| Material: | Steel | Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Outside Diameter (in): | 4.032 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 1.51225 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Width Across Tooth Sets: | 0.168 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289284177 |
| Weight: | 1.04 LB | Packaged Length: | 4.19 Inches |
| Packaged Width: | 4.19 Inches | Packaged Height: | 1.06 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
