- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
35H22

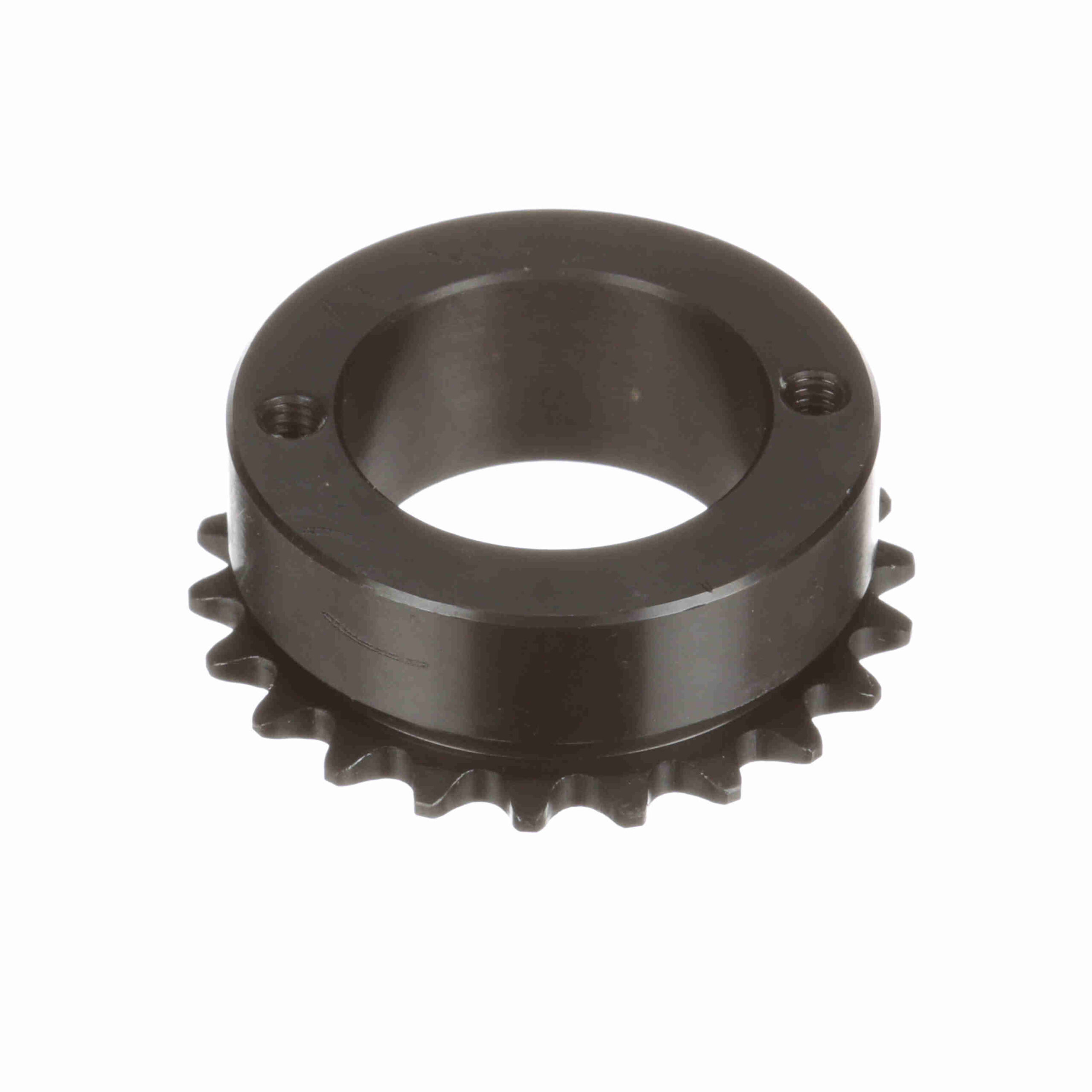

Browning Steel Bushed Bore Roller Chain Sprocket – 35H22
$132.45
Out of stock
Out of stock
| Bushing Used: | Split Taper | Chain Pitch (in): | 0.375 in |
|---|---|---|---|
| Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain | Bore (Min) (in): | 0.375 in |
| Bore (Max) (in): | 1.5 in | Number of teeth: | 22 |
| Product Type: | Bushed Roller Chain Sprocket | Pitch Diameter (in): | 2.635 in |
| Material: | Steel | Outside Diameter (in): | 2.833 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 1.50625 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.168 | UPC: | 662289164059 |
| Weight: | 1.20 LB | Packaged Length: | 3.00 Inches |
| Packaged Width: | 2.90 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
