- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
35G17

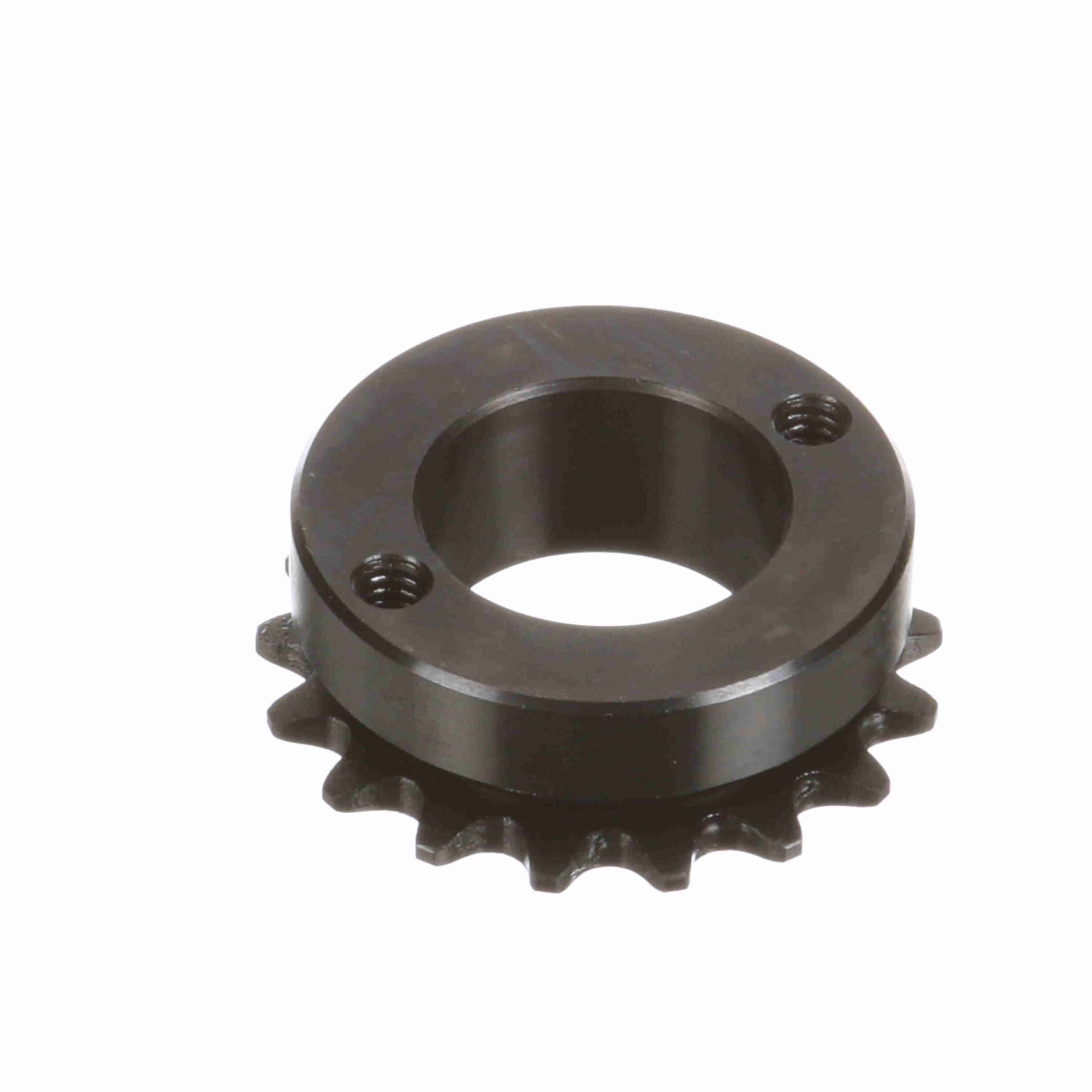

Browning Steel Bushed Bore Roller Chain Sprocket – 35G17
$105.30
Out of stock
Out of stock
| Number of teeth: | 17 | Chain Pitch (in): | 0.375 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Product Type: | Bushed Roller Chain Sprocket |
| Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain | Material: | Steel |
| Bore (Min) (in): | 0.375 in | Pitch Diameter (in): | 2.041 in |
| Bore (Max) (in): | 1 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 1.35625 in | Outside Diameter (in): | 2.231 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.015 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.168 |
| Pitch Type: | Single | UPC: | 662289113934 |
| Weight: | 0.38 LB | Packaged Length: | 2.56 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 1.38 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
