- When you think Sprockets – Think Browning
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
35B25

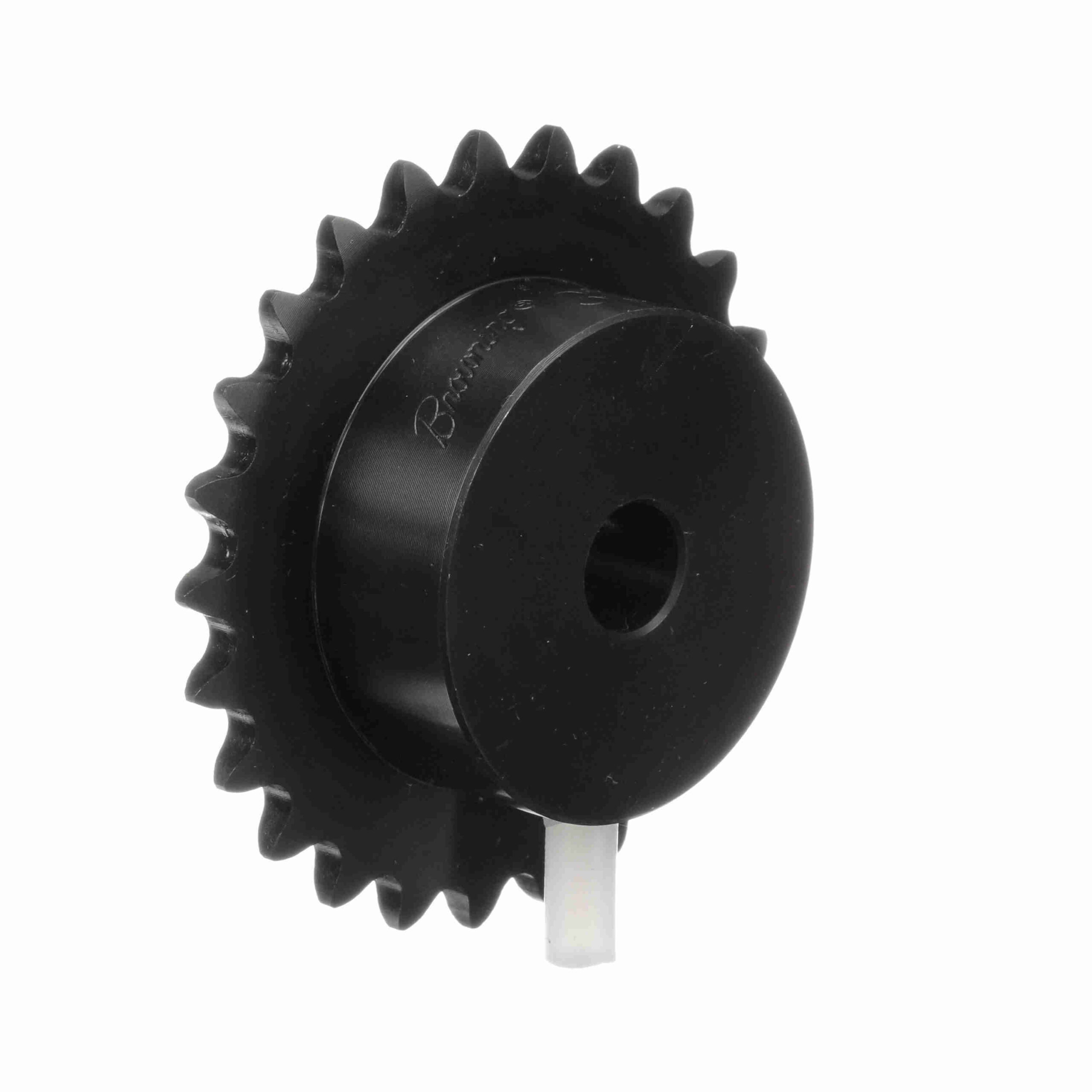

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 35B25
Out of stock
| Chain Pitch (in): | 0.375 in | Product Type: | Type "B" Minimum Bore Sprocket |
|---|---|---|---|
| Material: | Steel | Number of teeth: | 25 |
| Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain | Bore (Max) (in): | 1.375 in |
| Bore Type: | Minimum Plain Bore | Outside Diameter (in): | 3.19 in |
| Pitch Diameter (in): | 2.992 in | Number of Strands/Width: | 1 |
| Bore (in): | 0.5 in | Length Through Bore (in): | 0.875 in |
| Hub Type: | Type B | Hub Diameter (in): | 2 in |
| Maximum Bore (in): | 1.625 | Minimum Bore (in): | 0.5 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.168 |
| Hub Projection (in): | 0.703125 | UPC: | 662289278671 |
| Weight: | 0.94 LB | Packaged Length: | 3.40 Inches |
| Packaged Width: | 3.50 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
