- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
350A-2 TL 1 FB

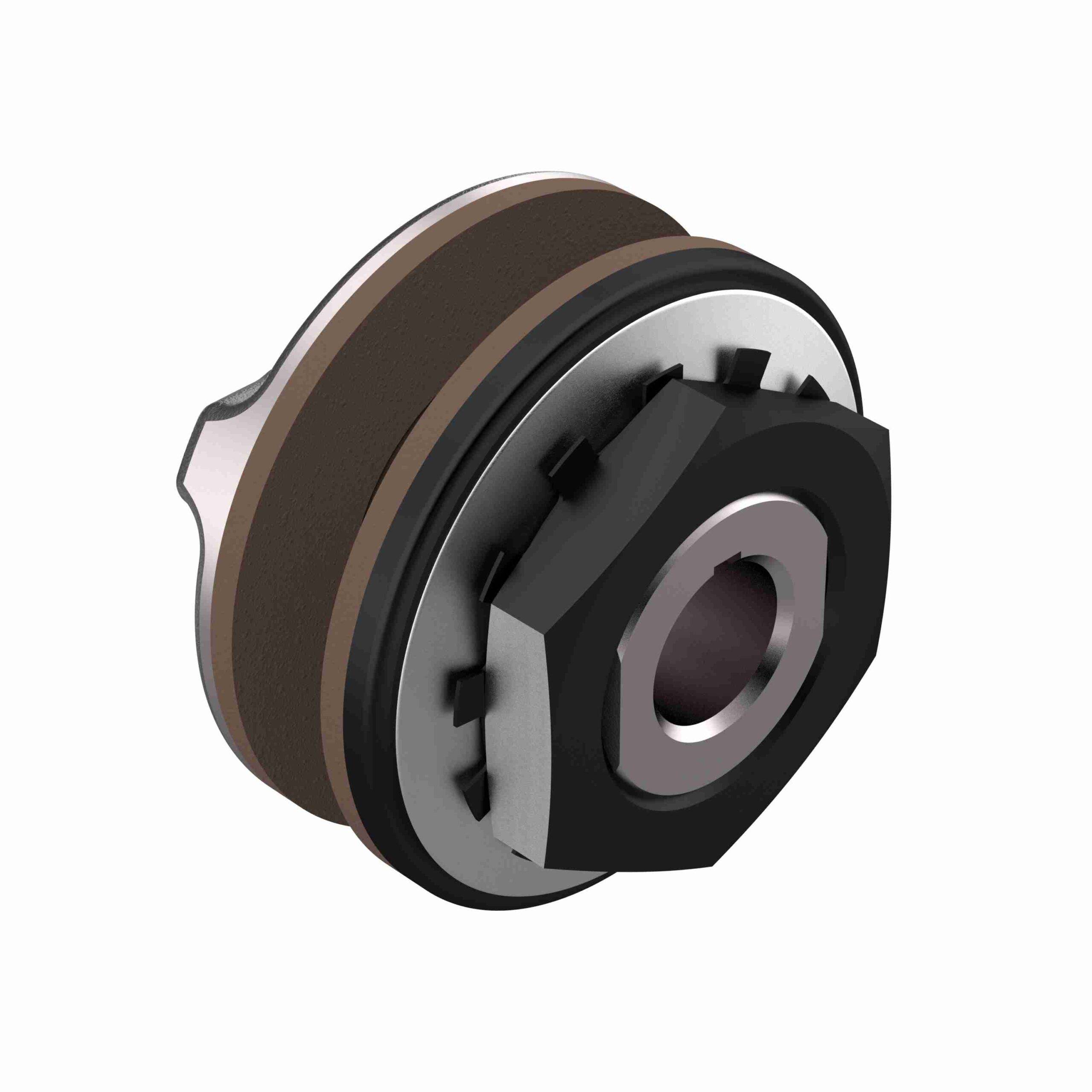

Morse Torque Limiter Model – 350A – 350A-2 TL 1 FB
$333.73
Out of stock
Out of stock
| Disconnect Method: | Friction Pad | Total Length (in): | 2.4375 in |
|---|---|---|---|
| Maximum Bore w/ Key, Setscrew: | 1.125 | Trip Torque [Min]: | 25 |
| Bore Size (in): | 1 in | Backlash: | Zero |
| Sensor Plate: | No | Total Length (mm): | 61.9125 mm |
| Series / Model: | 350A | Recovery Style: | Automatic |
| Detection Method: | Friction Pad | Outside Diameter (mm): | 88.9 mm |
| Type: | Torque Overload Devices | Bore Shape: | Straight Bore |
| Sprocket Bore Diameter: | 1.940/1.942 | Reset Type: | Automatic |
| Unit Accuracy: | 0.25 | Torque [Min] (N-m): | 34 |
| Outside Diameter (in): | 3.5 in | Torque [Max] (N-m): | 149.6 |
| Max RPM: | 1, 400 | Torque Capacity [Max] (lb-ft): | 110 |
| Torque Capacity [Min] (lb-ft): | 25 | Product Type: | Torque Limiter |
| Bore (Max) (in): | 1 in | Bore (Min) (in): | 1 in |
| Minimum Sprocket Teeth: | #35 (35 Teeth) | ||
| #50 (21 Teeth) | #35 (35 Teeth) |
