- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
35-2R 10FT

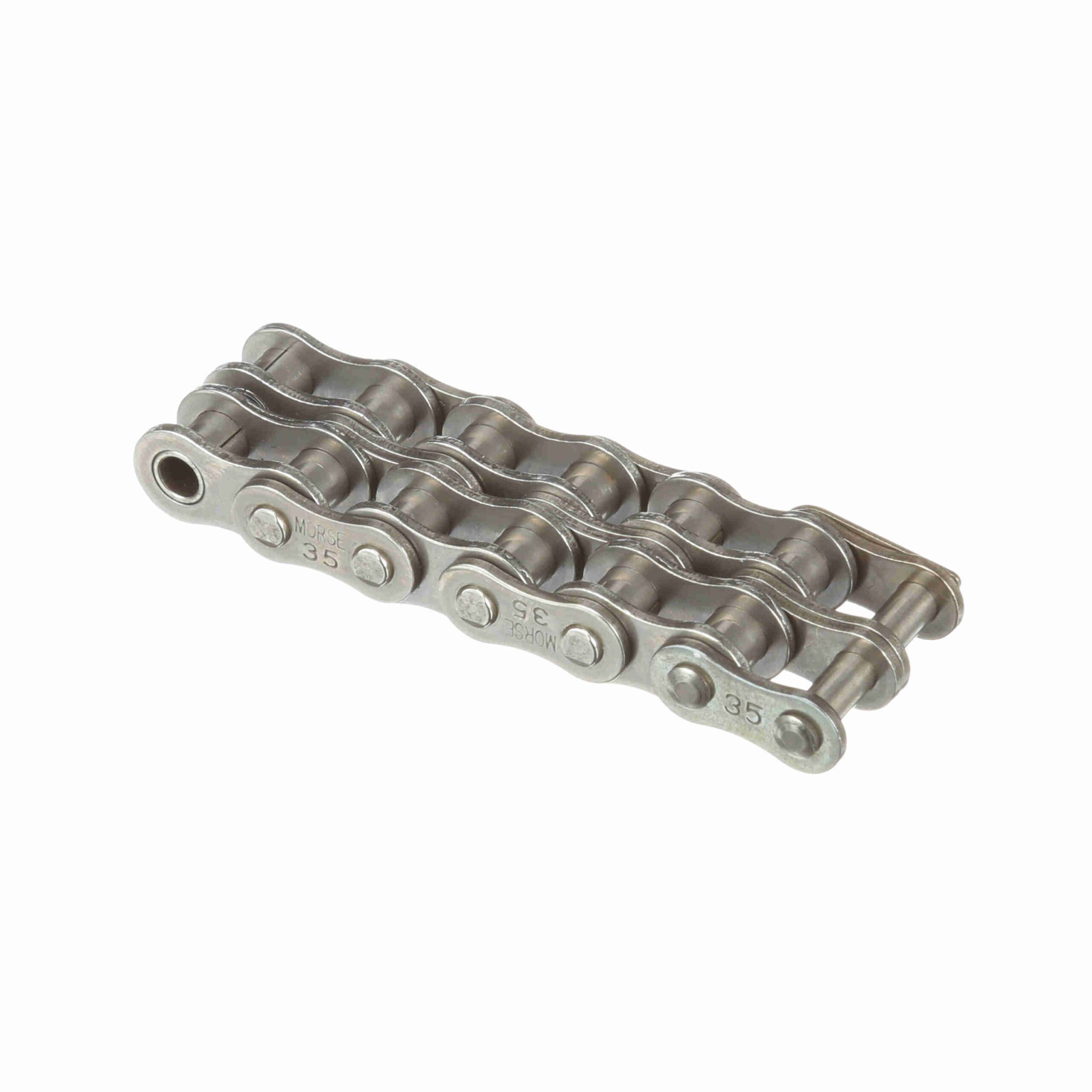

Morse Standard Riveted Roller Chain – 35-2R 10FT
$27.04
Out of stock
Out of stock
| Plate Thickness: | 0.05 | Number of Connecting Links Included: | 1 |
|---|---|---|---|
| Inside Plate Height: | 0.35 | Chain Construction: | Riveted |
| Pin Diameter (in): | 0.141 in | Centerline to Opposite cotter Pin Side: | 0.433 |
| Side Plate Cfg.: | Hourglass | Roller Diameter (in): | 0.2 in |
| Roller Width (in): | 0.1875 in | Number of Strands/Width: | 2 |
| Chain Size: | 35 | Average Ultimate Tensile Strength (psi): | 4, 200 |
| Material: | Steel | Center Plates: | Loose Fit, Press Fit Optional |
| Centerline to Outside of cotter Pin: | 0.467 | Width Over Pins/Total Width: | 0.866 |
| Chain Pitch (in): | 0.375 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Coating: | Uncoated |
| Total Length: | 10 FT ft | Measurement System: | Imperial |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 0.399 |
| Pin Length - Riveted: | 0.866 | UPC: | 662288390848 |
| Weight: | 0.48 LB | Packaged Length: | 7.50 Inches |
| Packaged Width: | 7.70 Inches | Packaged Height: | 1.10 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Japan |
