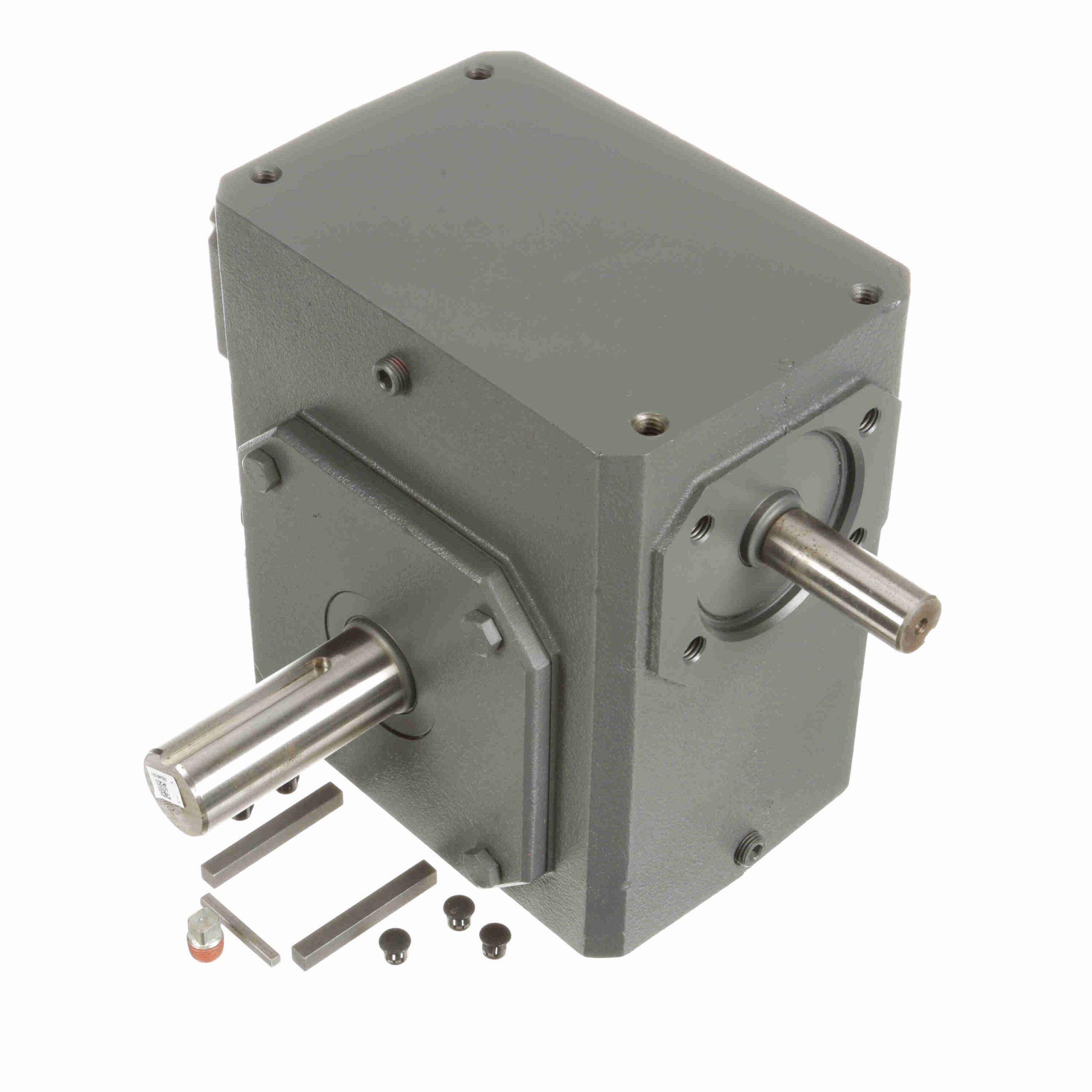

325ULR20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Length:	1.63	Thrust Rating - output shaft:	3410
Key Sq.:	0.188	Input Speed:	1750
Reducer Style:	Standard	Efficiency:	80
Shaft Seal Material:	Nitrile	Ratio:	20:1
Output Diameter (in):	1.375 in	Reducer:	Worm - Right Angle
No. of Gear Reductions:	Single	Ratio Range:	20:1
Series Code:	Raider	Input RPM:	1, 750
Output Shaft Orientation:	LR	Service Factor:	1
Center Distance (in):	3.25	Mounting Style:	No Base
Output Key:	5/16 X 2.88	Gear Type:	Worm
Input Diameter (in):	0.875 in	Output RPM:	87.5
Input Style:	Solid Shaft	Input HP @ 1750 RPM:	4.28
Model Code:	325U	Input Keyway:	3/16 X 1.63 in
Output Shaft Assembly Code:	D	Product Type:	Worm Speed Reducer
Assembly:	U-LR	Output Shaft Direction:	Double
Overhung Load Rating (Output Shaft(lb)):	2, 401 lb	Output Torque Rating (in-lb):	3267 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	71.00 LB
Packaged Length:	19.38 Inches	Packaged Width:	15.11 Inches
Packaged Height:	15 Inches
