- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206Q56H40 107

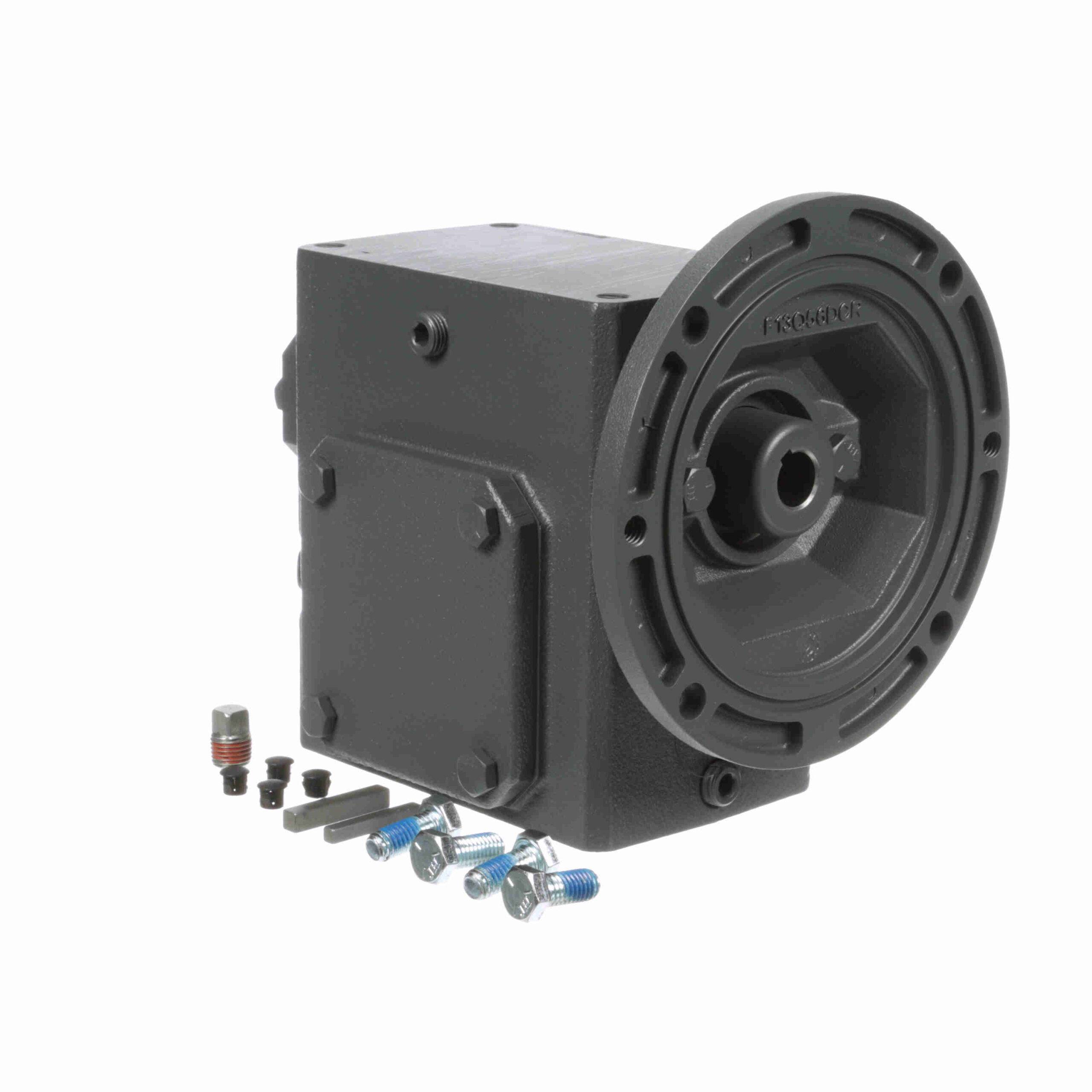

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206Q56H40 107
$1,472.38
Out of stock
Out of stock
| Reducer Style: | Standard | Input Speed: | 1750 |
|---|---|---|---|
| Thrust Rating - output shaft: | 1144 | Ratio: | 40:1 |
| Input Bore (C Face): | 0.625 | Motor Frame Size: | 56C |
| Efficiency: | 80 | Input Keyway (C Face): | 3/16 x 3/32 |
| Mounting Style: | Shaft Mt | Frame Size: | 56C |
| Product Type: | Right Angle | Ratio Range: | 40:1 |
| Input Style: | C-Face Quill | Service Factor: | 1 |
| No. of Gear Reductions: | Single | Input Diameter (in): | 0.625 in |
| Output Diameter (in): | 1.438 in | Input HP @ 1750 RPM: | 0.92 |
| Center Distance (in): | 2.06 | Series Code: | Raider |
| Gear Type: | Worm | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| Overhung Load Rating (Output Shaft(lb)): | 1, 315 lb | Output Torque Rating (in-lb): | 971 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 30.00 LB |
| Packaged Length: | 10.69 Inches | Packaged Width: | 9.06 Inches |
| Packaged Height: | 10.5 Inches |
