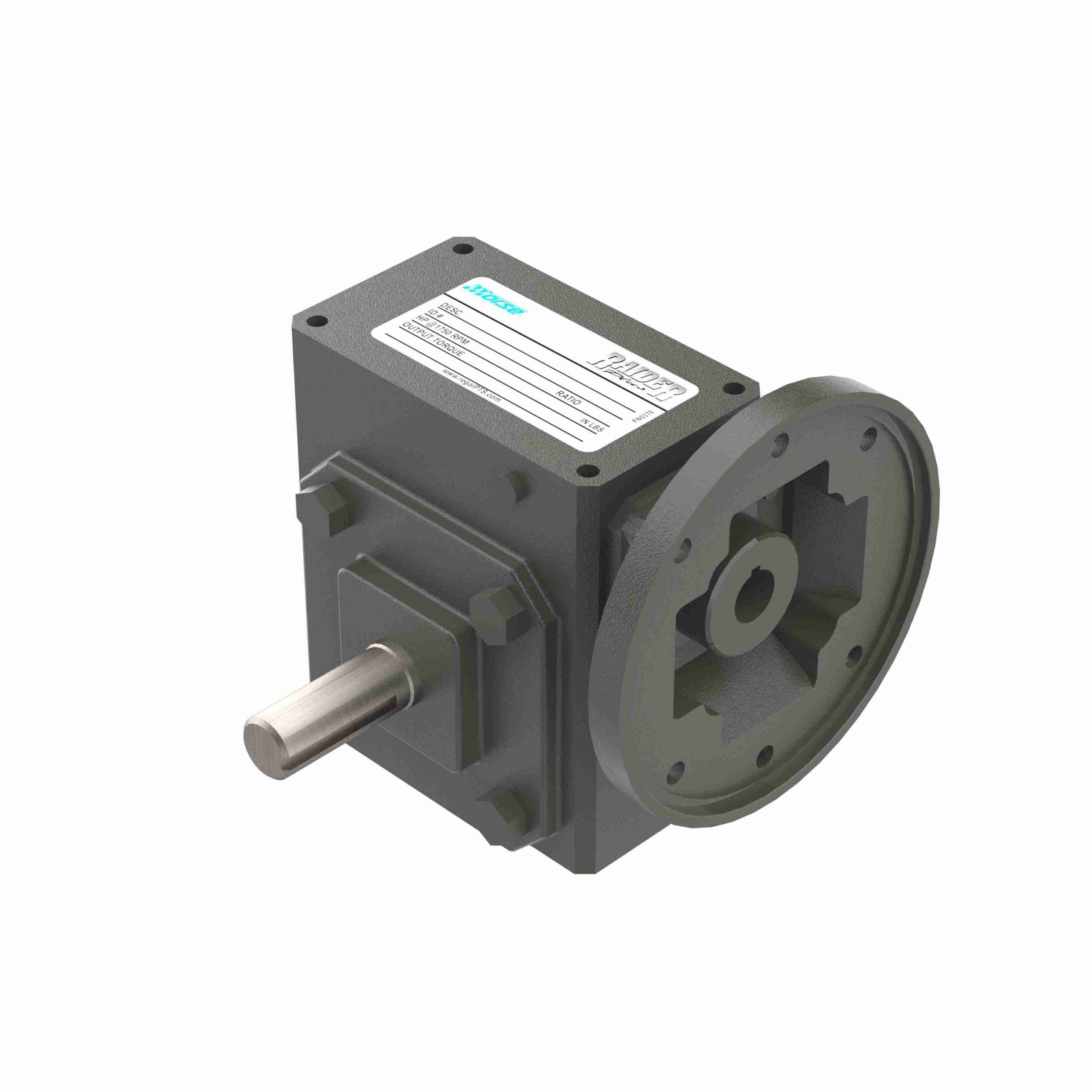

325Q180L30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Thrust Rating - output shaft:	3410	Input Keyway (C Face):	1/4 X 1/8
Input Speed:	1750	Ratio:	30:1
Efficiency:	80	Reducer Style:	Standard
Input Bore (C Face):	1.125	Shaft Seal Material:	Nitrile
Motor Frame Size:	180TC	Input RPM:	1, 750
Reducer:	Worm - Right Angle	Output RPM:	58.3
Mounting Style:	No Base	Input Style:	C-Face Quill
Output Key:	5/16 X 2.88	Assembly:	Q-L
Ratio Range:	30:1	No. of Gear Reductions:	Single
Gear Type:	Worm	Series Code:	Raider
Model Code:	325Q	Service Factor:	1
Center Distance (in):	3.25	Output Shaft Assembly Code:	L
Product Type:	Worm Speed Reducer	Input Diameter (in):	1.125 in
Output Diameter (in):	1.375 in	Input HP @ 1750 RPM:	3.14
Frame Size:	180TC	Output Shaft Direction:	Left
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	3226 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb)):	2, 401 lb	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	75.00 LB
Packaged Length:	19.38 Inches	Packaged Width:	15.11 Inches
Packaged Height:	15 Inches
