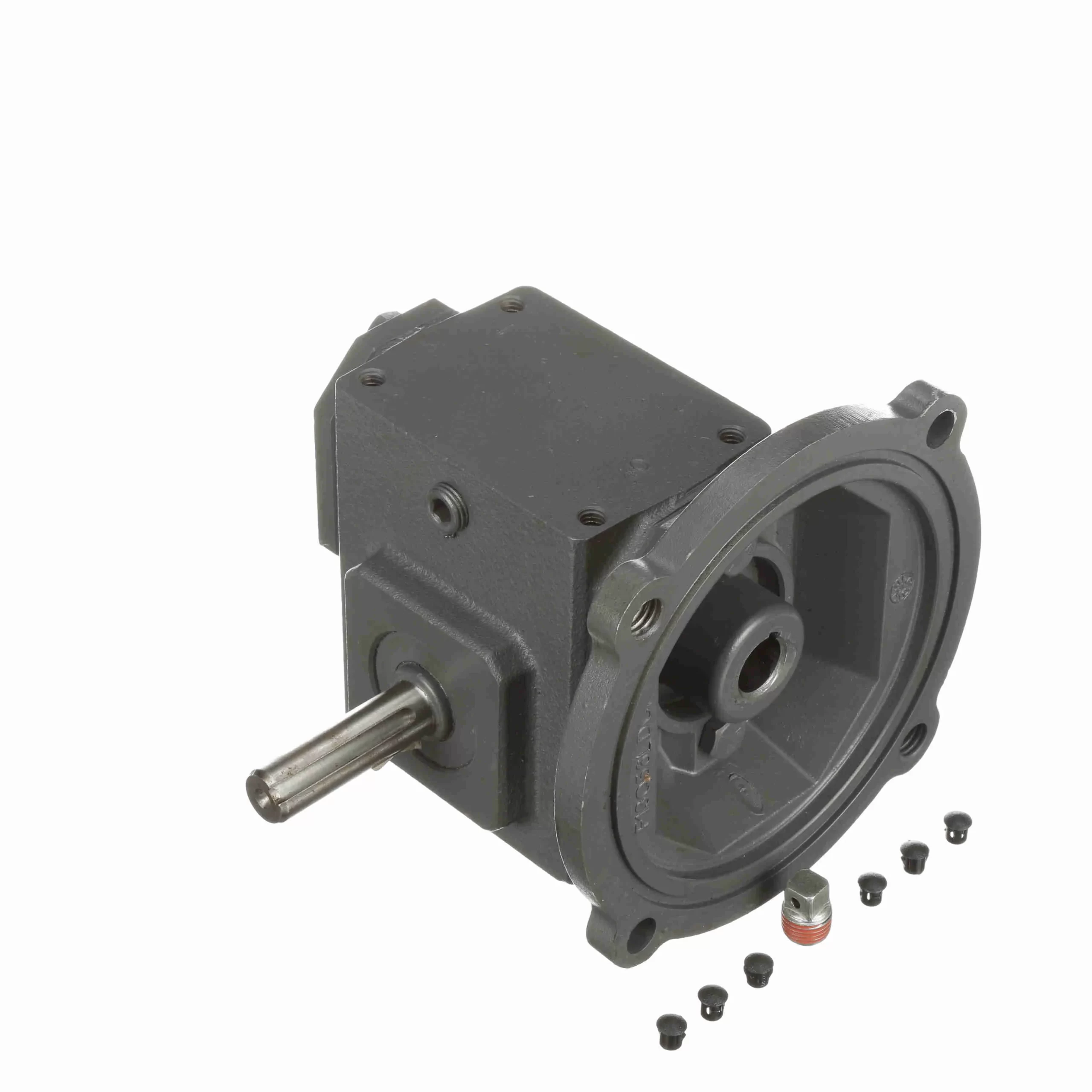

325Q140L15

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Input Speed:	1750
Motor Frame Size:	140TC	Input Bore (C Face):	0.875
Thrust Rating - output shaft:	3364	Efficiency:	80
Input Keyway (C Face):	3/16 X 3/32	Shaft Seal Material:	Nitrile
Ratio:	15:1	Maximum Input HP:	6.127 hp @ 1750 rpm
Manufacturer Reducer Size:	325	Series Code:	Raider
Reducer:	Worm - Right Angle	Output Shaft Assembly Code:	L
Input RPM:	1, 750	No. of Gear Reductions:	Single
Center Distance (in):	3.25	Input Style:	C-Face Quill
Frame Size:	140TC	Product Type:	Worm Speed Reducer
Output Key:	5/16 X 2.88	Output Diameter (in):	1.375 in
Ratio Range:	15:01	Gear Type:	Worm
Service Factor:	1	Assembly:	Q-L
Model Code:	325Q	Input HP @ 1750 RPM:	5.42
Mounting Style:	No Base	Output RPM:	116.6
Input Diameter (in):	0.875 in	Output Shaft Direction:	Left
Housing Material:	Cast Iron	Overhung Load Rating (Output Shaft(lb)):	2, 401 lb
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	2980 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	75.00 LB
