- One row tapered rollers
- Raceways have linear surfaces
- Axial and radial loads
- 2 piece bearing
32209 A

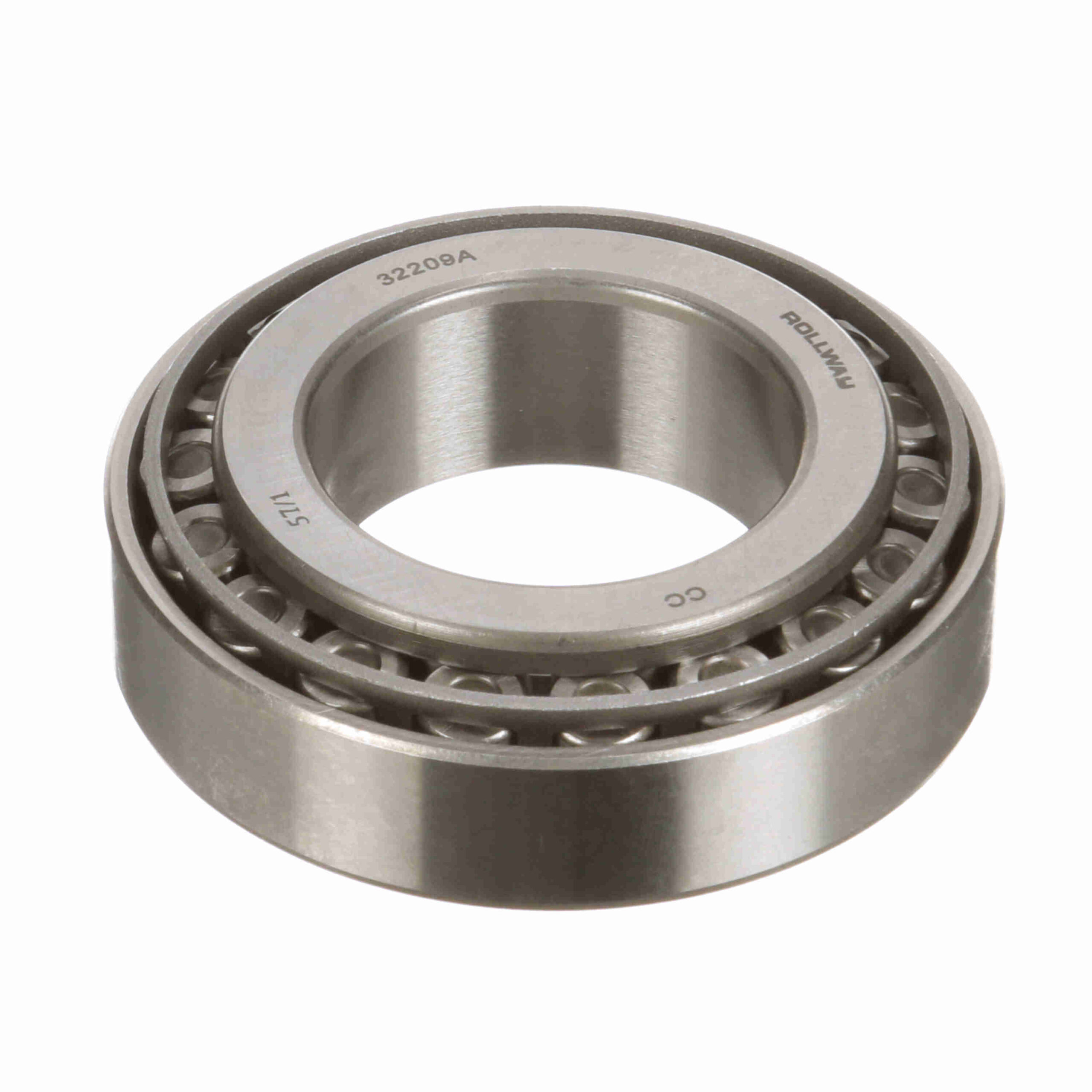

Rollway Radial Tapered Roller Bearing – Metric – 32209 A
$43.93
Availability: 81 in stock
Availability: 81 in stock
| Material: | High Chromium Bearing Steel | Version: | A - Increased load capacity |
|---|---|---|---|
| Bore Type: | Straight | Misalignment: | No |
| Cage Material: | Steel | Number of Rows: | 1 |
| Static Load Rating (kN): | 103 kN | Seal Type: | Unsealed |
| Dynamic Load Rating (kN): | 84.1 kN | Rolling Element: | Tapered Roller |
| Radial Clearance: | Normal | Dynamic Load Rating (lb): | 18, 906 lb |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Platform: | Tapered Radial Roller | Speed [Max] Grease (RPM): | 4, 500 rpm |
| Static Load Rating (lb): | 23, 155 lb | Sealed: | None |
| Speed [Max] Oil (RPM): | 6, 000 rpm | UPC: | 637410069848 |
| Weight: | 1.30 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 3.5 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
