- One row tapered rollers
- Raceways have linear surfaces
- Axial and radial loads
- 2 piece bearing
32024 X

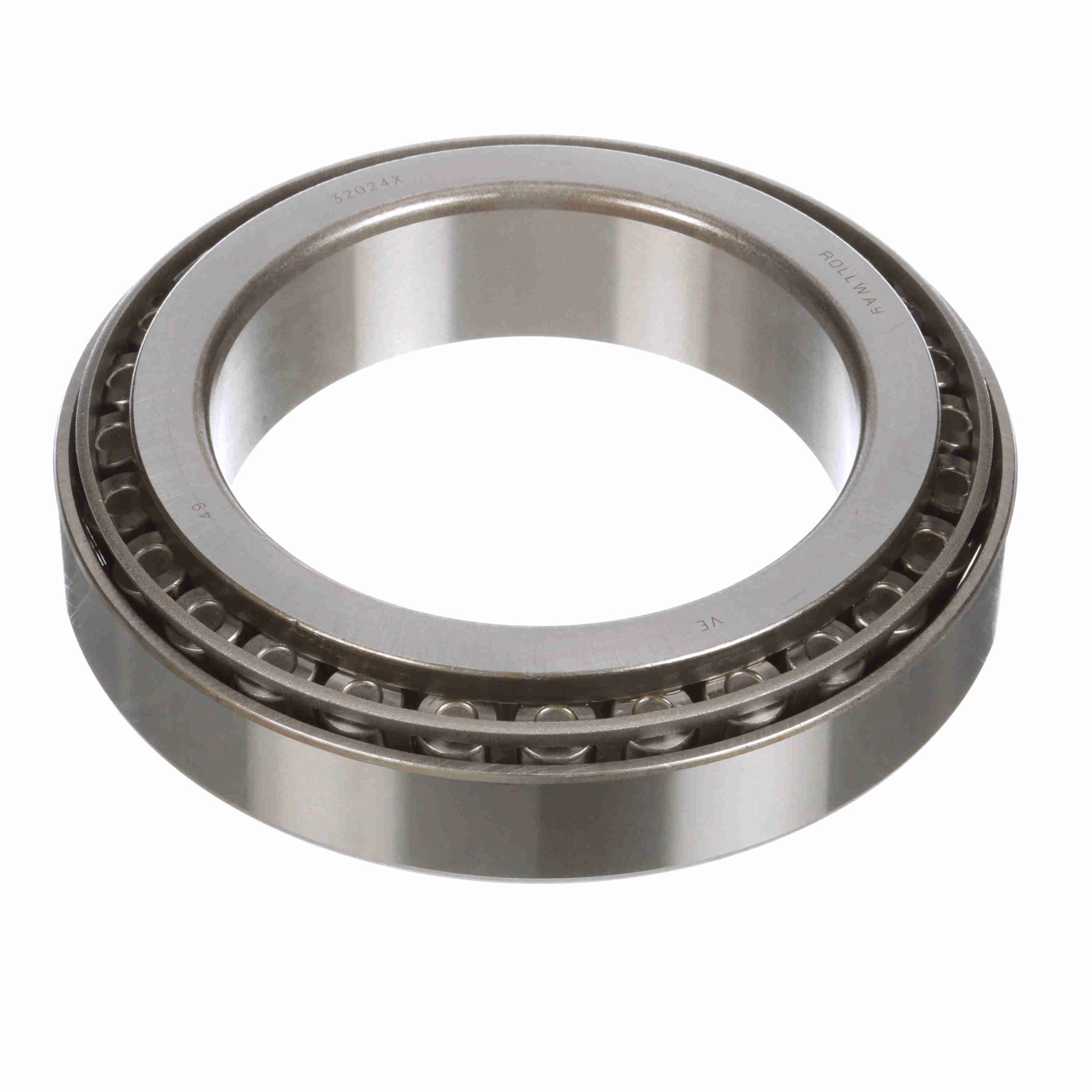

Rollway Radial Tapered Roller Bearing – Metric – 32024 X
$213.37
Availability: 2 in stock
Availability: 2 in stock
| Version: | X - Modified internal design | Material: | High Chromium Bearing Steel |
|---|---|---|---|
| Seal Type: | Unsealed | Dynamic Load Rating (kN): | 320 kN |
| Bore Type: | Straight | Rolling Element: | Tapered Roller |
| Cage Material: | Steel | Radial Clearance: | Normal |
| Misalignment: | No | Number of Rows: | 1 |
| Static Load Rating (kN): | 545 kN | Sealed: | None |
| Duplexing: | No | Static Load Rating (lb): | 122, 521 lb |
| Full Complement/Caged: | Caged | Platform: | Tapered Radial Roller |
| Speed [Max] Grease (RPM): | 1, 800 rpm | Dynamic Load Rating (lb): | 71, 939 lb |
| Speed [Max] Oil (RPM): | 2, 500 rpm | UPC: | 637410070653 |
| Weight: | 7.20 LB | Packaged Length: | 8.1 Inches |
| Packaged Width: | 8.5 Inches | Packaged Height: | 2.1 Inches |
| Country of Origin: | China |
