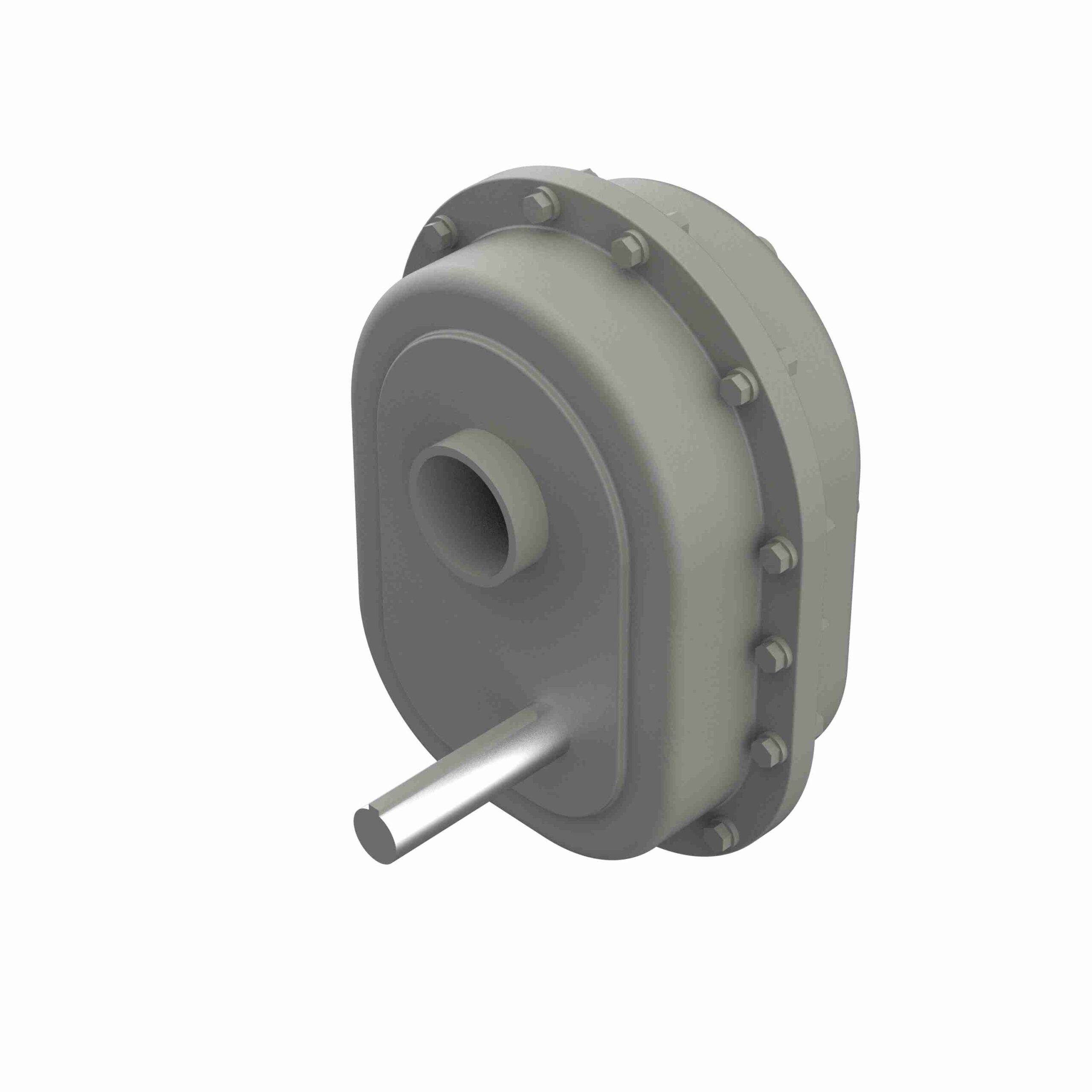

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 315SMTP35

SKU: PH0005 Category: Shaft Mounted Gearing

$30,971.43

Out of stock

Out of stock

Product Information
Specifications

Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
Options and Accessories: Complete range of motor mounts, belt guards, fan kits, backstops, and screw conveyor drive options.

Ratio:	35:1	Output Speed:	50
Input Torque:	36.013 in-Lbs @1750 input rpm, 1 HP	Input Speed:	1750
Efficiency:	80	Bolt Size (in):	0.625 in
Product Type:	TorqTaper Plus (SMTP)	Standards met:	AGMA
Housing Height (in):	26.35 in	Housing Width (in):	19.9 in
Housing Length (in):	14.5 in	Maximum Output Size (in):	3.9375 in
Maximum Output Bore:	3.9375	Input Style:	Shaft
Mounting Style:	Shaft mount	Gear Type:	Helical
Reducer Size:	315	Ratio Range:	30:1
Drive Type:	Torque Arm	Reduction:	Double
Maximum Output RPM:	50	Output Bore:	Tapered Bushing
Input Shaft Diameter:	2.125	Output Torque Rating (in-lb):	1260.48 in-Lbs @1750 input rpm, 1 HP in/lbs
Housing Material:	Cast Iron	Input Shaft Keyseat (in):	1/2 x 1/2 x 7 1/2 in
Output Shaft:	Tapered Bore	UPC:	662460500379
Weight:	474.00 LB	Packaged Length:	27.5 Inches
Packaged Width:	20 Inches	Packaged Height:	23.5 Inches
HTC:	8483.40.1000	Country of Origin:	United States of America
