- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, fan kits, backstops, and screw conveyor drive options.
307SMTP09

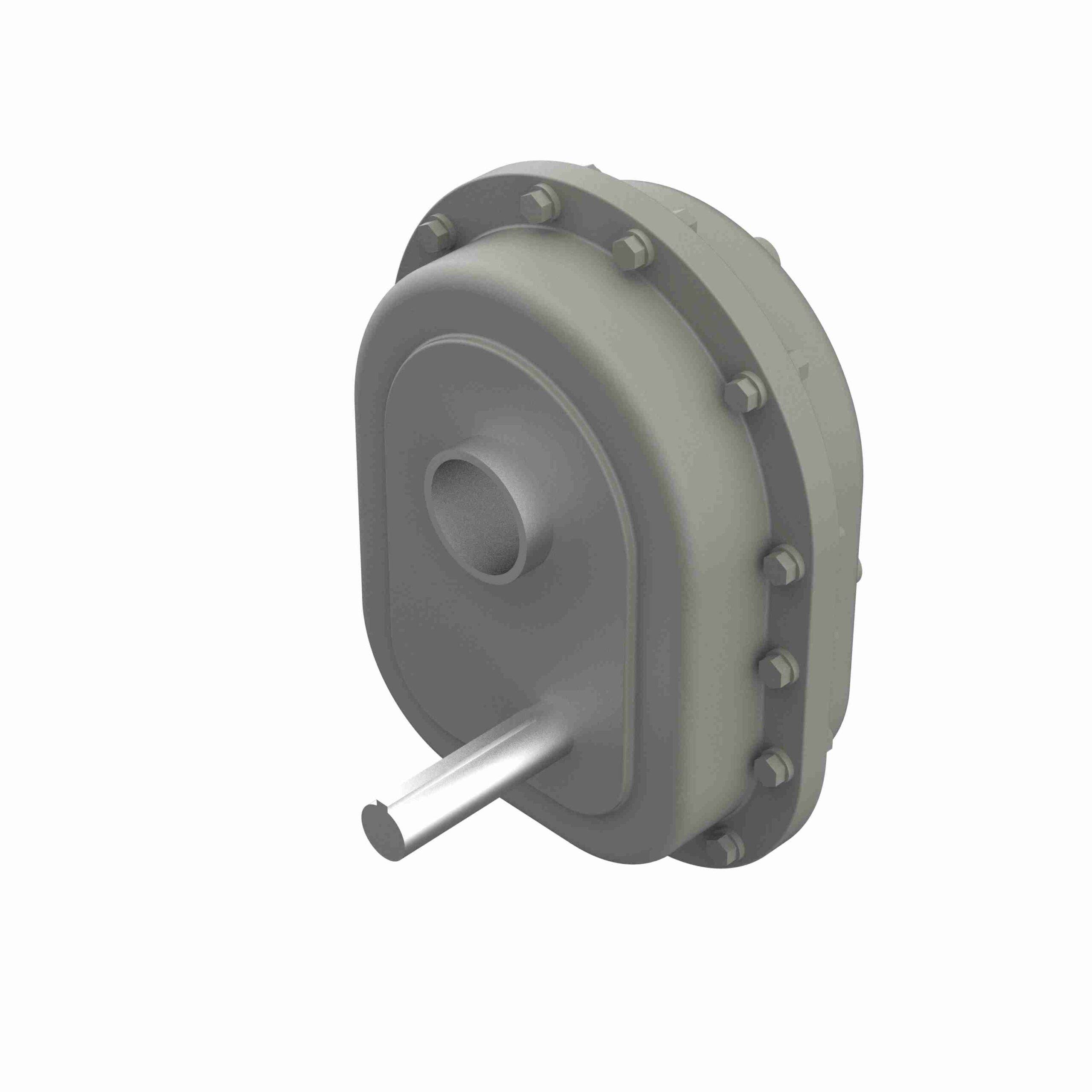

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 307SMTP09
$30,379.10
Out of stock
Out of stock
| Input Speed: | 1750 | Bolt Size (in): | 0.5 in |
|---|---|---|---|
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Product Type: | TorqTaper Plus (SMTP) |
| Output Speed: | 17 | Efficiency: | 80 |
| Ratio: | 9:1 | Standards met: | AGMA |
| Housing Height (in): | 24.37 in | Housing Width (in): | 19.04 in |
| Housing Length (in): | 12.57 in | Maximum Output Size (in): | 3.4375 in |
| Maximum Output Bore: | 3.4375 | Input Style: | Shaft |
| Ratio Range: | 10:1 | Gear Type: | Helical |
| Mounting Style: | Shaft mount | Reducer Size: | 307 |
| Drive Type: | Torque Arm | Reduction: | Double |
| Output Bore: | Tapered Bushing | Maximum Output RPM: | 200 |
| Input Shaft Diameter: | 2 | Output Torque Rating (in-lb): | 3707.29 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Input Shaft Keyseat (in): | 1/2 x 1/2 x 6 1/2 in | Output Shaft: | Tapered Bore |
| Housing Material: | Cast Iron | UPC: | 662460500256 |
| Weight: | 324.00 LB | Packaged Length: | 27.5 Inches |
| Packaged Width: | 20 Inches | Packaged Height: | 23.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
