- Spacer coupling with factory-assembled center section for easy assembly.
- Specifically engineered to meet API 610 specifications.
- MT (Medium Torque) disc packs for medium duty applications.
- Meet AGMA Class 9 balance off the shelf, and may be balanced to AGMA Class 10 or 11.
303 KD 2 SS700

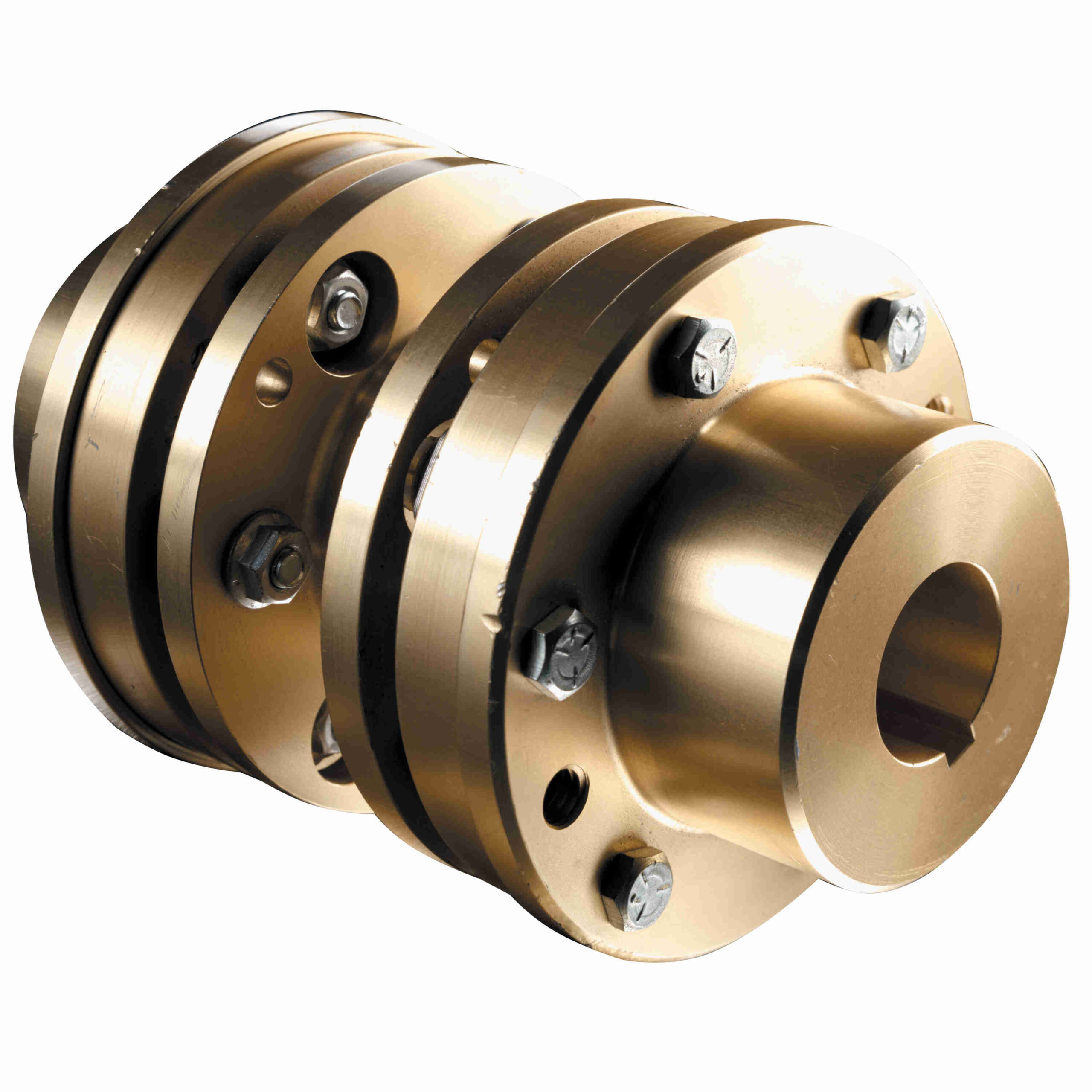

Kop-Flex Disc Coupling – Style KD2 – Size 303 – Rough Bore – 303 KD 2 SS700
Out of stock
| Stock C Dimension: | 7 | Total WR2 (lb-in2): | 989 psi |
|---|---|---|---|
| Coupling Size: | 303 | Outside Diameter (in): | 9.25 in |
| Axial Capacity (+/-): | 0.125 | Bore Type: | Rough Bore |
| Hub Material: | Carbon Steel | Total Length (Std Hub Post) (in): | 13.76 in |
| Style: | KD2 | Configuration: | 2 standard hubs |
| Length Through Bore (in): | 3.38 in | Length Through Bore standard hub (in): | 3.38 in |
| Torque Rating (in-lb): | 37, 800 in/lbs | Torque [Max] (ft-lb): | 6, 300 ft/lbs |
| Disc Coupling Type: | Spacer Coupling | Disc Shape: | Scalloped |
| Hub Diameter (in): | 6.75 in | Bore Size Min (in): | 1.5 in |
| UPC: | 662384150827 | Weight: | 123.45 LB |
