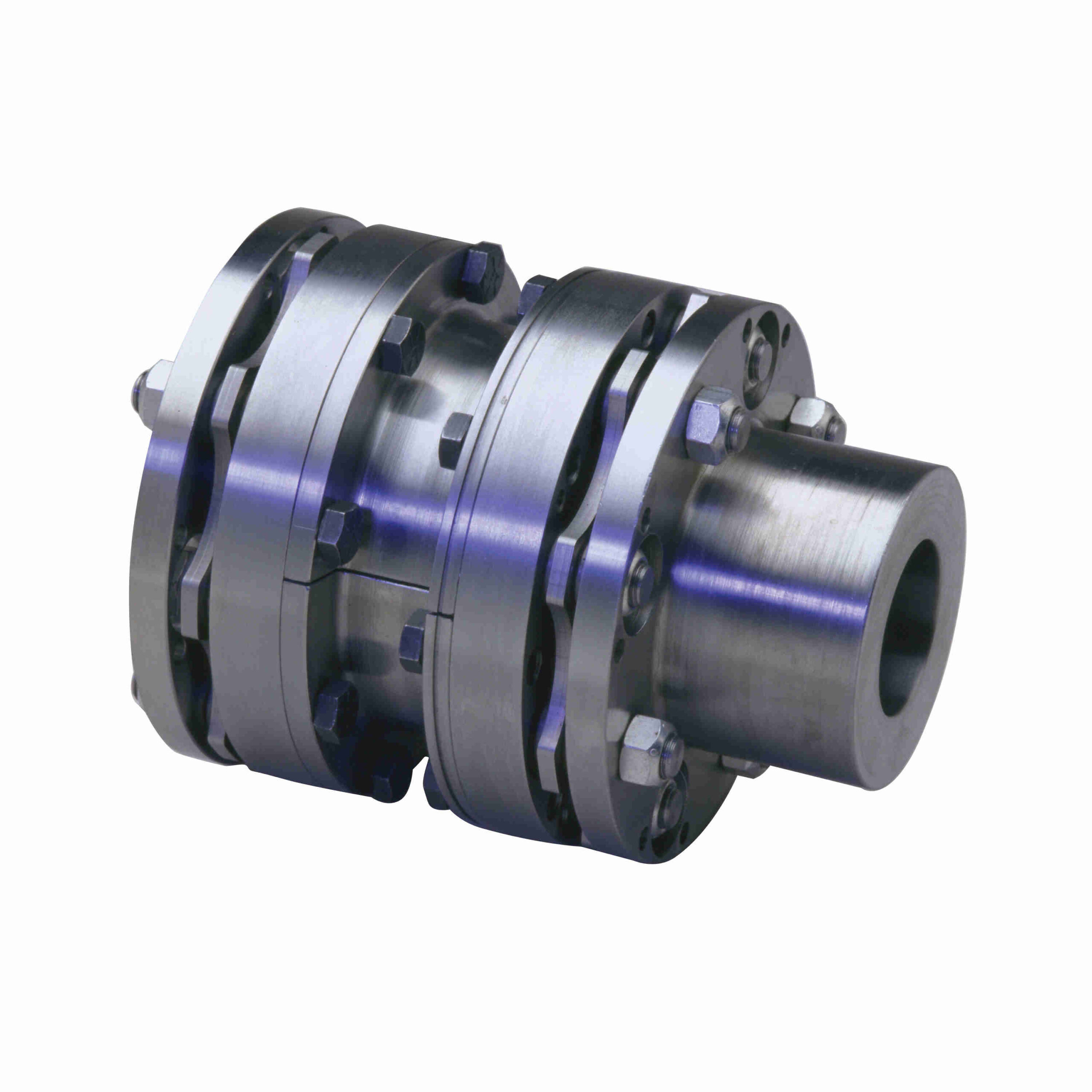

304 KD 10 SS

Close Coupled disc coupling design with reversible hubs to accommodate various shaft separations.
Semi-Unitized Disc Packs for ease of maintenance, replaceable without moving the connected equipment.
HS (High Torque, Semi-unitized) disc packs for medium and heavy duty applications.
Meet AGMA Class 8 balance off the shelf, and may be component balanced to AGMA Class 9.

Total Length (Std Hub Post) (in):	7.38 in	Coupling Size:	304
Hub Material:	Carbon Steel	Style:	KD10
Configuration:	2 standard hubs	Outside Diameter (in):	9 in
Bore Type:	Rough Bore	Axial Capacity (+/-):	0.17
Total WR2 (lb-in2):	916 psi	Total Length (One Hub Reverse) (in):	10.3 in
Torque [Max] (ft-lb):	14, 833 ft/lbs	Torque Rating (in-lb):	89, 000 in/lbs
Speed Max Balanced (rpm):	5, 100 rpm	Length Through Bore standard hub (in):	3.59 in
Hub Diameter (in):	5.25 in	Disc Shape:	Scalloped
Disc Coupling Type:	Close Coupled	Bore Size Min (in):	1.5 in
UPC:	662384153941	Weight:	100.36 LB
