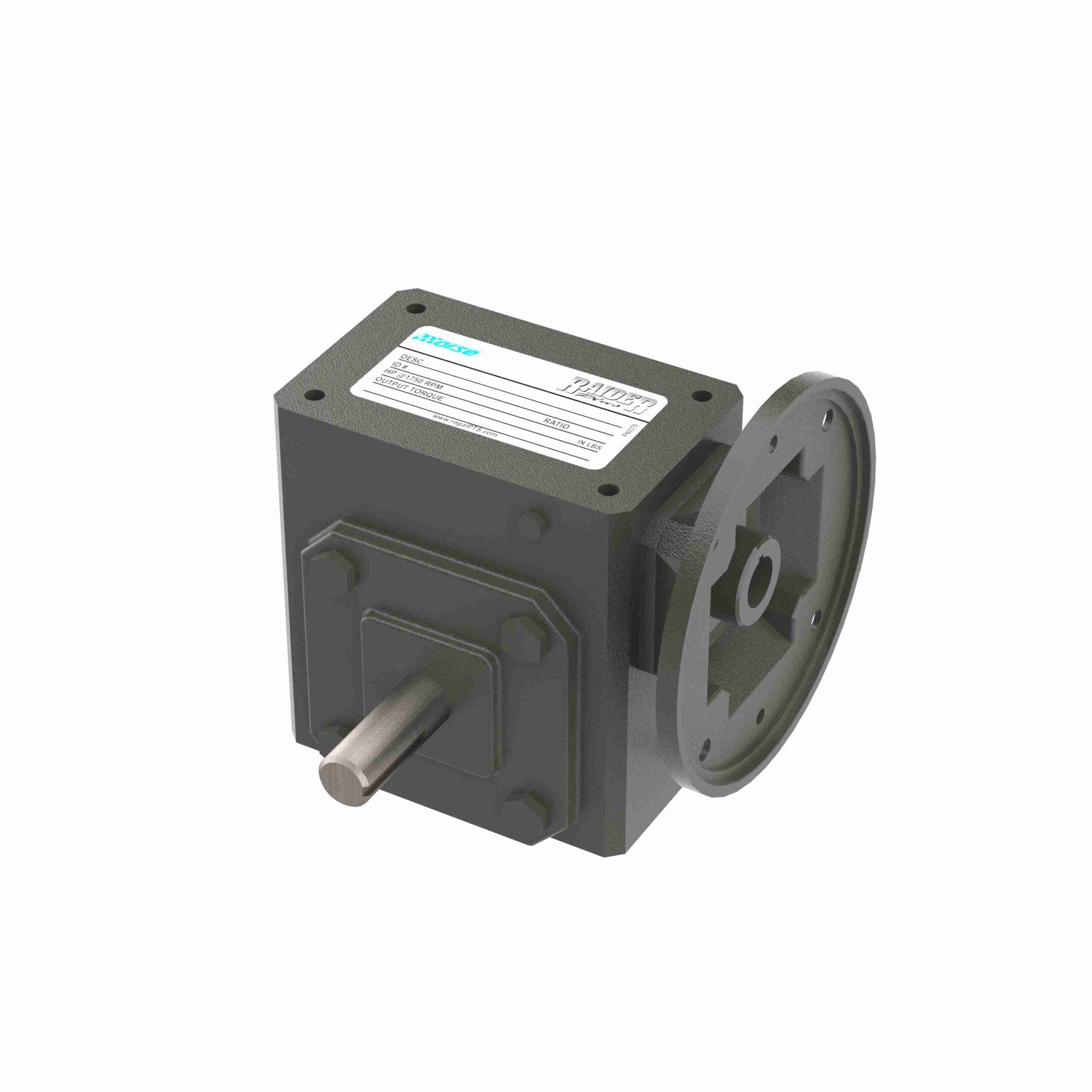

300Q180LR20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Keyway (C Face):	1/4 X 1/8	Thrust Rating - output shaft:	3410
Efficiency:	80	Reducer Style:	Standard
Input Speed:	1750	Ratio:	20:1
Shaft Seal Material:	Nitrile	Input Bore (C Face):	1.125
Motor Frame Size:	180TC	Center Distance (in):	3
Input HP @ 1750 RPM:	3.6	Output Shaft Assembly Code:	D
No. of Gear Reductions:	Single	Gear Type:	Worm
Mounting Style:	No Base	Output Key:	1/4 X 2.25
Output RPM:	87.5	Ratio Range:	20:1
Output Shaft Orientation:	LR	Reducer:	Worm - Right Angle
Input RPM:	1, 75	Product Type:	Worm Speed Reducer
Output Diameter (in):	1.250 in	Series Code:	Raider
Frame Size:	180TC	Input Diameter (in):	1.125 in
Assembly:	Q-LR	Model Code:	300Q
Input Style:	C-Face Quill	Service Factor:	1
Output Shaft Direction:	Double	Housing Material:	Cast Iron
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	987 lb
Output Torque Rating (in-lb):	2454 in-lbs @1750 input RPM in/lbs	UPC:	6, 62288E+11
Weight:	68.00 LB	Packaged Length:	19.38 Inches
Packaged Width:	15.11 Inches	Packaged Height:	15 Inches
