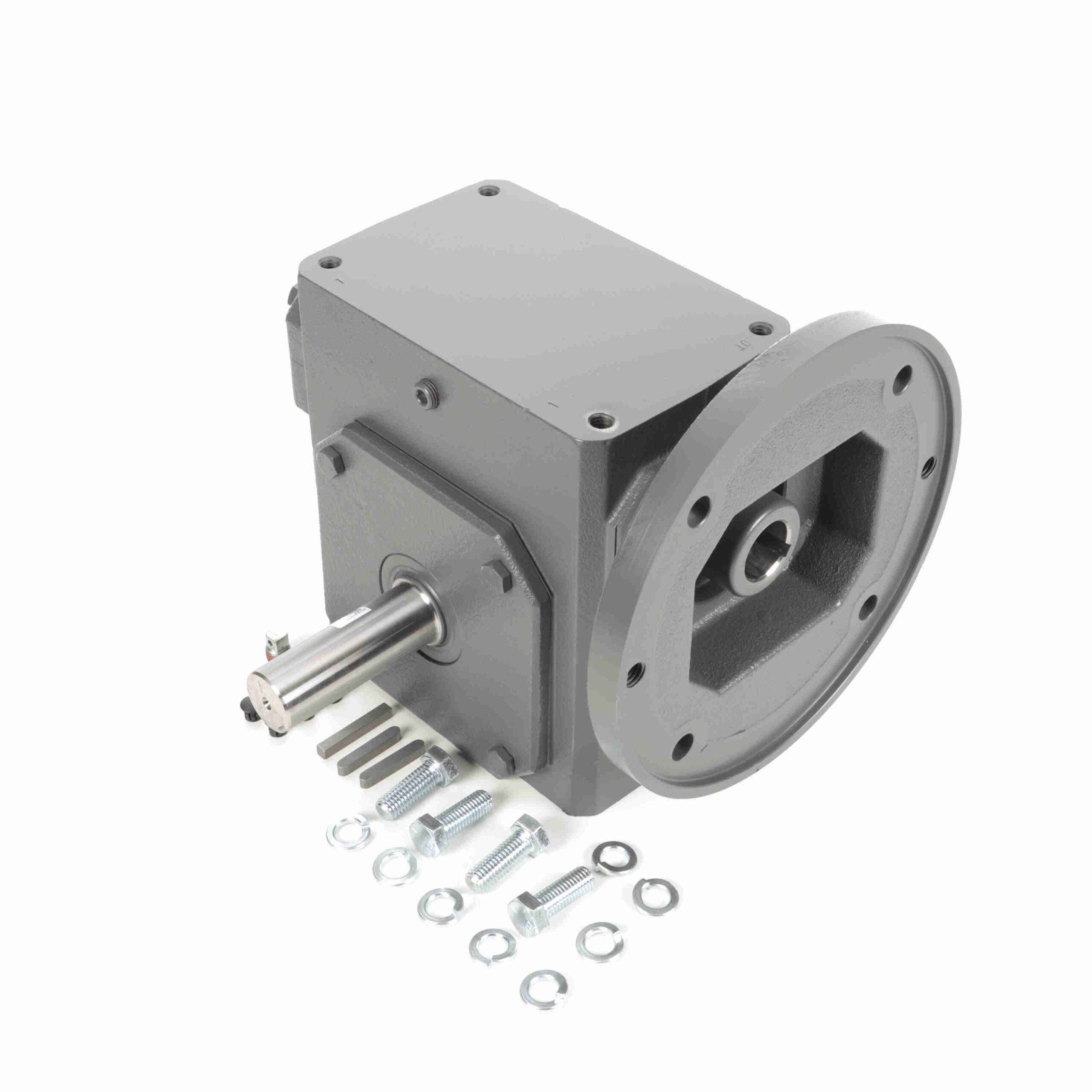

300Q180LR10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Keyway (C Face):	1/4 X 1/8	Motor Frame Size:	180TC
Efficiency:	80	Thrust Rating - output shaft:	3322
Reducer Style:	Standard	Input Bore (C Face):	1.125
Ratio:	10:1	Input Speed:	1750
Shaft Seal Material:	Nitrile	No. of Gear Reductions:	Single
Input HP @ 1750 RPM:	6.04	Series Code:	Raider
Gear Type:	Worm	Mounting Style:	No Base
Input Style:	C-Face Quill	Ratio Range:	10:1
Center Distance (in):	3	Service Factor:	1
Output Key:	1/4 X 2.25	Output Diameter (in):	1.250 in
Product Type:	Worm Speed Reducer	Assembly:	Q-LR
Output Shaft Orientation:	LR	Output RPM:	175
Input Diameter (in):	1.125 in	Reducer:	Worm - Right Angle
Output Shaft Assembly Code:	D	Model Code:	300Q
Input RPM:	1, 75	Frame Size:	180TC
Output Shaft Direction:	Double	Overhung Load Rating (Output Shaft(lb)):	987 lb
Output Torque Rating (in-lb):	2037 in-lbs @1750 input RPM in/lbs	Housing Material:	Cast Iron
Output Shaft:	Solid Shaft	UPC:	6, 62288E+11
Weight:	68.00 LB
