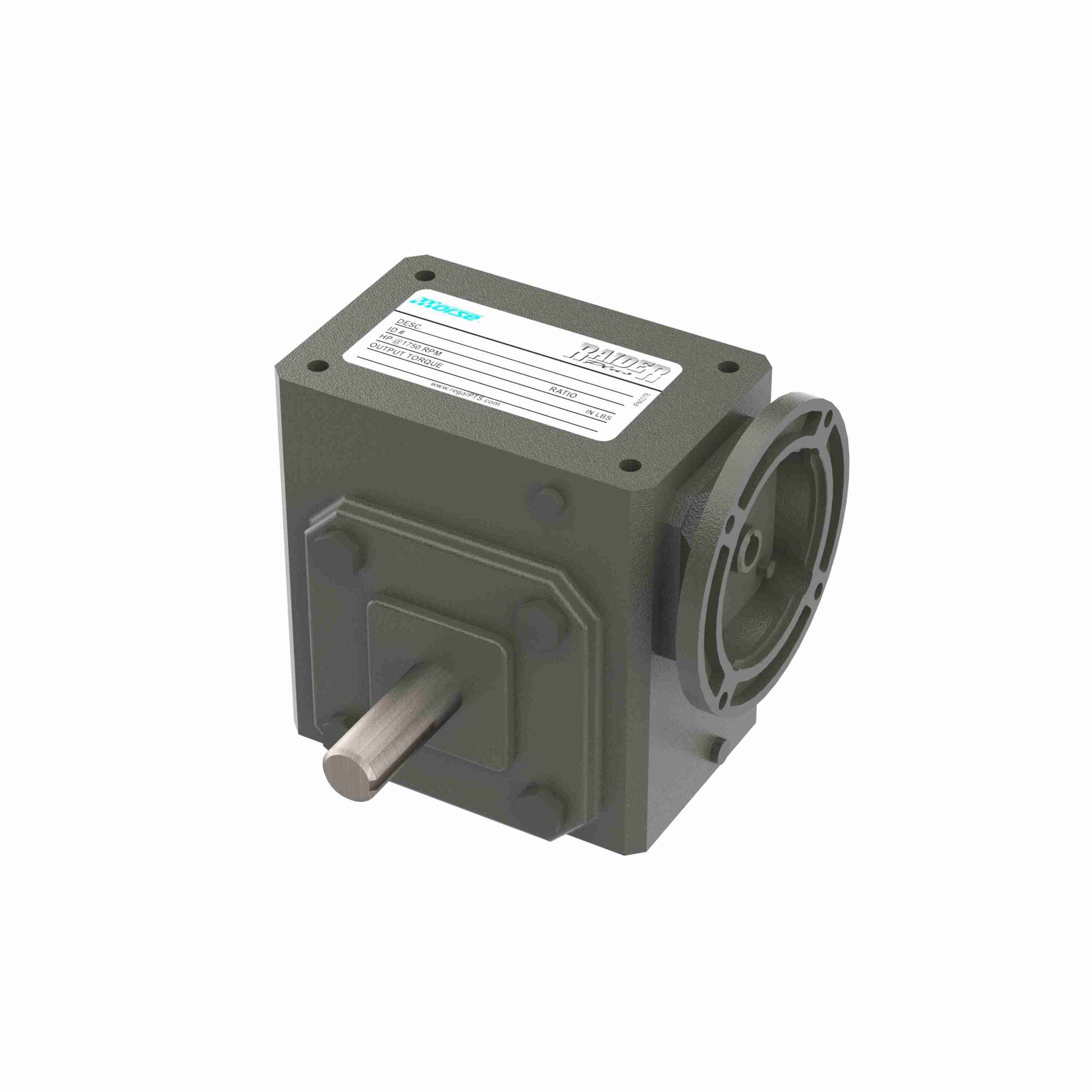

300Q140LR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Input Bore (C Face):	0.875
Motor Frame Size:	140TC	Reducer Style:	Standard
Ratio:	30:1	Thrust Rating - output shaft:	3410
Efficiency:	80	Shaft Seal Material:	Nitrile
Input Keyway (C Face):	3/16 X 3/32	Output Diameter (in):	1.250 in
Gear Type:	Worm	Series Code:	Raider
Ratio Range:	30:1	Assembly:	Q-LR
Product Type:	Worm Speed Reducer	Output Shaft Orientation:	LR
Model Code:	300Q	Input Diameter (in):	0.875 in
Service Factor:	1	Reducer:	Worm - Right Angle
Center Distance (in):	3	Output Key:	1/4 X 2.25
Frame Size:	140TC	Input HP @ 1750 RPM:	2.63
Input RPM:	1, 75	No. of Gear Reductions:	Single
Output Shaft Assembly Code:	D	Output RPM:	58.3
Input Style:	C-Face Quill	Mounting Style:	No Base
Output Shaft Direction:	Double	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	987 lb	Output Torque Rating (in-lb):	2519 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	68.00 LB	Packaged Length:	19.38 Inches
Packaged Width:	15.11 Inches	Packaged Height:	15 Inches
