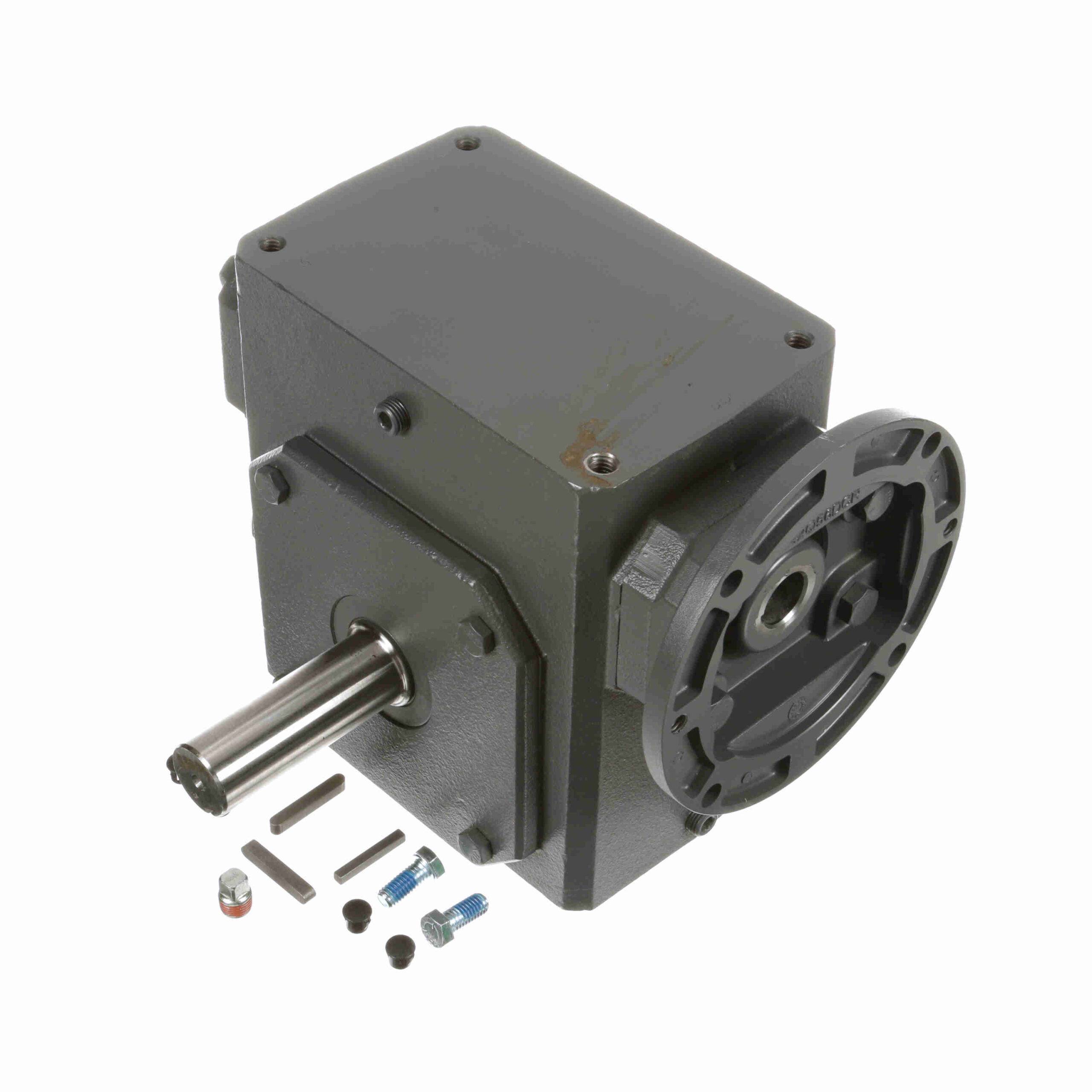

300Q140LR60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Thrust Rating - output shaft:	3410	Input Speed:	1750
Input Keyway (C Face):	3/16 X 3/32	Shaft Seal Material:	Nitrile
Ratio:	60:1	Motor Frame Size:	140TC
Efficiency:	80	Input Bore (C Face):	0.875
Reducer Style:	Standard	Manufacturer Reducer Size:	300
Maximum Input HP:	1.64 hp @ 1750 rpm	Model Code:	300Q
No. of Gear Reductions:	Single	Ratio Range:	60:1
Assembly:	Q-LR	Gear Type:	Worm
Service Factor:	1	Frame Size:	140TC
Input Diameter (in):	0.875 in	Output Key:	1/4 X 2.25
Input HP @ 1750 RPM:	1.36	Mounting Style:	No Base
Series Code:	Raider	Reducer:	Worm - Right Angle
Input Style:	C-Face Quill	Output Shaft Assembly Code:	D
Input RPM:	1, 75	Product Type:	Worm Speed Reducer
Center Distance (in):	3	Output Diameter (in):	1.250 in
Output RPM:	29.1	Output Shaft Orientation:	LR
Output Shaft Direction:	Double	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	987 lb	Output Torque Rating (in-lb):	2413 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	68.00 LB
