- Largest selection in the Industry – Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6″ to 8.5″ covering up to 25 horsepower.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
2VP60X 1 1/8

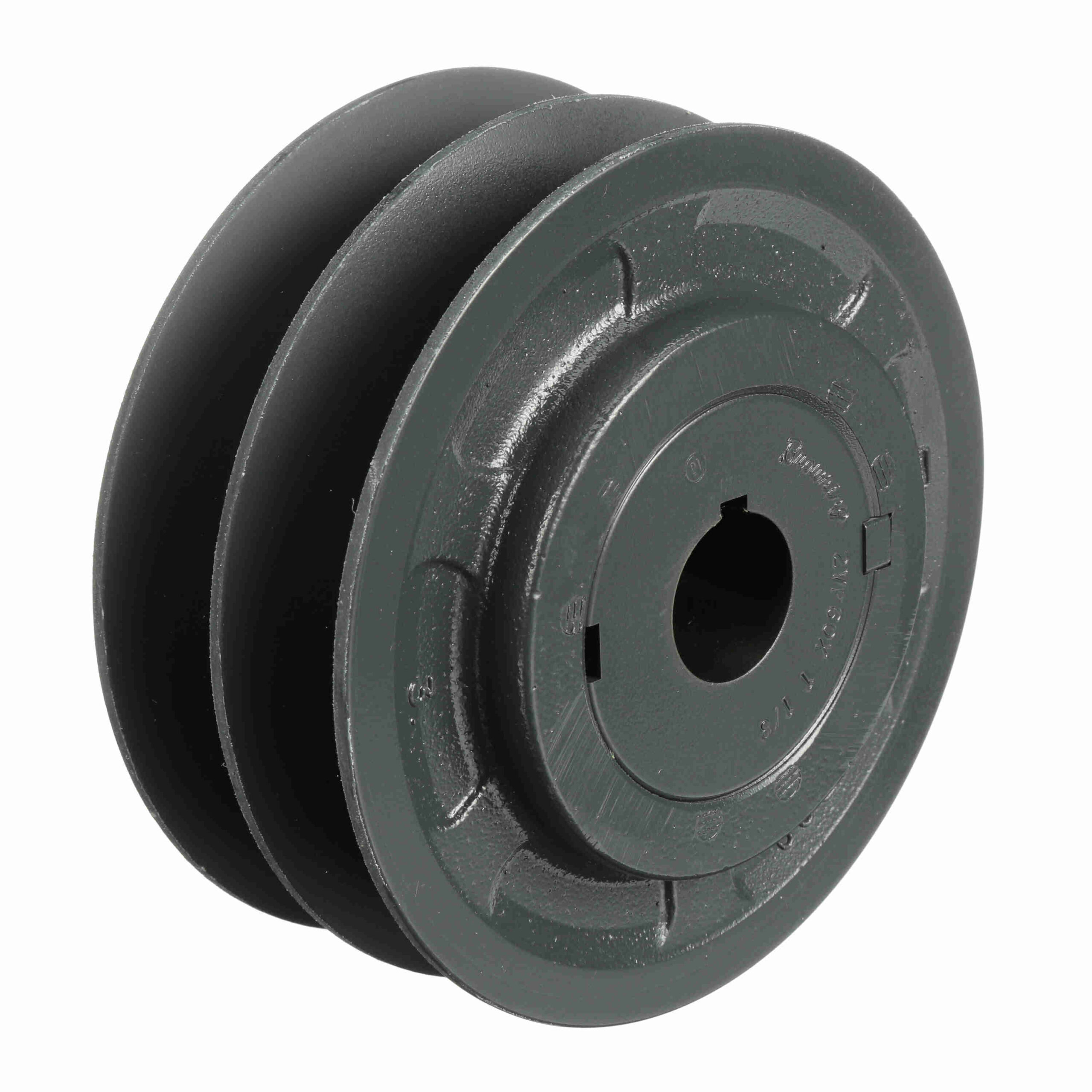

Browning 2 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave – 2VP60X 1 1/8
$249.84
Out of stock
Out of stock
| Turns Open (5V) (For Min PD): | 6 | Number of Grooves: | 2 |
|---|---|---|---|
| Type of Bore: | Finished | Turns Open (A or 4L) (For Min PD): | 5 |
| Turns Open (B or 5L) (For Min PD): | 6 | Bore (in): | 1.125 in |
| Material: | Cast Iron | Outside Diameter (in): | 6 in |
| Product Type: | FHP Variable Pitch Sheaves | Belt Section: | 4L or A, 5L or B, 5V |
| Pitch Diameter (B or 5L) (Max): | 5.5 | Pitch Diameter (B or 5L) (Min): | 4.5 |
| Keyway Size: | 1/4 x 1/8 | UPC: | 662289255528 |
| Weight: | 10.65 LB | Packaged Length: | 6.63 Inches |
| Packaged Width: | 6.63 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
