- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
2BK32X5/8

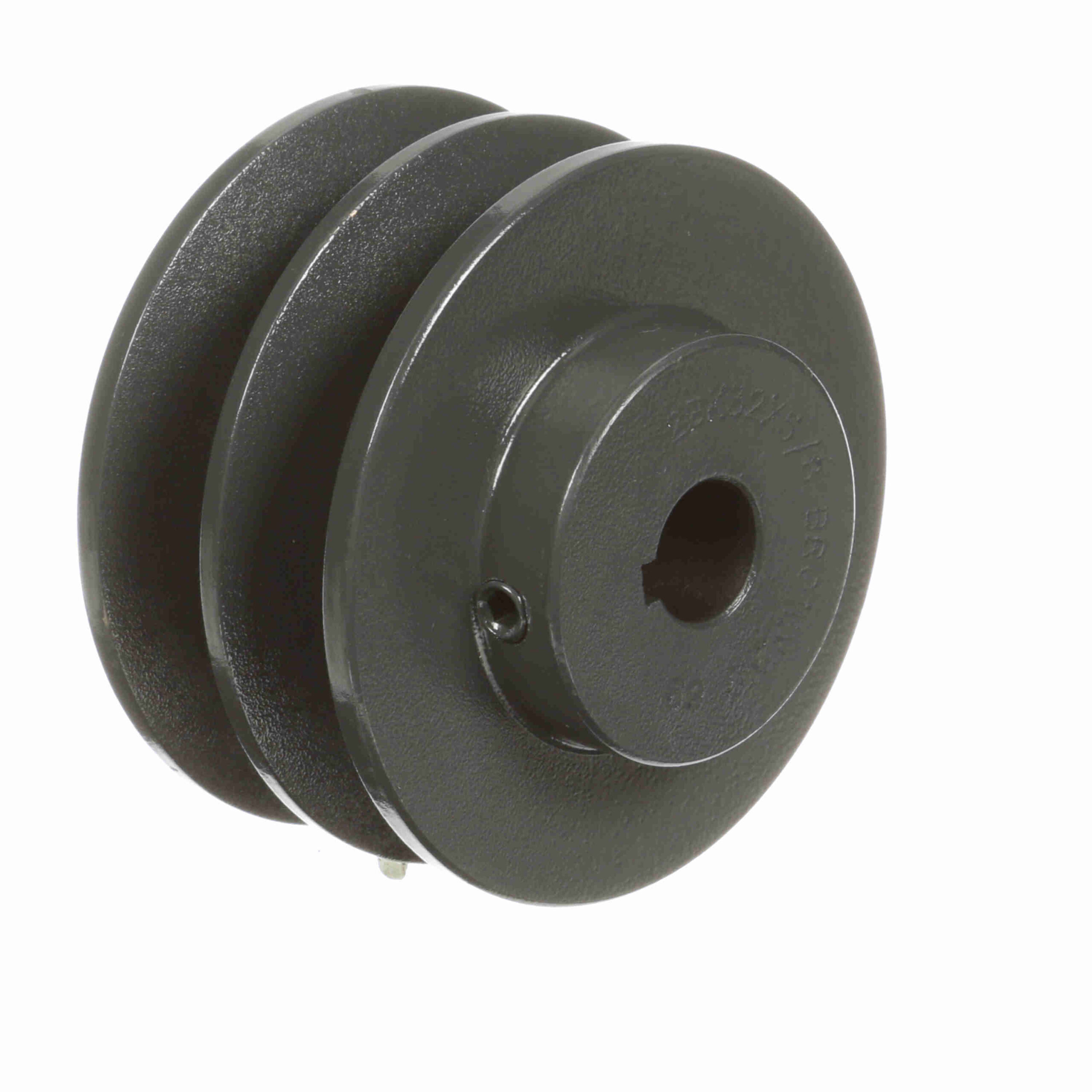

Browning 2 Groove Cast Iron FHP – Finished Bore Sheave – 2BK32X5/8
$280.92
Out of stock
Out of stock
| Pitch Diameter (B): | 3.3 | Model Name: | 2BK_Sheave_Master2 |
|---|---|---|---|
| Pitch Diameter (A): | 2.8 | Number of Grooves: | 2 |
| Outside Diameter (in): | 3.35 in | Material: | Cast Iron |
| Bore (in): | 0.625 in | Belt Section: | 4L or A, 5L or B |
| Product Type: | FHP - Finished Bore | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .1875 | Overall Width (in): | 2.21875 |
| Pulley Construction: | Plain | Face Width (in): | 1.75 |
| Set Screw Tightening Torque (in-lb): | 165 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| UPC: | 662289160952 | Weight: | 2.67 LB |
| Packaged Length: | 4.50 Inches | Packaged Width: | 4.30 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
