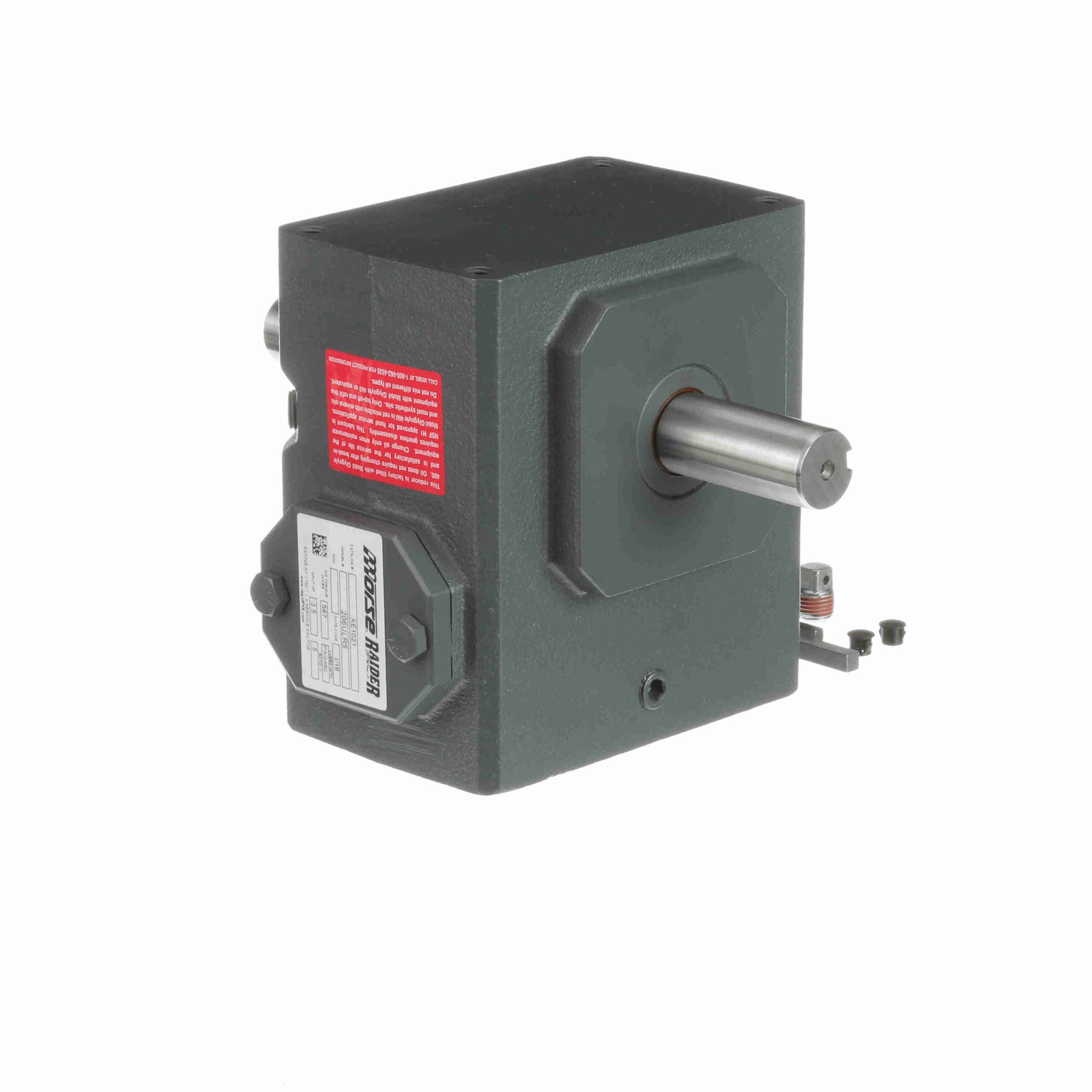

262ULR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Length:	1.63	Key Sq.:	0.188
Efficiency:	80	Reducer Style:	Standard
Ratio:	30:1	Thrust Rating - output shaft:	2956
Shaft Seal Material:	Nitrile	Input Speed:	1750
Mounting Style:	No Base	Output Shaft Orientation:	LR
Output Key:	1/4 X 2.00	Output Shaft Assembly Code:	D
Ratio Range:	30:1	Series Code:	Raider
No. of Gear Reductions:	Single	Input Style:	Solid Shaft
Center Distance (in):	2.63	Reducer:	Worm - Right Angle
Input Keyway:	3/16 X 1.88 in	Assembly:	U-LR
Input Diameter (in):	0.75 in	Input HP @ 1750 RPM:	1.7
Output Diameter (in):	1.125 in	Gear Type:	Worm
Service Factor:	1	Model Code:	262U
Input RPM:	1, 75	Product Type:	Worm Speed Reducer
Output RPM:	58.3	Output Shaft Direction:	Double
Overhung Load Rating (Output Shaft(lb)):	1, 295 lb	Output Shaft:	Solid Shaft
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	1833 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	52.00 LB
