- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262UH15 115

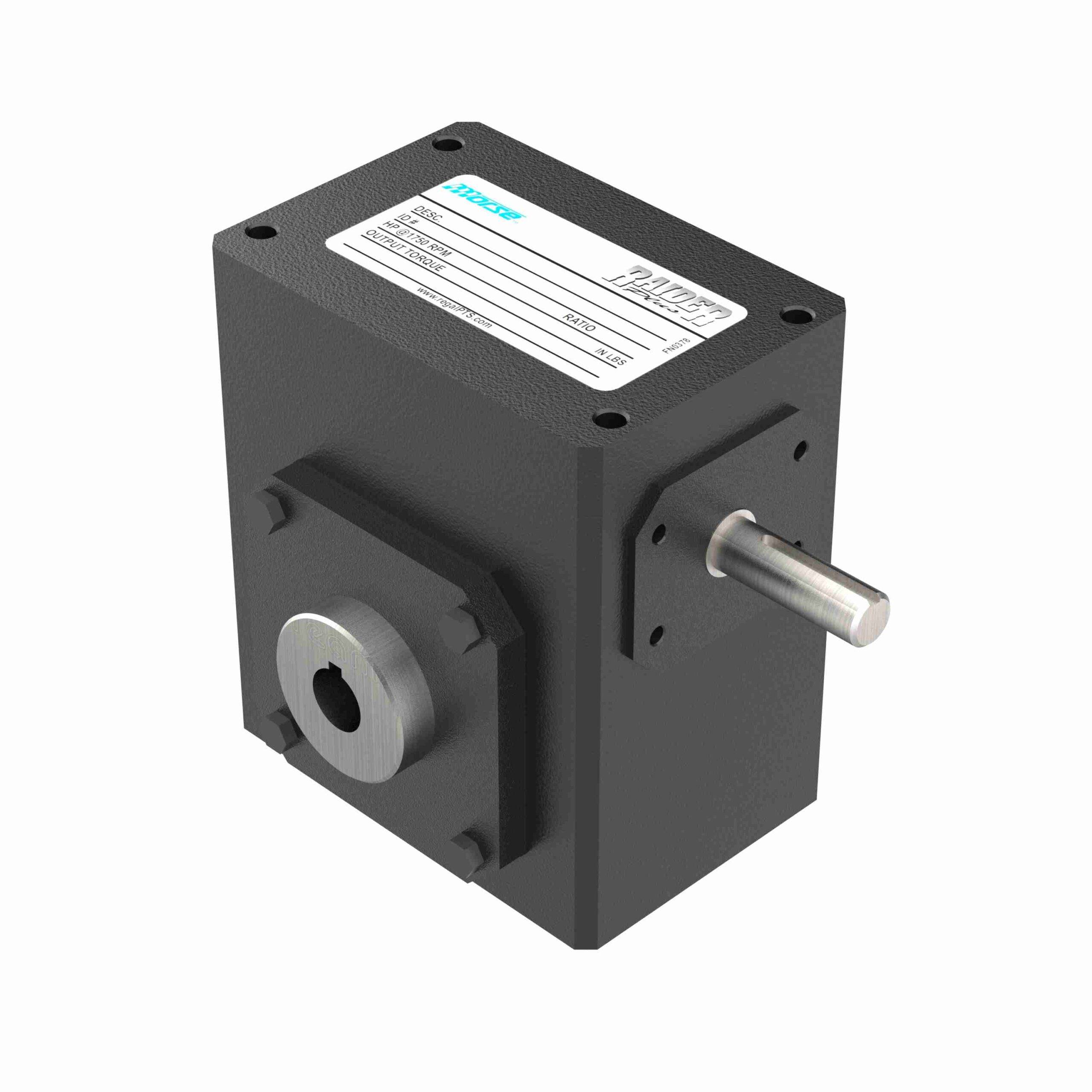

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262UH15 115
$1,683.81
Out of stock
Out of stock
| Reducer Style: | Standard | Input Speed: | 1750 |
|---|---|---|---|
| Thrust Rating - output shaft: | 2069 | Efficiency: | 80 |
| Key Length: | 1.63 | Ratio: | 15:1 |
| Key Sq.: | 0.1875 | Product Type: | Worm Speed Reducer |
| Input HP @ 1750 RPM: | 3.614 | Center Distance (in): | 2.63 |
| Gear Type: | Worm | Series Code: | Raider |
| Service Factor: | 1 | Ratio Range: | 15:1 |
| Input Diameter (in): | 0.75 in | Input Style: | Shaft |
| No. of Gear Reductions: | Single | Mounting Style: | Shaft Mt |
| Output Diameter (in): | 1.938 in | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb | Output Shaft: | Hollow Bore |
| Output Torque Rating (in-lb): | 1737 in-lbs @1750 input RPM in/lbs | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 51.00 LB |
| Packaged Length: | 16 Inches | Packaged Width: | 12.25 Inches |
| Packaged Height: | 11.75 Inches |
