- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262UH10 115

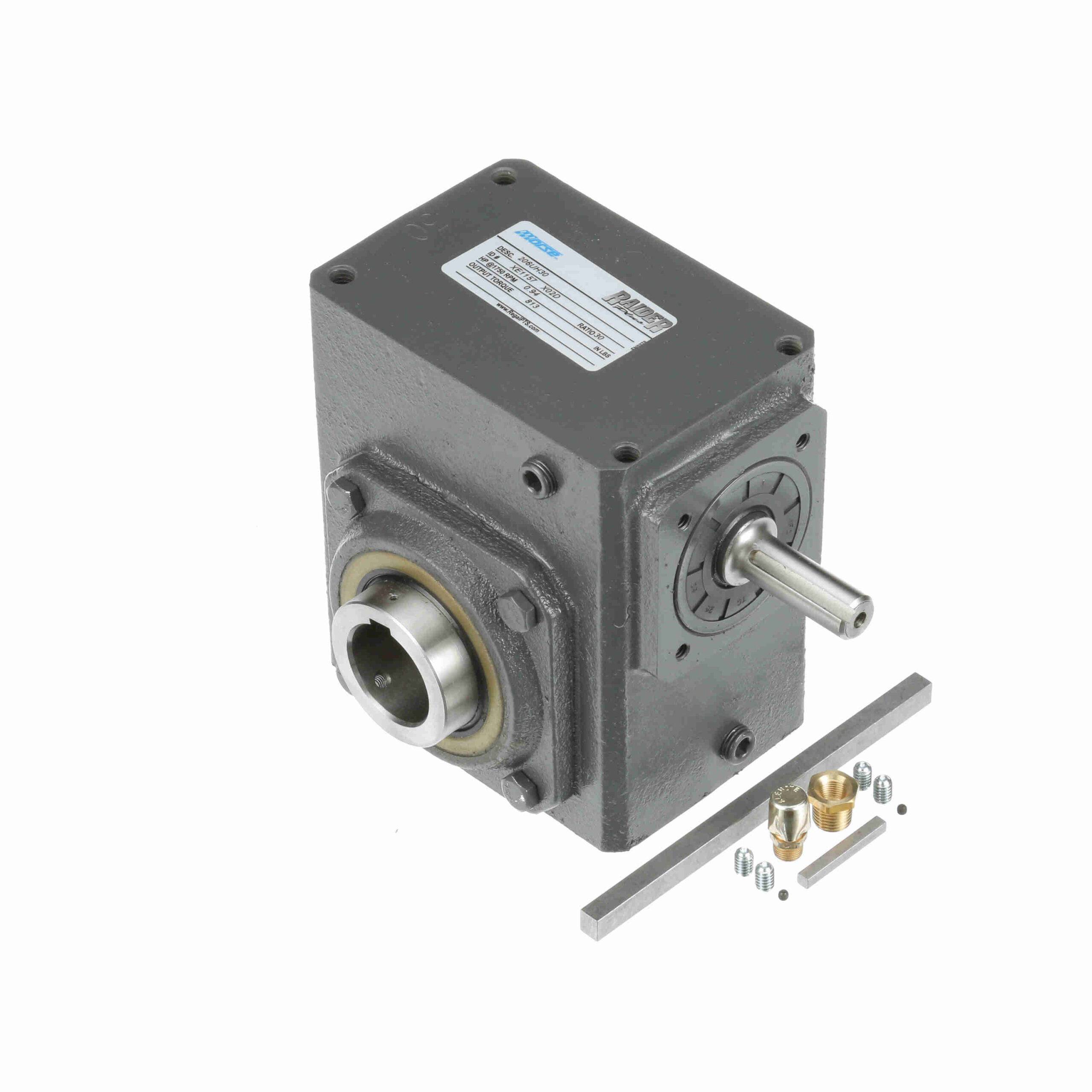

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262UH10 115
$1,878.02
Out of stock
Out of stock
| Key Length: | 1.63 | Key Sq.: | 0.1875 |
|---|---|---|---|
| Reducer Style: | Standard | Ratio: | 10:1 |
| Input Speed: | 1750 | Efficiency: | 80 |
| Thrust Rating - output shaft: | 1762 | Input HP @ 1750 RPM: | 4.956 |
| Service Factor: | 1 | Center Distance (in): | 2.63 |
| Product Type: | Worm Speed Reducer | Output Diameter (in): | 1.938 in |
| Series Code: | Raider | No. of Gear Reductions: | Single |
| Ratio Range: | 10:1 | Gear Type: | Worm |
| Mounting Style: | Shaft Mt | Input Diameter (in): | 0.75 in |
| Input Style: | Shaft | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 1475 in-lbs @1750 input RPM in/lbs | Output Shaft: | Hollow Bore |
| UPC: | 6, 62288E+11 | Weight: | 51.00 LB |
