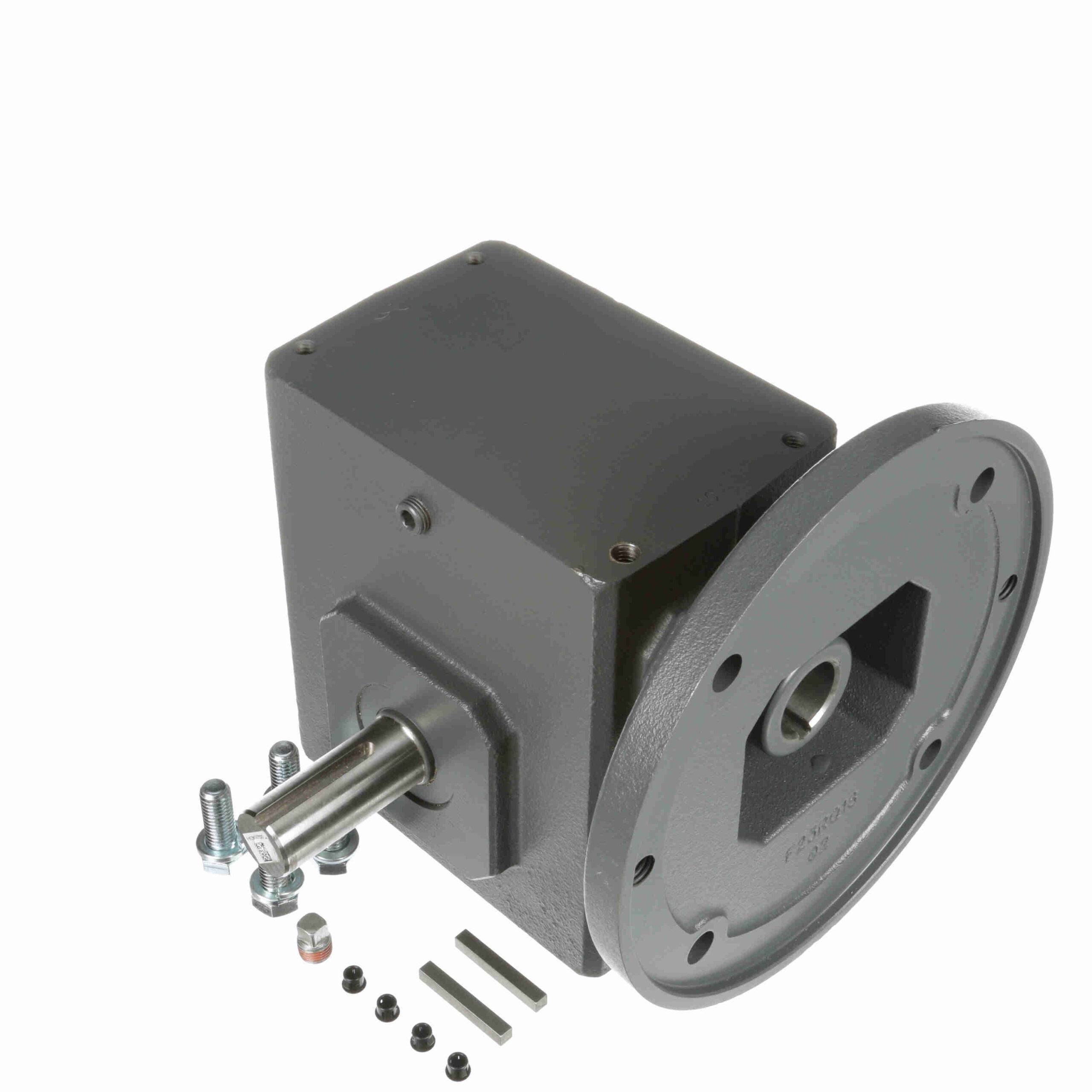

262Q180L10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Input Bore (C Face):	1.125
Shaft Seal Material:	Nitrile	Ratio:	10:1
Reducer Style:	Standard	Thrust Rating - output shaft:	1976
Input Keyway (C Face):	1/4 X 1/8	Motor Frame Size:	180TC
Input Speed:	1750	Frame Size:	180TC
Output RPM:	175	Output Key:	1/4 X 2.00
Output Diameter (in):	1.125 in	Input RPM:	1, 750
Service Factor:	1	Output Shaft Assembly Code:	L
Model Code:	262Q	Input Style:	C-Face Quill
Product Type:	Worm Speed Reducer	Input Diameter (in):	1.125 in
Ratio Range:	10:01	Center Distance (in):	2.63
Reducer:	Worm - Right Angle	Mounting Style:	No Base
No. of Gear Reductions:	Single	Series Code:	Raider
Assembly:	Q-L	Gear Type:	Worm
Input HP @ 1750 RPM:	4.07	Output Shaft Direction:	Left
Overhung Load Rating (Output Shaft(lb)):	1, 295 lb	Housing Material:	Cast Iron
Output Torque Rating (in-lb):	1475 in-lbs @1750 input RPM in/lbs	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	56.00 LB
