- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q180H10 115

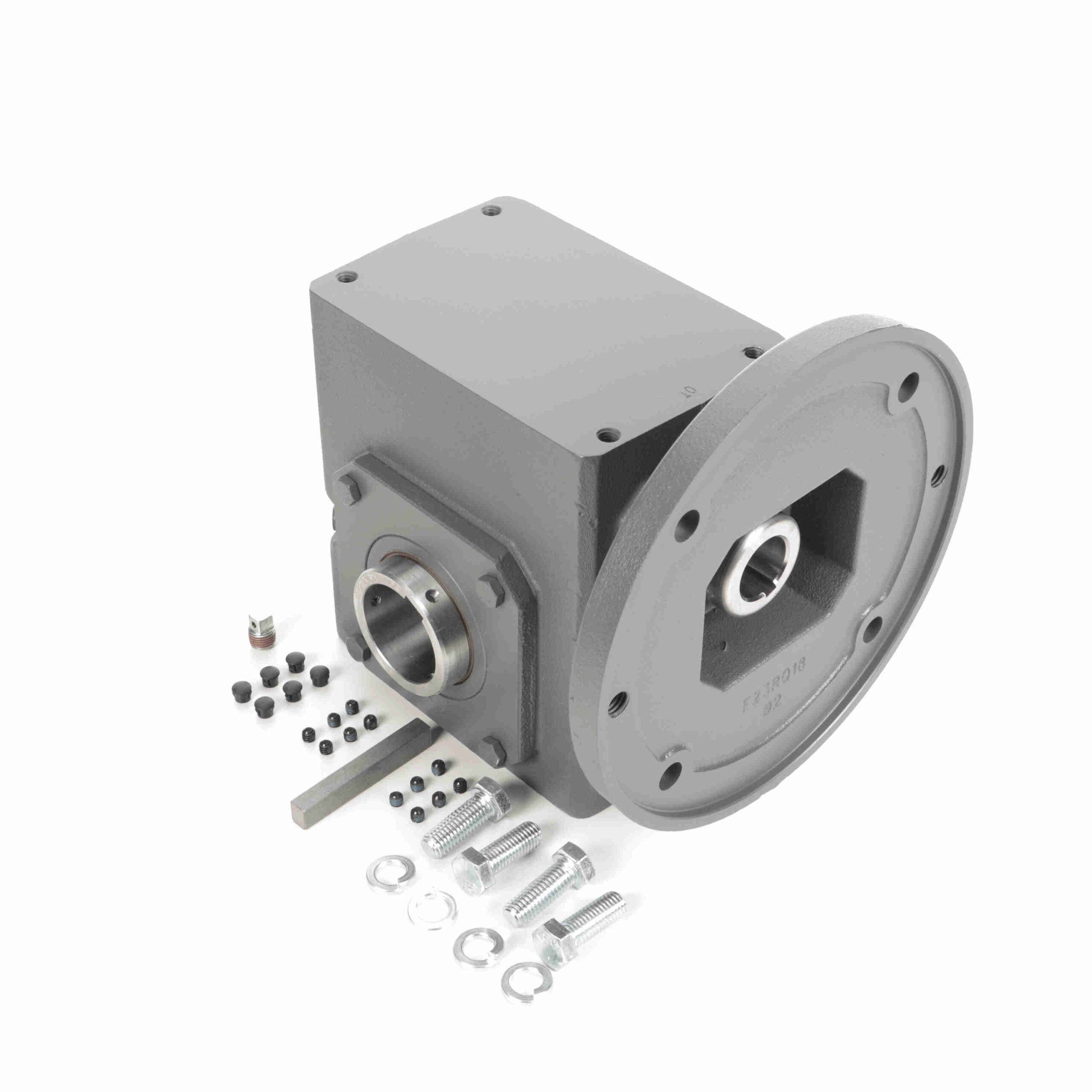

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q180H10 115
$2,478.86
Out of stock
Out of stock
| Efficiency: | 80 | Thrust Rating - output shaft: | 1762 |
|---|---|---|---|
| Motor Frame Size: | 180TC | Ratio: | 10:1 |
| Input Bore (C Face): | 1.13 | Reducer Style: | Standard |
| Input Keyway (C Face): | 1/4x1/8 | Input Speed: | 1750 |
| No. of Gear Reductions: | Single | Gear Type: | Worm |
| Series Code: | Raider | Service Factor: | 1 |
| Input Diameter (in): | 1.125 in | Input Style: | C-Face Quill |
| Frame Size: | 180TC | Input HP @ 1750 RPM: | 4.956 |
| Center Distance (in): | 2.63 | Output Diameter (in): | 1.938 in |
| Product Type: | Worm Speed Reducer | Ratio Range: | 10:01 |
| Mounting Style: | Shaft Mt | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb | Output Torque Rating (in-lb): | 1475 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| UPC: | 6, 62289E+11 | Weight: | 55.00 LB |
