- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237UR50

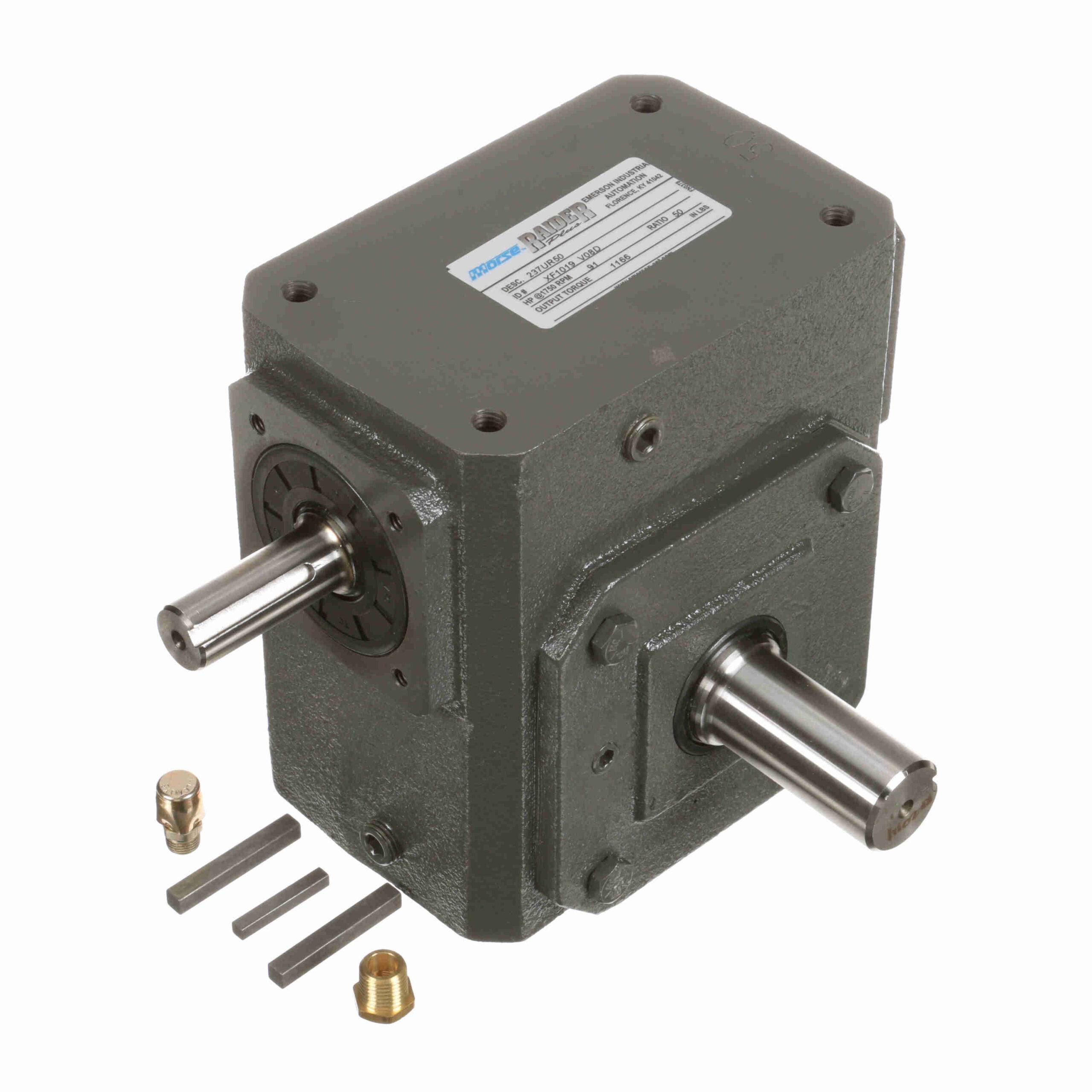

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237UR50
$1,298.59
Out of stock
Out of stock
| Shaft Seal Material: | Nitrile | Efficiency: | 80 |
|---|---|---|---|
| Thrust Rating - output shaft: | 2305 | Key Sq.: | 0.1875 |
| Ratio: | 50:1 | Reducer Style: | Standard |
| Input Speed: | 1750 | Key Length: | 1.63 |
| Maximum Input HP: | 1.14 hp @ 1750 rpm | Manufacturer Reducer Size: | 237 |
| Service Factor: | 1 | Series Code: | Raider |
| Input Keyway: | 3/16 X 1.31 in | Ratio Range: | 50:1 |
| Product Type: | Worm Speed Reducer | Input HP @ 1750 RPM: | 0.91 |
| Input RPM: | 1, 750 | Output Shaft Assembly Code: | R |
| Center Distance (in): | 2.38 | Input Diameter (in): | 0.75 in |
| Input Style: | Solid Shaft | No. of Gear Reductions: | Single |
| Assembly: | U-R | Output RPM: | 35 |
| Output Diameter (in): | 1.125 in | Gear Type: | Worm |
| Output Key: | 1/4 X 1.75 | Mounting Style: | No Base |
| Model Code: | 237U | Reducer: | Worm - Right Angle |
| Output Shaft Direction: | Right | Output Torque Rating (in-lb): | 1432 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Solid Shaft |
| Overhung Load Rating (Output Shaft(lb)): | 843 lb | UPC: | 6, 62288E+11 |
| Weight: | 40.00 LB |
