- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q140L25

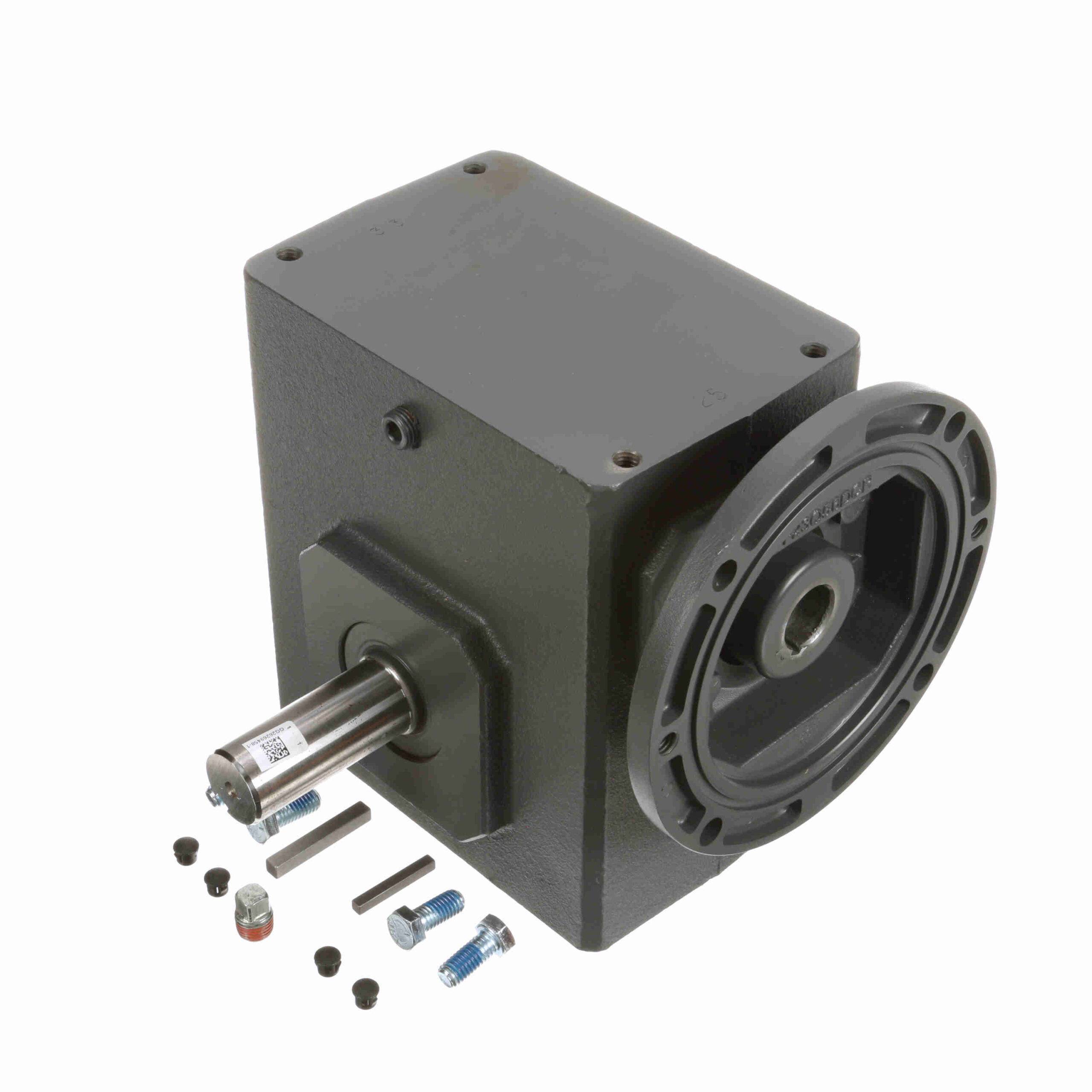

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q140L25
$1,922.05
Out of stock
Out of stock
| Input Keyway (C Face): | 3/16 X 1.63 | Motor Frame Size: | 140TC |
|---|---|---|---|
| Input Speed: | 1750 | Ratio: | 25:1 |
| Efficiency: | 80 | Input Bore (C Face): | 0.88 |
| Thrust Rating - output shaft: | 2091 | Reducer Style: | Standard |
| Mounting Style: | No Base | Center Distance (in): | 2.63 |
| No. of Gear Reductions: | Single | Ratio Range: | 25:1 |
| Series Code: | Raider | Output Diameter (in): | 1.125 in |
| Frame Size: | 140TC | Gear Type: | Worm |
| Input HP @ 1750 RPM: | 2.487 | Service Factor: | 1 |
| Input Diameter (in): | 0.875 in | Product Type: | Worm Speed Reducer |
| Input Style: | C-Face Quill | Output Shaft Direction: | Left |
| Housing Material: | Cast Iron | Output Shaft: | Shaft |
| Output Torque Rating (in-lb): | 1869 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb |
| UPC: | 6, 62289E+11 | Weight: | 56.00 LB |
