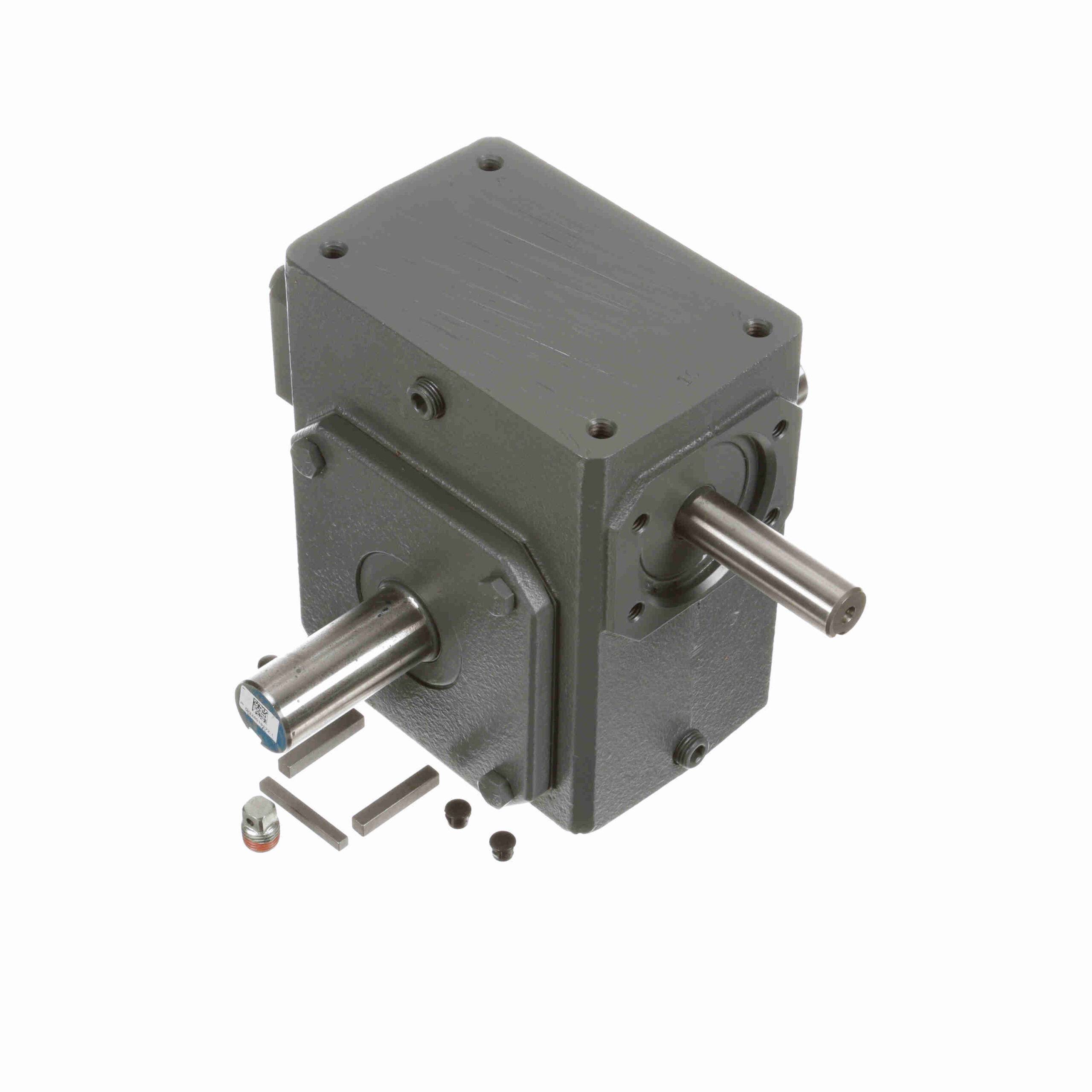

237ULR10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Ratio:	10:1	Efficiency:	80
Reducer Style:	Standard	Input Speed:	1750
Key Sq.:	0.1875	Key Length:	1.63
Shaft Seal Material:	Nitrile	Thrust Rating - output shaft:	1714
Input HP @ 1750 RPM:	3.34	Model Code:	237U
Output Key:	1/4 X 1.75	Input Diameter (in):	0.75 in
Output Diameter (in):	1.125 in	No. of Gear Reductions:	Single
Output RPM:	175	Series Code:	Raider
Output Shaft Orientation:	LR	Reducer:	Worm - Right Angle
Service Factor:	1	Input RPM:	1, 75
Input Style:	Solid Shaft	Output Shaft Assembly Code:	D
Mounting Style:	No Base	Input Keyway:	3/16 X 1.31 in
Gear Type:	Worm	Center Distance (in):	2.38
Assembly:	U-LR	Ratio Range:	10:01
Product Type:	Worm Speed Reducer	Output Shaft Direction:	Double
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	843 lb
Output Torque Rating (in-lb):	1172 in-lbs @1750 input RPM in/lbs	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	40.00 LB
