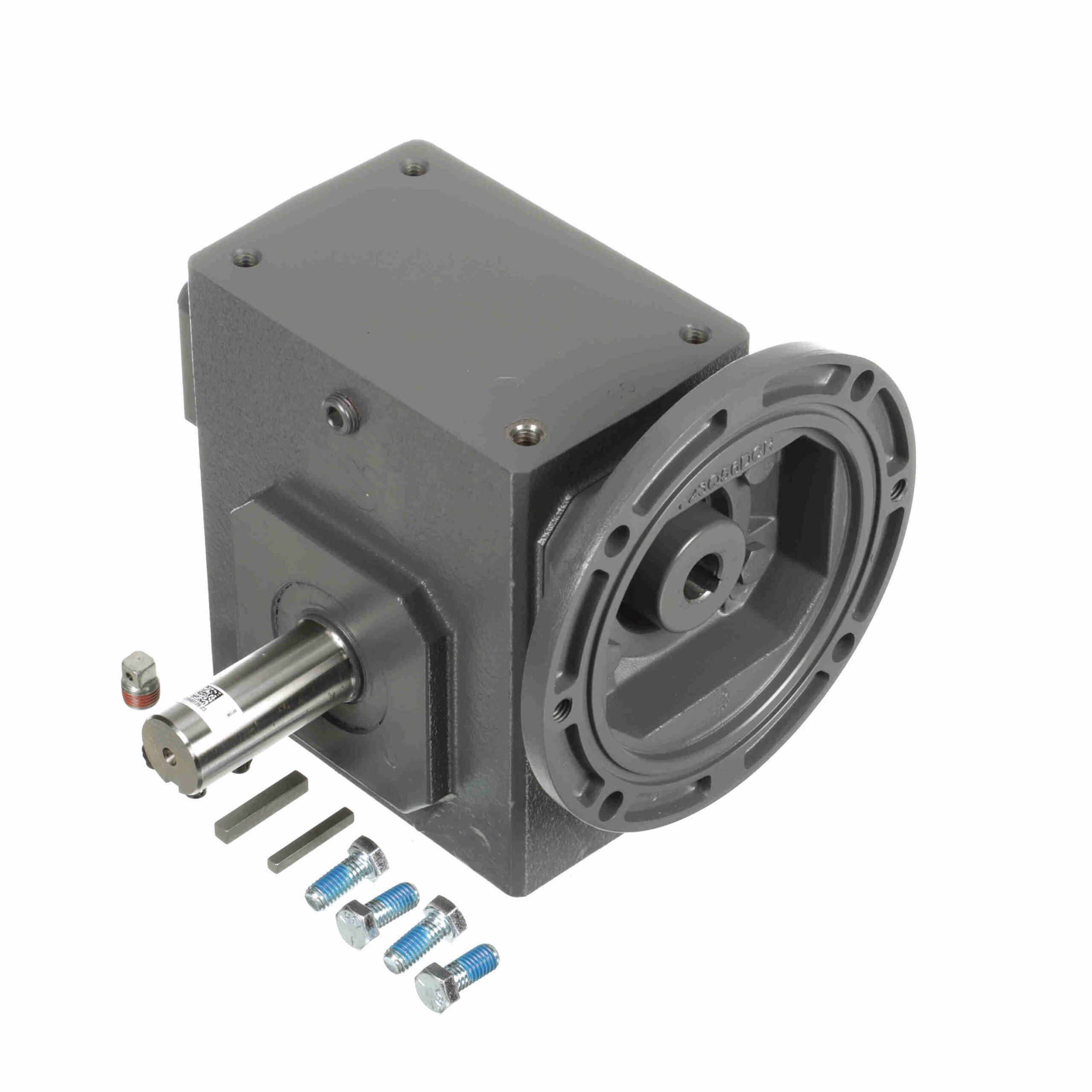

237Q56L60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Reducer Style:	Standard
Input Keyway (C Face):	3/16 X 3/32	Ratio:	60:1
Input Bore (C Face):	0.625	Motor Frame Size:	56C
Shaft Seal Material:	Nitrile	Efficiency:	80
Thrust Rating - output shaft:	2305	Series Code:	Raider
Product Type:	Worm Speed Reducer	Mounting Style:	No Base
Output Shaft Assembly Code:	L	Output Diameter (in):	1.125 in
No. of Gear Reductions:	Single	Assembly:	Q-L
Input RPM:	1, 750	Ratio Range:	60:1
Input HP @ 1750 RPM:	0.76	Service Factor:	1
Model Code:	237Q	Frame Size:	56C
Output RPM:	29.1	Output Key:	1/4 X 1.75
Reducer:	Worm - Right Angle	Gear Type:	Worm
Input Diameter (in):	0.625 in	Input Style:	C-Face Quill
Center Distance (in):	2.38	Output Shaft Direction:	Left
Overhung Load Rating (Output Shaft(lb)):	843 lb	Output Shaft:	Solid Shaft
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	1418 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	34.00 LB
