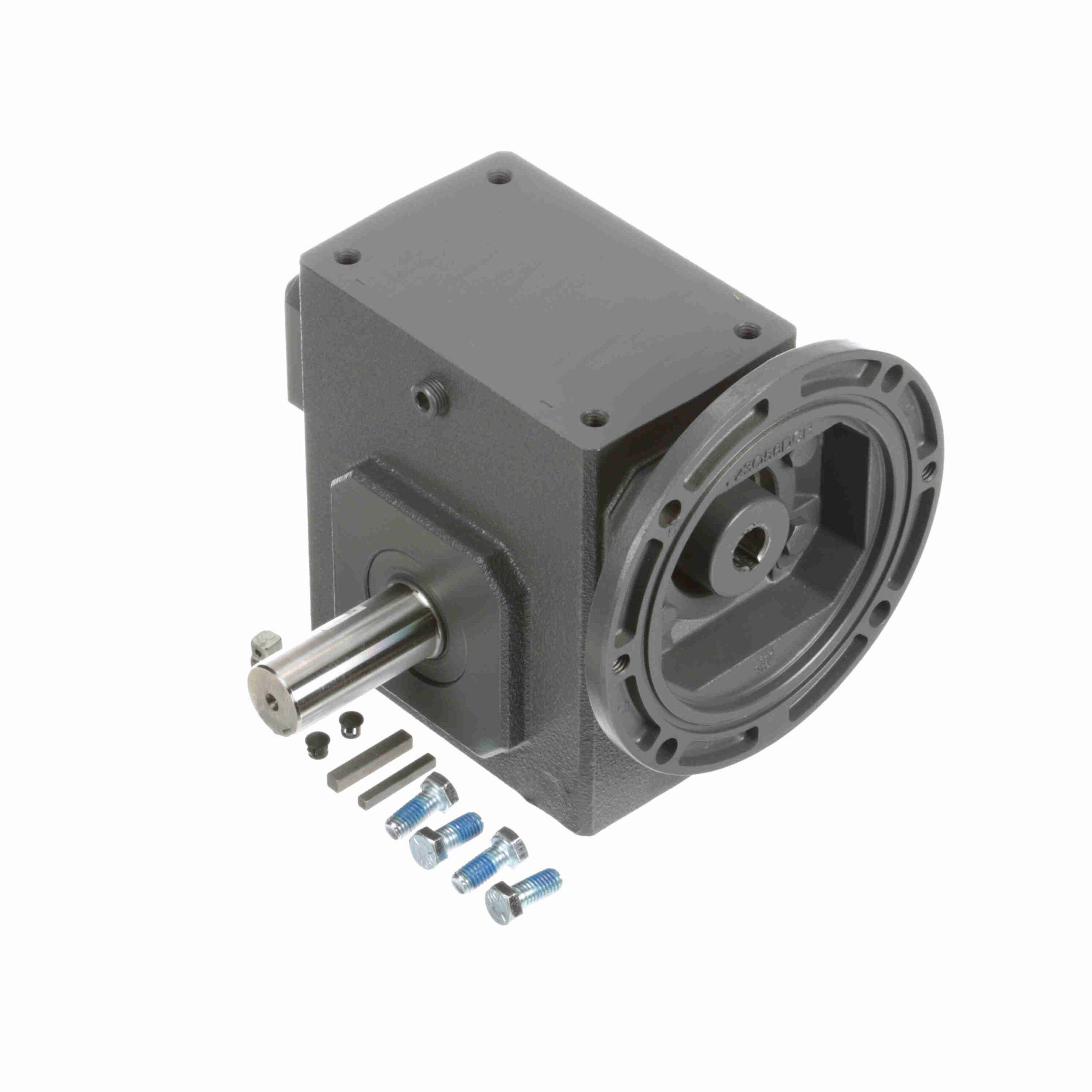

237Q56L40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Motor Frame Size:	56C	Thrust Rating - output shaft:	2305
Shaft Seal Material:	Nitrile	Ratio:	40:1
Efficiency:	80	Input Keyway (C Face):	3/16 X 3/32
Input Bore (C Face):	0.625	Reducer Style:	Standard
Input Speed:	1750	Product Type:	Worm Speed Reducer
Output Shaft Assembly Code:	L	Input HP @ 1750 RPM:	1.14
Ratio Range:	40:1	Gear Type:	Worm
Frame Size:	56C	Service Factor:	1
Input RPM:	1, 750	Mounting Style:	No Base
Center Distance (in):	2.38	No. of Gear Reductions:	Single
Output Key:	1/4 X 1.75	Model Code:	237Q
Series Code:	Raider	Input Style:	C-Face Quill
Assembly:	Q-L	Input Diameter (in):	0.625 in
Output RPM:	43.7	Output Diameter (in):	1.125 in
Reducer:	Worm - Right Angle	Output Shaft Direction:	Left
Output Torque Rating (in-lb):	1433 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	843 lb
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	45.00 LB
