- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q56H15 107

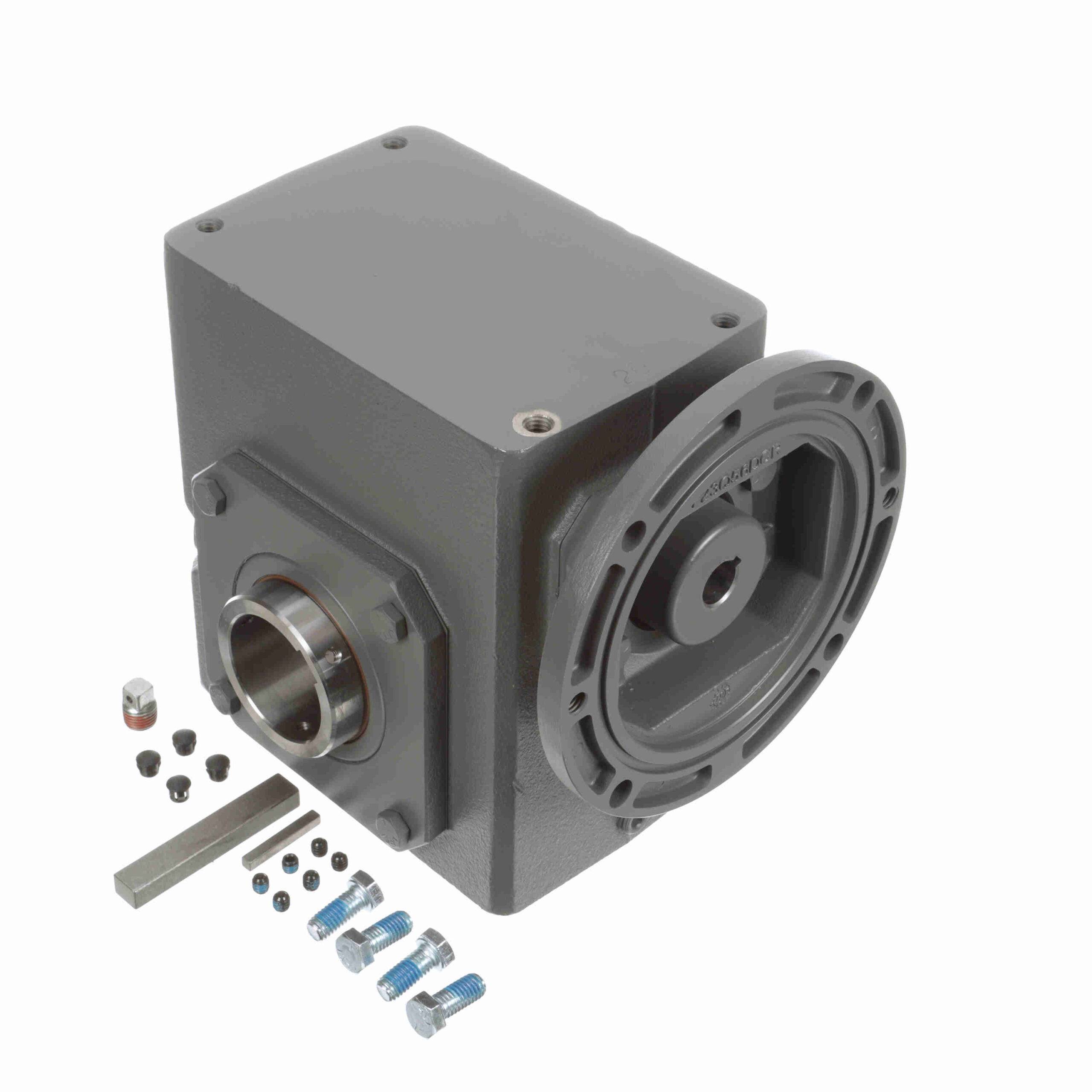

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56H15 107
$1,795.21
Out of stock
Out of stock
| Motor Frame Size: | 56C | Ratio: | 15:1 |
|---|---|---|---|
| Input Bore (C Face): | 0.625 | Input Speed: | 1750 |
| Efficiency: | 80 | Input Keyway (C Face): | 3/16 x 3/32 |
| Thrust Rating - output shaft: | 2091 | Reducer Style: | Standard |
| Manufacturer Reducer Size: | 237 | Maximum Input HP: | 2.77 hp @ 1750 rpm |
| Ratio Range: | 15:1 | Center Distance (in): | 2.38 |
| Mounting Style: | Shaft Mt | Product Type: | Worm Speed Reducer |
| Input Diameter (in): | 0.625 in | Series Code: | Raider |
| Frame Size: | 56C | Output Diameter (in): | 1.500 in |
| Service Factor: | 1 | No. of Gear Reductions: | Single |
| Input Style: | C-Face Quill | Input HP @ 1750 RPM: | 2.77 |
| Gear Type: | Worm | Output Shaft Direction: | L or R |
| Output Shaft: | Hollow Bore | Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb |
| Output Torque Rating (in-lb): | 1318 in-lbs @1750 input RPM in/lbs | Housing Material: | Cast Iron |
| UPC: | 6, 62289E+11 | Weight: | 32.17 LB |
| Packaged Length: | 15 Inches | Packaged Width: | 11.5 Inches |
| Packaged Height: | 11.9 Inches |
