- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q56H40 104

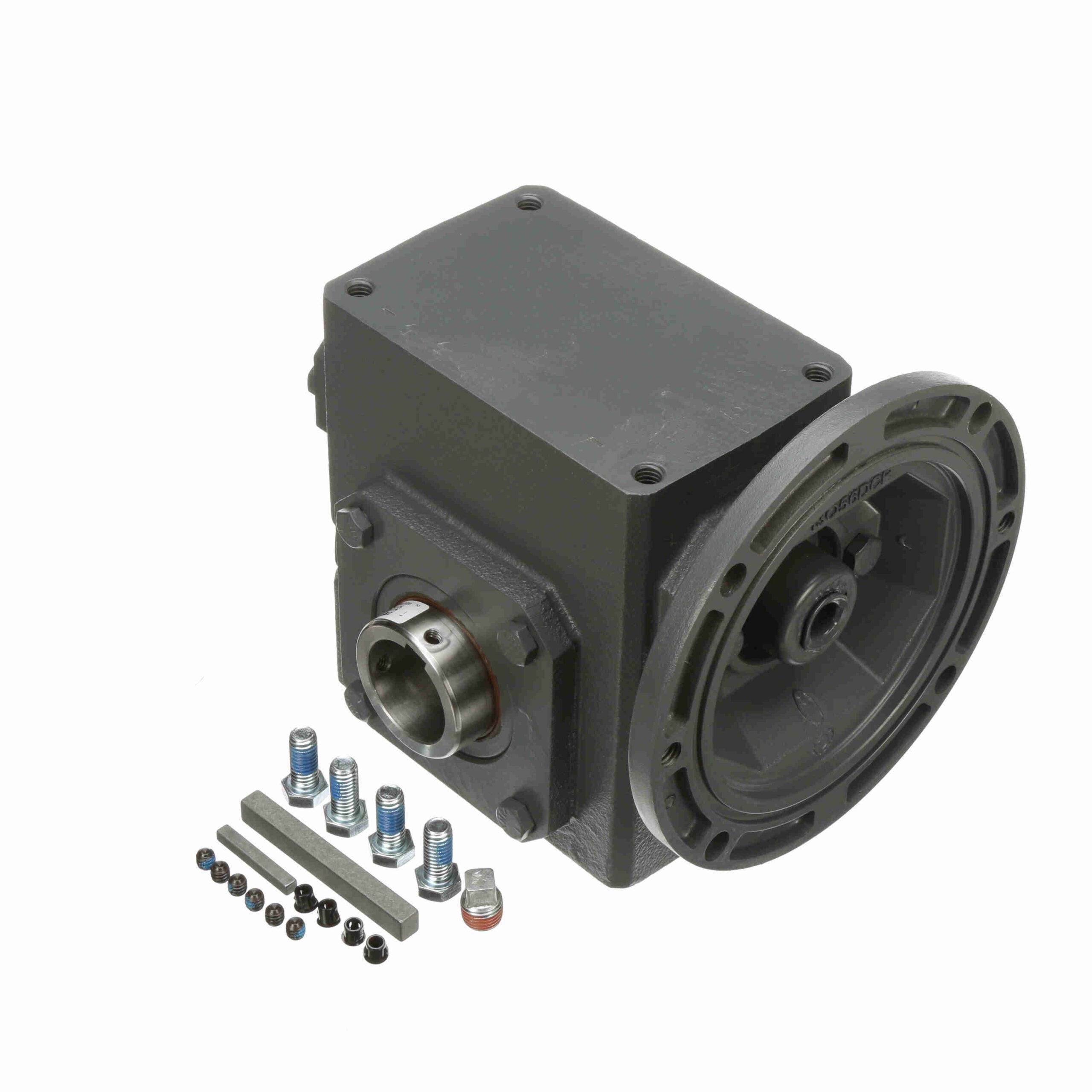

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56H40 104
$1,795.21
Out of stock
Out of stock
| Input Bore (C Face): | 0.625 | Input Keyway (C Face): | 3/16 x 3/32 |
|---|---|---|---|
| Reducer Style: | Standard | Input Speed: | 1750 |
| Efficiency: | 80 | Thrust Rating - output shaft: | 2091 |
| Motor Frame Size: | 56C | Ratio: | 40:1 |
| Input HP @ 1750 RPM: | 1.34 | Product Type: | Worm Speed Reducer |
| Output Diameter (in): | 1.250 in | No. of Gear Reductions: | Single |
| Center Distance (in): | 2.38 | Frame Size: | 56C |
| Gear Type: | Worm | Ratio Range: | 40:1 |
| Input Style: | C-Face Quill | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 1433 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb |
| Output Shaft: | Hollow Bore | UPC: | 6, 62289E+11 |
| Weight: | 47.00 LB |
