- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22316 GMEX W33

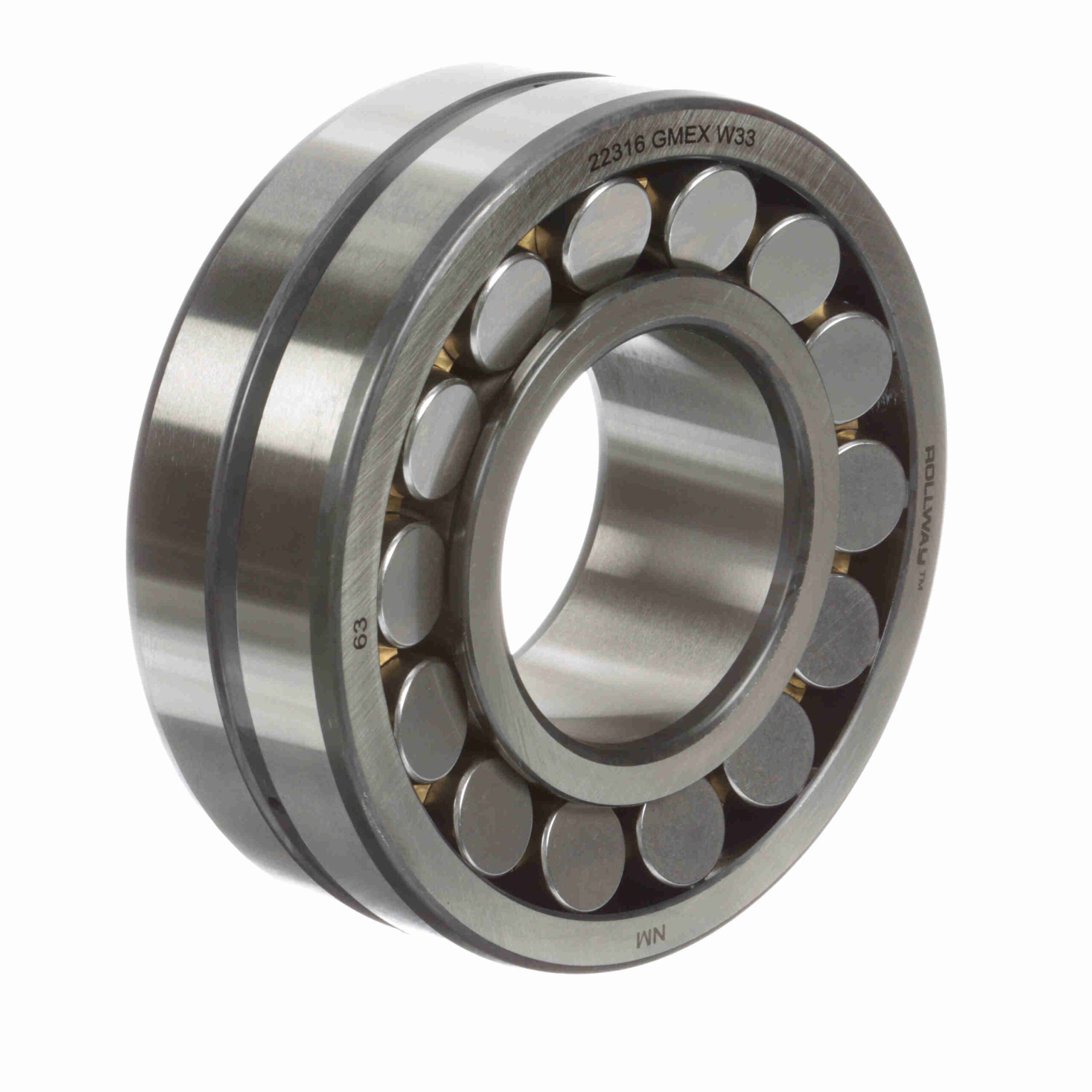

Rollway Radial Spherical Roller Bearing – Straight Bore – 22316 GMEX W33
$475.59
Out of stock
Out of stock
| Cage Material: | Brass | Angular Misalignment: | 2° |
|---|---|---|---|
| Series: | 22300 | Bore Type: | Straight |
| Radial Clearance: | C0 | Seal Type: | Unsealed |
| Number of Rows: | 2 | Rolling Element: | Spherical Roller |
| Misalignment: | Yes | Material: | 52100 Bearing Steel |
| Static Load Rating (kN): | 476 kN | Speed (Max) Oil (RPM): | 3, 400 rpm |
| Speed (Max) Grease (RPM): | 2, 550 rpm | Platform: | Spherical Radial |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Sealed: | None | Dynamic Load Rating (kN): | 476 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092662 |
| Weight: | 14.06 LB | Packaged Length: | 7.6 Inches |
| Packaged Width: | 8.2 Inches | Packaged Height: | 2.7 Inches |
| Country of Origin: | China |
